Compression spring VD-339L-10 Stainless steel Ø 4.5 x 45.5 x 160 mm

Scaled prices - Compression spring VD-339L-10

Quantity	Single price [EUR]
1	13.5300 EUR
2	10.7800 EUR
3	6.2300 EUR
7	4.2800 EUR
17	2.7100 EUR
37	2.3100 EUR
75	2.2200 EUR
125	2.2200 EUR
175	2.2200 EUR
250	2.2200 EUR
350	2.2200 EUR

Compression spring Buy

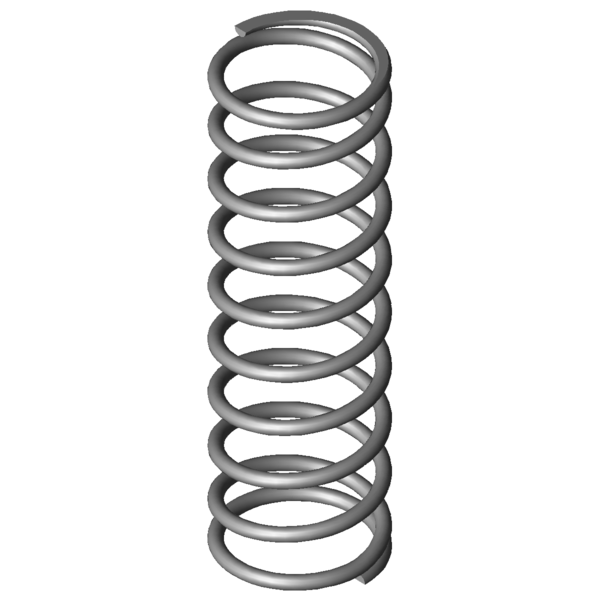

Product image Compression spring VD-339L-10

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring VD-339L-10

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1	-	N	prestressed spring force
L1	-	mm	Prestressed spring length
s1	-	mm	Prestressed spring deflection
F2	-	N	Loaded spring force
L2	-	mm	Loaded spring length
s2	-	mm	Loaded spring deflection
d	4.5	mm	Wire diameter
Di	-	mm	Inner coil diameter
D	45.5	mm	Mean coil diameter
De	50	mm	Outer coil diameter
Dd	39.7	mm	maximum diameter of mandrel
Dh	52	mm	minimum diameter of bush
L0	160	mm	unstressed spring length
Lk		mm	buckling length
Fn	461.841	N	maximum force in static use
Ln	56.94	mm	Minimum length in static use
sn	103.06	mm	Maximum spring deflection in static use
Fndyn	440.154	N	maximum force in dynamic use
Lndyn	61.78	mm	Minimum length in dynamic use
shdyn	27.83	mm	Maximum stroke in dynamic use
S	18.294	mm	pitch of spring
n	8.5	pc.	number of active coils
nt	-	pc.	total number of coils
R	4.481	N/mm	Spring rate
Weight	188.6887	g	weight of one spring
Fntol	28.4	N	(+/-) tolerance of maximum force in static use
Fndtol	27.97	N	(+/-) tolerance of maximum dynamic force
Detol	0.8	mm	(+/-) tolerances of outer coil diameter
L0tol	3.99	mm	(+/-) tolerance of unstressed spring length
Price group	#AG	-	price group
F1tol	-	N	(+/-) tolerance of prestressed spring force
F2tol	-	N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring VD-339L-10 Stainless steel Ø 4.5 x 45.5 x 160 mm

Datasheet download pdf file

Metal spring characteristic Compression spring VD-339L-10 Stainless steel Ø 4.5 x 45.5 x 160 mm

Metal spring characteristic download pdf file

CAD data Compression spring VD-339L-10 Stainless steel Ø 4.5 x 45.5 x 160 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring VD-339L-10 Stainless steel Ø 4.5 x 45.5 x 160 mm

force-path-calculation Compression spring VD-339L-10

Inquiry formular Compression spring VD-339L-10 Stainless steel Ø 4.5 x 45.5 x 160 mm

Inquiry formular Compression spring VD-339L-10

Similar compression springs to Compression spring VD-339L-10 Stainless steel Ø 4.5 x 45.5 x 160 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
VD-339L-10	1.4310	4.5	50	160	461.841	56.94	103.06	8.5	4.481	100.0 \| 100.0 \| 100.0 \| 100.0
D-339L-10	EN 10270-1	4.5	50	160	537.714	56.94	103.06	8.5	5.218	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
VD-263V-20	46	136	0.755	1.4310	82.769	26.37	109.63	50.1 \| 77.5 \| 56.0 \| 16.8
VD-288H	48	161	1.059	1.4310	140.243	28.56	132.44	54.5 \| 85.9 \| 54.1 \| 23.6
VD-289C-03	48	176	1.2	1.4310	158.083	44.32	131.68	56.3 \| 86.0 \| 56.2 \| 26.8
VD-289A	55	180	1.2	1.4310	176.817	32.68	147.32	54.8 \| 83.6 \| 54.1 \| 26.8
VD-313E-12	48	160	2.099	1.4310	240.42	45.45	114.55	69.9 \| 92.0 \| 71.0 \| 46.8
VD-318D	49	156	2.892	1.4310	301.184	51.85	104.15	80.5 \| 94.8 \| 82.1 \| 64.5
VD-313H	40	155	3.208	1.4310	336.599	50.06	104.94	80.9 \| 85.6 \| 85.5 \| 71.6
VD-315	54	150	3.258	1.4310	367.014	37.36	112.64	83.3 \| 91.7 \| 85.5 \| 72.7
VD-339M	50	187	4.01	1.4310	498.87	62.58	124.42	90.8 \| 95.2 \| 87.7 \| 89.5
VD-321	44	160	4.118	1.4310	450.882	50.5	109.5	93.4 \| 92.3 \| 95.9 \| 91.9
VD-339L-10	50	160	4.481	1.4310	461.841	56.94	103.06	100.0 \| 100.0 \| 100.0 \| 100.0
VD-346A	55	150	5.147	1.4310	447.151	63.13	86.88	89.7 \| 91.6 \| 90.6 \| 87.1
VD-339N-06	41	165	5.903	1.4310	522.707	76.45	88.55	85.3 \| 93.0 \| 87.1 \| 75.9
VD-364R-43	54	135	6.072	1.4310	236.535	96.04	38.96	68.0 \| 85.8 \| 44.5 \| 73.8
VD-364J-04	56	175	7.314	1.4310	780.11	68.34	106.66	75.6 \| 87.5 \| 77.9 \| 61.3
VD-364J-24	48	185	8.344	1.4310	769.33	92.8	92.2	72.2 \| 88.1 \| 74.7 \| 53.7
VD-352	45	140	10.053	1.4310	795.884	60.83	79.17	67.1 \| 89.2 \| 67.4 \| 44.6
VD-364J-23	48	135	12.271	1.4310	838.71	66.65	68.35	61.5 \| 87.4 \| 60.7 \| 36.5
VD-377	56.3	175	12.973	1.4310	1277.006	76.56	98.44	61.4 \| 83.9 \| 65.8 \| 34.5
VD-364R-83	46	150	14.175	1.4310	715.838	99.5	50.5	58.4 \| 86.9 \| 56.8 \| 31.6
VD-382A	46.3	152	15.954	1.4310	649.342	111.3	40.7	56.6 \| 86.3 \| 55.3 \| 28.1
VD-382	46.3	135	25.338	1.4310	1526.786	74.74	60.26	48.3 \| 82.8 \| 44.4 \| 17.7
VD-389M	50	145	27.814	1.4310	1504.374	90.91	54.09	47.6 \| 85.0 \| 41.6 \| 16.1
VD-407	58	160	33.732	1.4310	2199.838	94.78	65.22	45.4 \| 80.8 \| 42.1 \| 13.3
VD-406A	58	147	33.732	1.4310	1761.325	94.78	52.22	43.3 \| 78.1 \| 38.4 \| 13.3
VD-389N-03	46	152	35.417	1.4310	2044.978	94.26	57.74	45.2 \| 83.8 \| 39.3 \| 12.7

Number of similar metal springs: 25

Customs tariff number: 73202081; Compression spring VD-339L-10

Country of origin: DE, German; Compression spring VD-339L-10
