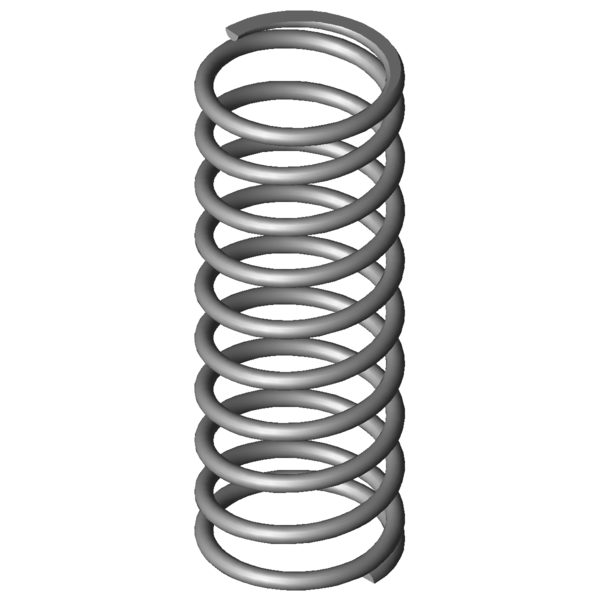

Home » Products » Compression springs » vd-346a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-346A Stainless steel Ø 5 x 50 x 150 mm Scaled prices - Compression spring VD-346A Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.2200 EUR 175 2.2200 EUR 250 2.2200 EUR 350 2.2200 EUR Compression spring Buy Product image Compression spring VD-346A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-346A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 50 mm Mean coil diameter De 55 mm Outer coil diameter Dd 43.7 mm maximum diameter of mandrel Dh 56.8 mm minimum diameter of bush L0 150 mm unstressed spring length Lk mm buckling length Fn 447.151 N maximum force in static use Ln 63.13 mm Minimum length in static use sn 86.88 mm Maximum spring deflection in static use Fndyn 419.743 N maximum force in dynamic use Lndyn 68.45 mm Minimum length in dynamic use shdyn 44.22 mm Maximum stroke in dynamic use S 17.059 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 5.147 N/mm Spring rate Weight 255.9879 g weight of one spring Fntol 32.28 N (+/-) tolerance of maximum force in static use Fndtol 31.8 N (+/-) tolerance of maximum dynamic force Detol 0.8 mm (+/-) tolerances of outer coil diameter L0tol 4.08 mm (+/-) tolerance of unstressed spring length Price group #AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-346A Stainless steel Ø 5 x 50 x 150 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-346A Stainless steel Ø 5 x 50 x 150 mm Metal spring characteristic download pdf file CAD data Compression spring VD-346A Stainless steel Ø 5 x 50 x 150 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-346A Stainless steel Ø 5 x 50 x 150 mm force-path-calculation Compression spring VD-346A Inquiry formular Compression spring VD-346A Stainless steel Ø 5 x 50 x 150 mm Inquiry formular Compression spring VD-346A Similar compression springs to Compression spring VD-346A Stainless steel Ø 5 x 50 x 150 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-346A 1.4310 5 55 150 447.151 63.13 86.88 8.5 5.147 100.0 | 100.0 | 100.0 | 100.0 D-346A EN 10270-1 5 55 150 520.611 63.13 86.88 8.5 5.993 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263V-20 46 136 0.755 1.4310 82.769 26.37 109.63 46.1 | 74.8 | 48.9 | 14.7 VD-288H 48 161 1.059 1.4310 140.243 28.56 132.44 49.3 | 78.8 | 48.5 | 20.6 VD-289A 55 180 1.2 1.4310 176.817 32.68 147.32 51.7 | 82.4 | 49.3 | 23.3 VD-289 55 117 1.886 1.4310 177.057 23.12 93.88 61.1 | 80.7 | 66.1 | 36.6 VD-313E-12 48 160 2.099 1.4310 240.42 45.45 114.55 63.3 | 84.3 | 64.8 | 40.8 VD-318D 49 156 2.892 1.4310 301.184 51.85 104.15 73.3 | 88.4 | 75.4 | 56.2 VD-315 54 150 3.258 1.4310 367.014 37.36 112.64 78.5 | 92.7 | 79.6 | 63.3 VD-339J-22 58 120 4.26 1.4310 334.429 41.5 78.5 84.5 | 88.3 | 82.6 | 82.8 VD-339L-10 50 160 4.481 1.4310 461.841 56.94 103.06 89.7 | 91.6 | 90.6 | 87.1 VD-346A 55 150 5.147 1.4310 447.151 63.13 86.88 100.0 | 100.0 | 100.0 | 100.0 VD-364R-43 54 135 6.072 1.4310 236.535 96.04 38.96 75.4 | 92.5 | 48.9 | 84.8 VD-364J-04 56 175 7.314 1.4310 780.11 68.34 106.66 77.1 | 91.6 | 69.4 | 70.4 VD-346 55 130 7.955 1.4310 681.108 44.38 85.63 80.8 | 95.6 | 82.1 | 64.7 VD-364G 60 128 8.993 1.4310 712.875 48.73 79.27 74.5 | 89.3 | 77.0 | 57.2 VD-352 45 140 10.053 1.4310 795.884 60.83 79.17 72.2 | 91.7 | 73.7 | 51.2 VD-364J-03 56 117 11.304 1.4310 778.262 48.15 68.85 67.6 | 89.0 | 68.4 | 45.5 VD-364J-23 48 135 12.271 1.4310 838.71 66.65 68.35 65.8 | 89.4 | 66.0 | 41.9 VD-376A 56.3 140 12.973 1.4310 822.95 76.56 63.44 64.5 | 90.1 | 63.7 | 39.7 VD-377 56.3 175 12.973 1.4310 1277.006 76.56 98.44 63.0 | 87.6 | 61.6 | 39.7 VD-364R-83 46 150 14.175 1.4310 715.838 99.5 50.5 61.9 | 89.0 | 60.3 | 36.3 VD-382A 46.3 152 15.954 1.4310 649.342 111.3 40.7 59.2 | 87.4 | 57.9 | 32.3 VD-376 56.3 115 20.049 1.4310 1223.227 53.99 61.01 54.5 | 84.6 | 53.4 | 25.7 VD-382 46.3 135 25.338 1.4310 1526.786 74.74 60.26 51.4 | 84.5 | 49.3 | 20.3 VD-389M 50 145 27.814 1.4310 1504.374 90.91 54.09 50.3 | 86.3 | 46.0 | 18.5 VD-406A 58 147 33.732 1.4310 1761.325 94.78 52.22 47.7 | 85.1 | 42.7 | 15.3 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring VD-346A Country of origin: DE, German; Compression spring VD-346A Product image - Compression springs VD-346A QR-Code: Compression spring VD-346A
