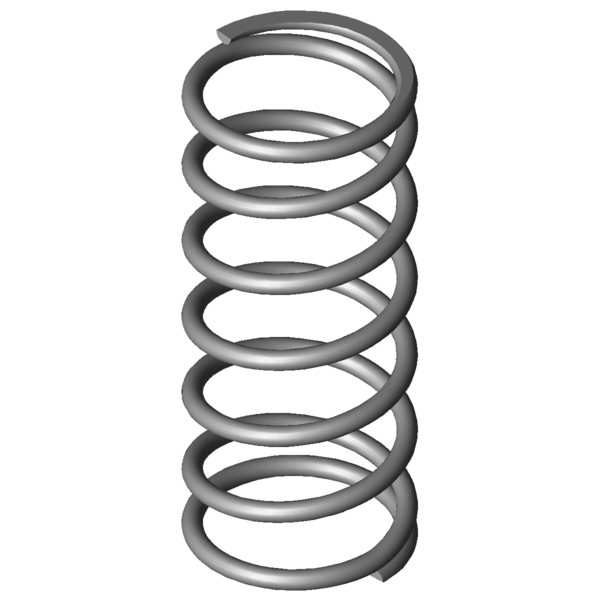

Home » Products » Compression springs » vd-346 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-346 Stainless steel Ø 5 x 50 x 130 mm Scaled prices - Compression spring VD-346 Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.2200 EUR 175 2.2200 EUR 250 2.2200 EUR 350 2.2200 EUR Compression spring Buy Product image Compression spring VD-346 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-346 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 50 mm Mean coil diameter De 55 mm Outer coil diameter Dd 43.7 mm maximum diameter of mandrel Dh 56.8 mm minimum diameter of bush L0 130 mm unstressed spring length Lk mm buckling length Fn 681.108 N maximum force in static use Ln 44.38 mm Minimum length in static use sn 85.63 mm Maximum spring deflection in static use Fndyn 622.92 N maximum force in dynamic use Lndyn 51.69 mm Minimum length in dynamic use shdyn 14.18 mm Maximum stroke in dynamic use S 22.727 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 7.955 N/mm Spring rate Weight 182.8485 g weight of one spring Fntol 38.75 N (+/-) tolerance of maximum force in static use Fndtol 38.27 N (+/-) tolerance of maximum dynamic force Detol 0.8 mm (+/-) tolerances of outer coil diameter L0tol 2.9 mm (+/-) tolerance of unstressed spring length Price group #AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-346 Stainless steel Ø 5 x 50 x 130 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-346 Stainless steel Ø 5 x 50 x 130 mm Metal spring characteristic download pdf file CAD data Compression spring VD-346 Stainless steel Ø 5 x 50 x 130 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-346 Stainless steel Ø 5 x 50 x 130 mm force-path-calculation Compression spring VD-346 Inquiry formular Compression spring VD-346 Stainless steel Ø 5 x 50 x 130 mm Inquiry formular Compression spring VD-346 Similar compression springs to Compression spring VD-346 Stainless steel Ø 5 x 50 x 130 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-346 1.4310 5 55 130 681.108 44.38 85.63 5.5 7.955 80.8 | 95.6 | 82.1 | 64.7 D-346 EN 10270-1 5 55 130 793.004 44.38 85.63 5.5 9.261 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263V-20 46 136 0.755 1.4310 82.769 26.37 109.63 46.1 | 74.8 | 48.9 | 14.7 VD-289C-02 48 115 1.855 1.4310 155.966 30.93 84.07 65.6 | 83.2 | 70.0 | 43.5 VD-289 55 117 1.886 1.4310 177.057 23.12 93.88 66.8 | 87.8 | 68.3 | 44.3 VD-313B 60 122 2.341 1.4310 225.395 25.7 96.3 73.7 | 91.7 | 74.5 | 54.9 VD-290 43.2 125 2.607 1.4310 247.922 29.89 95.12 73.3 | 80.5 | 78.3 | 61.2 VD-313E-11 48 120 2.798 1.4310 235.382 35.89 84.11 78.4 | 87.6 | 81.9 | 65.7 VD-315 54 150 3.258 1.4310 367.014 37.36 112.64 78.5 | 92.7 | 79.6 | 63.3 VD-339J-22 58 120 4.26 1.4310 334.429 41.5 78.5 100.0 | 100.0 | 100.0 | 100.0 VD-346A 55 150 5.147 1.4310 447.151 63.13 86.88 100.0 | 100.0 | 100.0 | 100.0 VD-344A-14 60 120 5.976 1.4310 446.733 45.25 74.75 84.0 | 95.6 | 85.0 | 71.3 VD-364R-43 54 135 6.072 1.4310 236.535 96.04 38.96 72.6 | 87.4 | 60.2 | 70.2 VD-339L 50 112 6.926 1.4310 498.506 40.02 71.98 78.0 | 93.2 | 79.4 | 61.5 VD-346 55 130 7.955 1.4310 681.108 44.38 85.63 72.1 | 92.4 | 70.4 | 53.6 VD-364G 60 128 8.993 1.4310 712.875 48.73 79.27 70.4 | 90.7 | 73.0 | 47.4 VD-351B 45 130 9.494 1.4310 628.337 63.82 66.18 87.5 | 93.9 | 84.8 | 83.8 VD-364J-03 56 117 11.304 1.4310 778.262 48.15 68.85 65.0 | 92.0 | 65.3 | 37.7 VD-364J-23 48 135 12.271 1.4310 838.71 66.65 68.35 60.9 | 84.5 | 63.5 | 34.7 VD-364R-71 61 120 12.393 1.4310 836.5 52.5 67.5 62.5 | 90.0 | 63.0 | 34.4 VD-376A 56.3 140 12.973 1.4310 822.95 76.56 63.44 59.4 | 84.7 | 60.7 | 32.8 VD-376 56.3 115 20.049 1.4310 1223.227 53.99 61.01 54.0 | 88.1 | 52.5 | 21.2 VD-382 46.3 135 25.338 1.4310 1526.786 74.74 60.26 51.4 | 84.5 | 49.3 | 20.3 VD-389M 50 145 27.814 1.4310 1504.374 90.91 54.09 50.3 | 86.3 | 46.0 | 18.5 VD-406A 58 147 33.732 1.4310 1761.325 94.78 52.22 47.7 | 85.1 | 42.7 | 15.3 VD-406 58 110 52.131 1.4310 2242.769 66.98 43.02 45.4 | 80.6 | 40.3 | 15.3 VD-414M-02 57 138 64.888 1.4310 2448.094 100.27 37.73 43.4 | 82.1 | 35.9 | 12.3 VD-412 48 135 65.882 1.4310 2744 93.35 41.65 43.6 | 82.0 | 36.7 | 12.1 VD-409B 50 110 74.423 1.4310 2578.764 75.35 34.65 41.2 | 79.3 | 33.4 | 10.7 VD-414AF 42 130 107.278 1.4310 3883.478 93.8 36.2 39.0 | 79.6 | 29.9 | 7.4 Number of similar metal springs: 27 Customs tariff number: 73202081; Compression spring VD-346 Country of origin: DE, German; Compression spring VD-346 Product image - Compression springs VD-346 QR-Code: Compression spring VD-346
