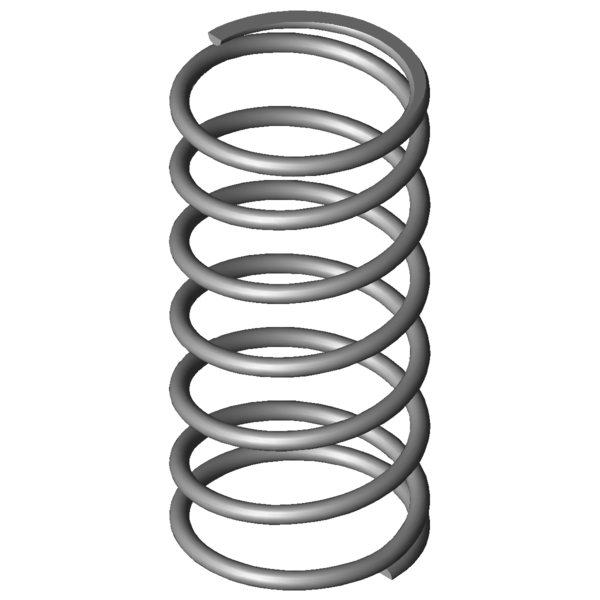

Home » Products » Compression springs » vd-339j-22 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339J-22 Stainless steel Ø 4.5 x 53.5 x 120 mm Scaled prices - Compression spring VD-339J-22 Quantity Single price [EUR] 1 14.5700 EUR 2 11.6100 EUR 3 7.2800 EUR 7 5.4200 EUR 17 3.8200 EUR 37 3.3100 EUR 75 3.2400 EUR 125 3.2400 EUR 175 3.2400 EUR 250 3.2400 EUR 350 3.2400 EUR Compression spring Buy Product image Compression spring VD-339J-22 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339J-22 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 53.5 mm Mean coil diameter De 58 mm Outer coil diameter Dd 47.8 mm maximum diameter of mandrel Dh 59.3 mm minimum diameter of bush L0 120 mm unstressed spring length Lk mm buckling length Fn 334.429 N maximum force in static use Ln 41.5 mm Minimum length in static use sn 78.5 mm Maximum spring deflection in static use Fndyn 317.814 N maximum force in dynamic use Lndyn 45.4 mm Minimum length in dynamic use shdyn 35 mm Maximum stroke in dynamic use S 21 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 4.26 N/mm Spring rate Weight 158.4748 g weight of one spring Fntol 25.3 N (+/-) tolerance of maximum force in static use Fndtol 25.2 N (+/-) tolerance of maximum dynamic force Detol 1 mm (+/-) tolerances of outer coil diameter L0tol 4.5 mm (+/-) tolerance of unstressed spring length Price group #AL - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339J-22 Stainless steel Ø 4.5 x 53.5 x 120 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339J-22 Stainless steel Ø 4.5 x 53.5 x 120 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339J-22 Stainless steel Ø 4.5 x 53.5 x 120 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339J-22 Stainless steel Ø 4.5 x 53.5 x 120 mm force-path-calculation Compression spring VD-339J-22 Inquiry formular Compression spring VD-339J-22 Stainless steel Ø 4.5 x 53.5 x 120 mm Inquiry formular Compression spring VD-339J-22 Similar compression springs to Compression spring VD-339J-22 Stainless steel Ø 4.5 x 53.5 x 120 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339J-22 1.4310 4.5 58 120 334.429 41.5 78.5 5.5 4.26 100.0 | 100.0 | 100.0 | 100.0 D-339J-22 EN 10270-1 4.5 58 120 389.4 41.5 78.5 5.5 4.96 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-289C-02 48 115 1.855 1.4310 155.966 30.93 84.07 65.6 | 83.2 | 70.0 | 43.5 VD-289 55 117 1.886 1.4310 177.057 23.12 93.88 66.8 | 87.8 | 68.3 | 44.3 VD-313B 60 122 2.341 1.4310 225.395 25.7 96.3 73.7 | 91.7 | 74.5 | 54.9 VD-290 43.2 125 2.607 1.4310 247.922 29.89 95.12 73.3 | 80.5 | 78.3 | 61.2 VD-313E-11 48 120 2.798 1.4310 235.382 35.89 84.11 78.4 | 87.6 | 81.9 | 65.7 VD-339J-22 58 120 4.26 1.4310 334.429 41.5 78.5 100.0 | 100.0 | 100.0 | 100.0 VD-318C 49 103 4.469 1.4310 297.766 36.38 66.62 89.6 | 86.4 | 87.0 | 95.3 VD-314 54 99 5.12 1.4310 370.272 26.68 72.32 79.6 | 86.7 | 73.9 | 78.2 VD-344A-14 60 120 5.976 1.4310 446.733 45.25 74.75 84.0 | 95.6 | 85.0 | 71.3 VD-364R-43 54 135 6.072 1.4310 236.535 96.04 38.96 72.6 | 87.4 | 60.2 | 70.2 VD-340 68 120 6.249 1.4310 541.039 33.42 86.58 78.7 | 91.8 | 76.2 | 68.2 VD-339L 50 112 6.926 1.4310 498.506 40.02 71.98 78.0 | 93.2 | 79.4 | 61.5 VD-346 55 130 7.955 1.4310 681.108 44.38 85.63 72.1 | 92.4 | 70.4 | 53.6 VD-345A 55 100 7.955 1.4310 442.472 44.38 55.63 70.4 | 87.3 | 73.5 | 50.3 VD-364G 60 128 8.993 1.4310 712.875 48.73 79.27 70.4 | 90.7 | 73.0 | 47.4 VD-364J-03 56 117 11.304 1.4310 778.262 48.15 68.85 65.0 | 92.0 | 65.3 | 37.7 VD-364J-23 48 135 12.271 1.4310 838.71 66.65 68.35 60.9 | 84.5 | 63.5 | 34.7 VD-364R-71 61 120 12.393 1.4310 836.5 52.5 67.5 62.5 | 90.0 | 63.0 | 34.4 VD-376A 56.3 140 12.973 1.4310 822.95 76.56 63.44 59.4 | 84.7 | 60.7 | 32.8 VD-376 56.3 115 20.049 1.4310 1223.227 53.99 61.01 54.0 | 88.1 | 52.5 | 21.2 VD-375A 56.3 94 20.049 1.4310 802.193 53.99 40.01 50.0 | 82.3 | 46.3 | 21.2 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring VD-339J-22 Country of origin: DE, German; Compression spring VD-339J-22 Product image - Compression springs VD-339J-22 QR-Code: Compression spring VD-339J-22
