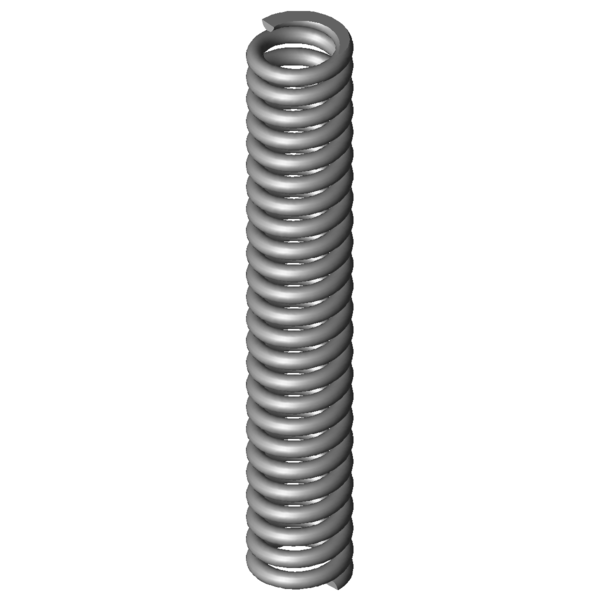

Home » Products » Compression springs » vd-364a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-364A Stainless steel Ø 5 x 25 x 180 mm Scaled prices - Compression spring VD-364A Quantity Single price [EUR] 1 14.1400 EUR 2 11.2600 EUR 3 6.8900 EUR 7 4.8200 EUR 17 3.2500 EUR 37 2.7900 EUR 75 2.7600 EUR 125 2.7600 EUR 175 2.7600 EUR 250 2.7600 EUR 350 2.7600 EUR Compression spring Buy Product image Compression spring VD-364A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-364A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 25 mm Mean coil diameter De 30 mm Outer coil diameter Dd 19.1 mm maximum diameter of mandrel Dh 31 mm minimum diameter of bush L0 180 mm unstressed spring length Lk 134.9 mm buckling length Fn 653.819 N maximum force in static use Ln 137.97 mm Minimum length in static use sn 42.03 mm Maximum spring deflection in static use Fndyn 533.4 N maximum force in dynamic use Lndyn 145.71 mm Minimum length in dynamic use shdyn 33.02 mm Maximum stroke in dynamic use S 7.778 mm pitch of spring n 22.5 pc. number of active coils nt pc. total number of coils R 15.556 N/mm Spring rate Weight 298.6526 g weight of one spring Fntol 78.53 N (+/-) tolerance of maximum force in static use Fndtol 76.42 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 3.71 mm (+/-) tolerance of unstressed spring length Price group #AJ - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-364A Stainless steel Ø 5 x 25 x 180 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-364A Stainless steel Ø 5 x 25 x 180 mm Metal spring characteristic download pdf file CAD data Compression spring VD-364A Stainless steel Ø 5 x 25 x 180 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-364A Stainless steel Ø 5 x 25 x 180 mm force-path-calculation Compression spring VD-364A Inquiry formular Compression spring VD-364A Stainless steel Ø 5 x 25 x 180 mm Inquiry formular Compression spring VD-364A Similar compression springs to Compression spring VD-364A Stainless steel Ø 5 x 25 x 180 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-364A 1.4310 5 30 180 653.819 137.97 42.03 22.5 15.556 100.0 | 100.0 | 100.0 | 100.0 D-364A EN 10270-1 5 30 180 761.233 137.97 42.03 22.5 18.111 92.9 | 100.0 | 92.9 | 85.9 D-364 EN 10270-1 5 30 180 1426.938 115.22 64.78 18.5 22.027 75.3 | 100.0 | 55.4 | 70.6 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-266 34.5 170 1.227 1.4310 159.653 39.9 130.1 37.8 | 77.1 | 28.4 | 7.9 VD-297A 35.2 190 1.514 1.4310 165.881 80.4 109.6 41.0 | 81.3 | 31.9 | 9.7 VD-288O 30 189 1.724 1.4310 223.32 59.48 129.52 42.7 | 83.7 | 33.3 | 11.1 VD-272 27.5 165 1.75 1.4310 203.875 48.5 116.5 40.9 | 77.8 | 33.6 | 11.2 VD-288Z-23 33 157 2.1 1.4310 218.663 52.88 104.13 43.3 | 79.4 | 36.9 | 13.5 VD-297 35.2 190 2.24 1.4310 299.264 56.4 133.6 44.8 | 81.3 | 38.6 | 14.4 VD-303A 28.2 200 2.61 1.4310 281.357 92.19 107.81 46.8 | 82.7 | 41.0 | 16.8 VD-288Z-45 27 170 2.771 1.4310 270.542 72.38 97.62 47.2 | 81.5 | 42.2 | 17.8 VD-303 28.2 200 3.174 1.4310 390.601 76.94 123.06 50.0 | 82.7 | 46.9 | 20.4 VD-334A 29 185 6.372 1.4310 463.381 112.27 72.73 65.5 | 91.3 | 64.3 | 41.0 VD-334 29 185 7.749 1.4310 707.222 93.74 91.26 70.1 | 91.3 | 69.3 | 49.8 VD-339R 32 154 11.131 1.4310 716.467 89.63 64.37 79.9 | 89.8 | 78.3 | 71.6 VD-359A-08 34 186 12.457 1.4310 902.634 113.54 72.46 80.1 | 95.0 | 65.2 | 80.1 VD-359A-07 34 166 14.014 1.4310 896.405 102.04 63.96 84.3 | 93.5 | 69.3 | 90.1 VD-364A 30 180 15.556 1.4310 653.819 137.97 42.03 100.0 | 100.0 | 100.0 | 100.0 VD-364 30 180 18.919 1.4310 1225.591 115.22 64.78 80.4 | 100.0 | 59.1 | 82.2 VD-363A 30 160 21.212 1.4310 1191.193 103.84 56.16 78.2 | 96.3 | 64.9 | 73.3 VD-364R-18 28 170 37.996 1.4310 1691.616 125.48 44.52 66.8 | 92.9 | 66.5 | 40.9 VD-389R 34 166 68.862 1.4310 2081.596 135.77 30.23 52.7 | 84.0 | 51.7 | 22.6 VD-389AA 30 150 83.002 1.4310 2612.669 118.52 31.48 51.8 | 86.8 | 50.0 | 18.7 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring VD-364A Country of origin: DE, German; Compression spring VD-364A Product image - Compression springs VD-364A QR-Code: Compression spring VD-364A
