Compression spring VD-234N-10 Stainless steel Ø 2 x 28 x 170 mm

Scaled prices - Compression spring VD-234N-10

Quantity	Single price [EUR]
1	5.5300 EUR
2	3.9000 EUR
3	3.7100 EUR
7	2.9000 EUR
17	1.4300 EUR
37	1.1000 EUR
75	0.9400 EUR
125	0.6511 EUR
175	0.6135 EUR
250	0.5760 EUR
350	0.5306 EUR
450	0.4927 EUR

Compression spring Buy

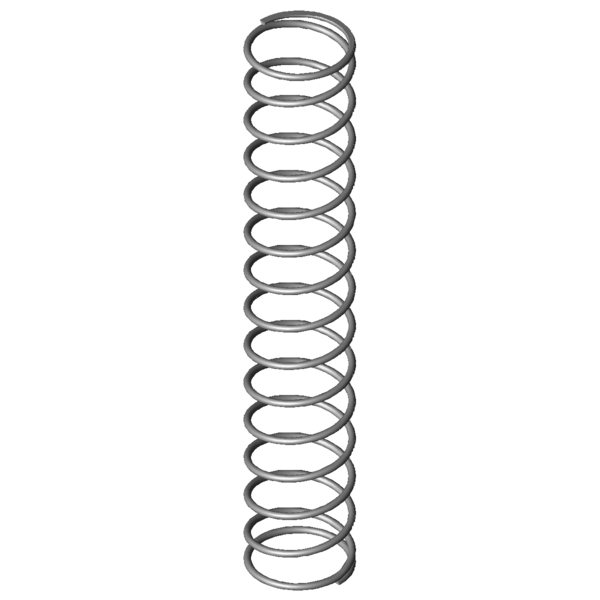

Product image Compression spring VD-234N-10

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring VD-234N-10

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	2	mm	Wire diameter
Di		mm	Inner coil diameter
D	28	mm	Mean coil diameter
De	30	mm	Outer coil diameter
Dd	25.3	mm	maximum diameter of mandrel
Dh	31.3	mm	minimum diameter of bush
L0	170	mm	unstressed spring length
Lk	100.54	mm	buckling length
Fn	60.64	N	maximum force in static use
Ln	41.64	mm	Minimum length in static use
sn	128.36	mm	Maximum spring deflection in static use
Fndyn	58.125	N	maximum force in dynamic use
Lndyn	46.96	mm	Minimum length in dynamic use
shdyn	68.69	mm	Maximum stroke in dynamic use
S	12.444	mm	pitch of spring
n	13.5	pc.	number of active coils
nt		pc.	total number of coils
R	0.472	N/mm	Spring rate
Weight	33.8587	g	weight of one spring
Fntol	5.06	N	(+/-) tolerance of maximum force in static use
Fndtol	5.03	N	(+/-) tolerance of maximum dynamic force
Detol	0.5	mm	(+/-) tolerances of outer coil diameter
L0tol	8.79	mm	(+/-) tolerance of unstressed spring length
Price group	M	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring VD-234N-10 Stainless steel Ø 2 x 28 x 170 mm

Datasheet download pdf file

Metal spring characteristic Compression spring VD-234N-10 Stainless steel Ø 2 x 28 x 170 mm

Metal spring characteristic download pdf file

CAD data Compression spring VD-234N-10 Stainless steel Ø 2 x 28 x 170 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring VD-234N-10 Stainless steel Ø 2 x 28 x 170 mm

force-path-calculation Compression spring VD-234N-10

Inquiry formular Compression spring VD-234N-10 Stainless steel Ø 2 x 28 x 170 mm

Inquiry formular Compression spring VD-234N-10

Similar compression springs to Compression spring VD-234N-10 Stainless steel Ø 2 x 28 x 170 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
VD-234N-10	1.4310	2	30	170	60.64	41.64	128.36	13.5	0.472	100.0 \| 100.0 \| 100.0 \| 100.0
D-234N-10	EN 10270-1	2	30	170	70.602	41.64	128.36	13.5	0.55	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
VD-207JC	35.5	176	0.133	1.4310	19.776	26.85	149.15	57.6 \| 85.4 \| 59.3 \| 28.1
VD-207JH	34	164	0.152	1.4310	20.949	26	138	60.8 \| 86.6 \| 63.8 \| 32.1
VD-207JO	26.5	152	0.227	1.4310	27.344	31.44	120.56	67.3 \| 84.2 \| 69.5 \| 48.0
VD-207N	28	181	0.328	1.4310	50.807	26.13	154.87	80.6 \| 89.1 \| 83.3 \| 69.4
VD-232H	30	181	0.431	1.4310	65.662	28.71	152.29	91.4 \| 94.6 \| 88.3 \| 91.3
VD-234N-10	30	170	0.472	1.4310	60.64	41.64	128.36	100.0 \| 100.0 \| 100.0 \| 100.0
VD-268E	31	163	1.094	1.4310	125.006	48.7	114.3	67.6 \| 90.9 \| 68.8 \| 43.2
VD-272A	27.5	165	1.182	1.4310	120.83	62.81	102.19	64.8 \| 89.6 \| 64.9 \| 40.0
VD-266	34.5	170	1.227	1.4310	159.653	39.9	130.1	65.3 \| 89.0 \| 68.3 \| 38.5
VD-288N-10	30	135	1.62	1.4310	116.688	62.96	72.04	55.6 \| 83.6 \| 54.0 \| 29.2
VD-288K-13	33	150	1.627	1.4310	165.285	48.42	101.58	56.8 \| 83.5 \| 57.9 \| 29.0
VD-288O	30	189	1.724	1.4310	223.32	59.48	129.52	59.2 \| 87.1 \| 63.1 \| 27.4
VD-272	27.5	165	1.75	1.4310	203.875	48.5	116.5	58.9 \| 89.6 \| 60.3 \| 27.0
VD-288Z-23	33	157	2.1	1.4310	218.663	52.88	104.13	53.4 \| 83.3 \| 54.4 \| 22.5
VD-298E	33	148	2.568	1.4310	227.182	59.54	88.46	48.8 \| 80.2 \| 47.8 \| 18.4
VD-288Z-45	27	170	2.771	1.4310	270.542	72.38	97.62	50.6 \| 85.6 \| 49.2 \| 17.0
VD-288Z-34	28	142	3.629	1.4310	329.654	51.16	90.84	46.3 \| 81.2 \| 44.6 \| 13.0
VD-328A	36	170	3.695	1.4310	271.575	96.5	73.5	43.5 \| 77.8 \| 39.8 \| 12.8
VD-328	36	170	5.469	1.4310	558.906	67.8	102.2	43.9 \| 77.8 \| 45.2 \| 8.6
VD-334A	29	185	6.372	1.4310	463.381	112.27	72.73	40.6 \| 79.5 \| 34.9 \| 7.4
VD-334	29	185	7.749	1.4310	707.222	93.74	91.26	41.8 \| 79.5 \| 39.8 \| 6.1

Number of similar metal springs: 20

Customs tariff number: 73202081; Compression spring VD-234N-10

Country of origin: DE, German; Compression spring VD-234N-10
