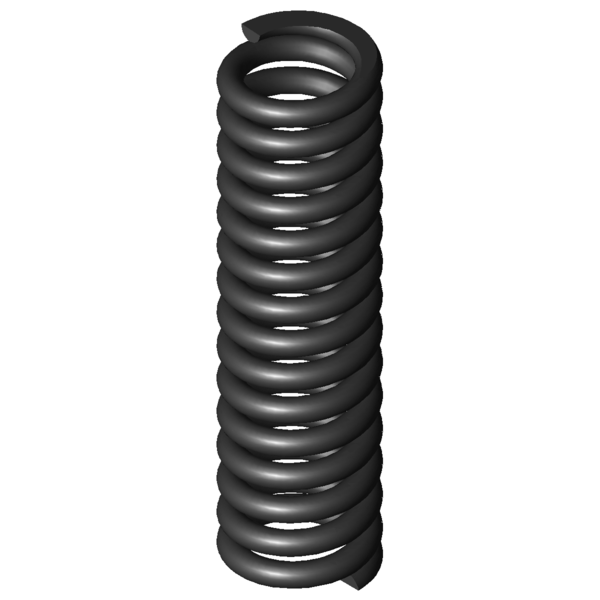

Home » Products » Compression springs » d-362a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-362A Spring steel Ø 5 x 25 x 110 mm Scaled prices - Compression spring D-362A Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 2.3700 EUR 37 2.0000 EUR 75 1.9100 EUR 125 1.8670 EUR 175 1.8647 EUR 250 1.8186 EUR 350 1.7923 EUR Compression spring Buy Product image Compression spring D-362A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-362A Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 25 mm Mean coil diameter De 30 mm Outer coil diameter Dd 19.1 mm maximum diameter of mandrel Dh 31 mm minimum diameter of bush L0 110 mm unstressed spring length Lk mm buckling length Fn 700.862 N maximum force in static use Ln 86.78 mm Minimum length in static use sn 23.22 mm Maximum spring deflection in static use Fndyn 560.841 N maximum force in dynamic use Lndyn 91.42 mm Minimum length in dynamic use shdyn 18.58 mm Maximum stroke in dynamic use S 7.778 mm pitch of spring n 13.5 pc. number of active coils nt pc. total number of coils R 30.185 N/mm Spring rate Weight 188.9435 g weight of one spring Fntol 81.17 N (+/-) tolerance of maximum force in static use Fndtol 79.07 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 2.34 mm (+/-) tolerance of unstressed spring length Price group AD - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-362A Spring steel Ø 5 x 25 x 110 mm Datasheet download pdf file Metal spring characteristic Compression spring D-362A Spring steel Ø 5 x 25 x 110 mm Metal spring characteristic download pdf file CAD data Compression spring D-362A Spring steel Ø 5 x 25 x 110 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-362A Spring steel Ø 5 x 25 x 110 mm force-path-calculation Compression spring D-362A Inquiry formular Compression spring D-362A Spring steel Ø 5 x 25 x 110 mm Inquiry formular Compression spring D-362A Similar compression springs to Compression spring D-362A Spring steel Ø 5 x 25 x 110 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-362A EN 10270-1 5 30 110 700.862 86.78 23.22 13.5 30.185 100.0 | 100.0 | 100.0 | 100.0 VD-362A 1.4310 5 30 110 601.968 86.78 23.22 13.5 25.926 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-288N 30 118 3.275 EN 10270-1 259.987 38.63 79.37 42.4 | 83.1 | 33.2 | 10.9 D-288Z-22 33 108 3.596 EN 10270-1 252.141 37.88 70.13 43.2 | 83.0 | 34.5 | 11.9 D-288Z-44 27 117 4.775 EN 10270-1 315.892 50.85 66.15 45.7 | 81.3 | 40.1 | 15.8 D-301A 28.2 113 5.064 EN 10270-1 279.165 57.88 55.12 47.6 | 85.1 | 41.0 | 16.8 D-288Z-33 28 97 6.213 EN 10270-1 374.616 36.71 60.29 49.0 | 80.5 | 46.0 | 20.6 D-301 28.2 94.5 8.043 EN 10270-1 447.924 38.81 55.69 53.6 | 81.3 | 52.8 | 26.6 D-333A 29 130 9.022 EN 10270-1 327.184 93.74 36.26 57.4 | 87.1 | 55.4 | 29.9 D-313J-10 28.6 109 9.523 EN 10270-1 507.228 55.73 53.27 59.4 | 88.8 | 58.0 | 31.5 D-313J-09 28.6 91.3 11.527 EN 10270-1 507.278 47.29 44.01 61.4 | 83.4 | 62.6 | 38.2 D-329B-05 30 125 12.365 EN 10270-1 756.24 63.84 61.16 65.2 | 89.3 | 65.3 | 41.0 D-333 29 130 13.353 EN 10270-1 855.528 65.93 64.07 63.5 | 87.1 | 59.1 | 44.2 D-334A-04 27 112 17.148 EN 10270-1 797.726 65.48 46.52 71.7 | 89.4 | 68.9 | 56.8 D-339Q 32 97.7 21.144 EN 10270-1 830.558 58.42 39.28 77.6 | 90.9 | 71.7 | 70.1 D-359A-04 34 107 26.107 EN 10270-1 1030.618 67.52 39.48 81.7 | 95.2 | 63.4 | 86.5 D-362A 30 110 30.185 EN 10270-1 700.862 86.78 23.22 100.0 | 100.0 | 100.0 | 100.0 D-363 30 125 32.6 EN 10270-1 1431.344 81.09 43.91 79.8 | 96.0 | 50.9 | 92.6 D-362 30 87.5 47.941 EN 10270-1 1397.785 58.34 29.16 73.7 | 93.2 | 64.9 | 63.0 D-364R-13 32 125 65.321 EN 10270-1 2296.468 89.84 35.16 61.0 | 88.4 | 48.3 | 46.2 D-364RB 28 125 66.03 EN 10270-1 1903.357 96.17 28.83 64.9 | 90.2 | 58.7 | 45.7 D-389Q 34 107 130.811 EN 10270-1 2402.474 88.63 18.37 54.3 | 85.6 | 54.1 | 23.1 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring D-362A Country of origin: DE, German; Compression spring D-362A Product image - Compression springs D-362A QR-Code: Compression spring D-362A
