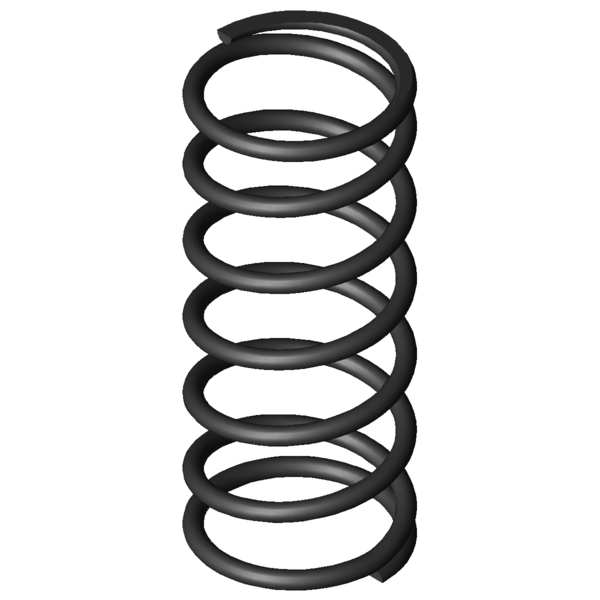

Home » Products » Compression springs » d-320 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-320 Spring steel Ø 4 x 40 x 105 mm Scaled prices - Compression spring D-320 Quantity Single price [EUR] 1 12.4800 EUR 2 9.9500 EUR 3 5.4200 EUR 7 3.2800 EUR 17 1.8300 EUR 37 1.5400 EUR 75 1.5100 EUR 125 1.4634 EUR 175 1.4586 EUR 250 1.4345 EUR 350 1.4116 EUR Compression spring Buy Product image Compression spring D-320 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-320 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 40 mm Mean coil diameter De 44 mm Outer coil diameter Dd 34.9 mm maximum diameter of mandrel Dh 45.8 mm minimum diameter of bush L0 105 mm unstressed spring length Lk mm buckling length Fn 514.932 N maximum force in static use Ln 35.5 mm Minimum length in static use sn 69.5 mm Maximum spring deflection in static use Fndyn 481.591 N maximum force in dynamic use Lndyn 40 mm Minimum length in dynamic use shdyn 24.22 mm Maximum stroke in dynamic use S 18.364 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 7.409 N/mm Spring rate Weight 93.6184 g weight of one spring Fntol 26.1 N (+/-) tolerance of maximum force in static use Fndtol 25.8 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 2.48 mm (+/-) tolerance of unstressed spring length Price group AB - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-320 Spring steel Ø 4 x 40 x 105 mm Datasheet download pdf file Metal spring characteristic Compression spring D-320 Spring steel Ø 4 x 40 x 105 mm Metal spring characteristic download pdf file CAD data Compression spring D-320 Spring steel Ø 4 x 40 x 105 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-320 Spring steel Ø 4 x 40 x 105 mm force-path-calculation Compression spring D-320 Inquiry formular Compression spring D-320 Spring steel Ø 4 x 40 x 105 mm Inquiry formular Compression spring D-320 Similar compression springs to Compression spring D-320 Spring steel Ø 4 x 40 x 105 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-320 EN 10270-1 4 44 105 514.932 35.5 69.5 5.5 7.409 100.0 | 100.0 | 100.0 | 100.0 VD-320 1.4310 4 44 105 442.273 35.5 69.5 5.5 6.364 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-263V-19 46 87 1.381 EN 10270-1 94.484 18.6 68.4 52.5 | 80.3 | 58.4 | 18.6 D-288X-21 48 103 1.646 EN 10270-1 120.655 29.72 73.28 56.5 | 88.3 | 59.1 | 22.2 D-288Y 41 92 1.671 EN 10270-1 83.216 42.2 49.8 50.6 | 85.3 | 43.9 | 22.6 D-288Z 40 100 1.715 EN 10270-1 96.284 43.85 56.15 53.3 | 87.0 | 49.7 | 23.1 D-263W 42 91.7 1.845 EN 10270-1 136.149 17.9 73.8 55.7 | 81.8 | 60.3 | 24.9 D-288G 48 104 1.937 EN 10270-1 162.332 20.21 83.79 56.8 | 86.9 | 57.2 | 26.1 D-289C-02 48 115 2.16 EN 10270-1 181.589 30.93 84.07 58.6 | 87.7 | 59.0 | 29.2 D-290 43.2 125 3.035 EN 10270-1 288.652 29.89 95.12 64.3 | 87.4 | 64.6 | 41.0 D-318C 49 103 5.204 EN 10270-1 346.684 36.38 66.62 82.6 | 96.0 | 81.6 | 70.2 D-313G 40 92.8 6.451 EN 10270-1 392.101 32.02 60.78 86.2 | 89.8 | 81.8 | 87.1 D-320 44 105 7.409 EN 10270-1 514.932 35.5 69.5 100.0 | 100.0 | 100.0 | 100.0 D-339L 50 112 8.063 EN 10270-1 580.403 40.02 71.98 91.6 | 90.2 | 92.6 | 91.9 D-339N-05 41 115 10.107 EN 10270-1 607.933 54.85 60.15 83.4 | 91.1 | 85.6 | 73.3 D-351A 45 110 13.265 EN 10270-1 731.563 54.85 55.15 73.9 | 91.1 | 74.9 | 55.9 D-351 45 95.5 18.089 EN 10270-1 951.641 42.89 52.61 65.1 | 89.6 | 64.9 | 41.0 D-364J-22 48 92 22.079 EN 10270-1 993.5 47 45 58.6 | 84.0 | 58.3 | 33.6 D-357 37 110 22.86 EN 10270-1 1157.61 59.36 50.64 59.2 | 86.5 | 58.7 | 32.4 D-364R-82 46 102 24.27 EN 10270-1 740.242 71.5 30.5 57.9 | 86.5 | 56.7 | 30.5 D-364M 38 113 28.585 EN 10270-1 1194.538 71.21 41.79 53.8 | 84.0 | 51.6 | 25.9 D-364J-10 42 102 29.494 EN 10270-1 1454.422 52.69 49.31 55.6 | 88.4 | 53.2 | 25.1 D-381A 46.3 100 29.501 EN 10270-1 745.094 74.74 25.26 54.1 | 84.6 | 52.7 | 25.1 D-364R-07 39 115 39.38 EN 10270-1 1839.045 68.3 46.7 49.8 | 83.0 | 47.6 | 18.8 D-364R-92 39 100 43.223 EN 10270-1 1278.781 70.41 29.59 47.4 | 83.5 | 41.4 | 17.1 D-364R-06 39 102 45.006 EN 10270-1 1845.233 61 41 48.3 | 84.9 | 43.4 | 16.5 D-381 46.3 90 45.592 EN 10270-1 1695.55 52.81 37.19 46.5 | 81.4 | 41.9 | 16.3 D-387 38.3 110 57.618 EN 10270-1 2098.612 73.58 36.42 44.4 | 82.0 | 38.5 | 12.9 Number of similar metal springs: 25 Customs tariff number: 73202081; Compression spring D-320 Country of origin: DE, German; Compression spring D-320 Product image - Compression springs D-320 QR-Code: Compression spring D-320
