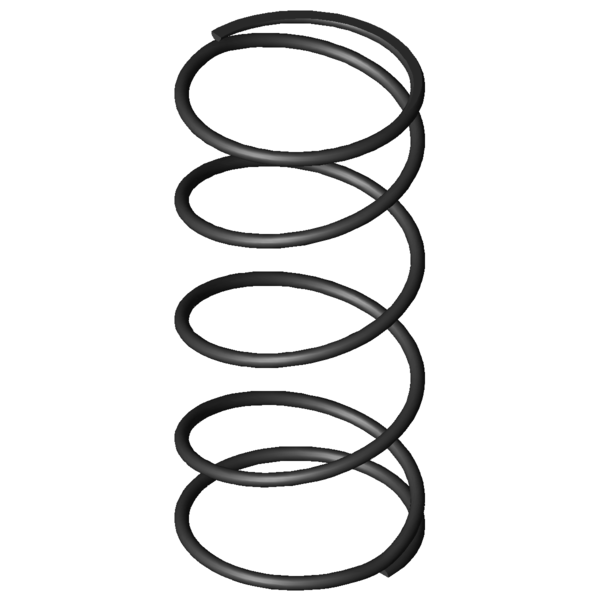

Home » Products » Compression springs » d-288g Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-288G Spring steel Ø 2.8 x 45.2 x 104 mm Scaled prices - Compression spring D-288G Quantity Single price [EUR] 1 5.1600 EUR 2 3.6400 EUR 3 3.4700 EUR 7 2.4200 EUR 17 1.1500 EUR 37 0.8500 EUR 75 0.6800 EUR 125 0.4859 EUR 175 0.4196 EUR 250 0.3695 EUR 350 0.3536 EUR 450 0.3284 EUR Compression spring Buy Product image Compression spring D-288G Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-288G Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.8 mm Wire diameter Di mm Inner coil diameter D 45.2 mm Mean coil diameter De 48 mm Outer coil diameter Dd 41.2 mm maximum diameter of mandrel Dh 50.9 mm minimum diameter of bush L0 104 mm unstressed spring length Lk mm buckling length Fn 162.332 N maximum force in static use Ln 20.21 mm Minimum length in static use sn 83.79 mm Maximum spring deflection in static use Fndyn 157.665 N maximum force in dynamic use Lndyn 22.62 mm Minimum length in dynamic use shdyn 32.52 mm Maximum stroke in dynamic use S 28.914 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 1.937 N/mm Spring rate Weight 38.0135 g weight of one spring Fntol 11.95 N (+/-) tolerance of maximum force in static use Fndtol 11.88 N (+/-) tolerance of maximum dynamic force Detol 0.9 mm (+/-) tolerances of outer coil diameter L0tol 4.91 mm (+/-) tolerance of unstressed spring length Price group J - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-288G Spring steel Ø 2.8 x 45.2 x 104 mm Datasheet download pdf file Metal spring characteristic Compression spring D-288G Spring steel Ø 2.8 x 45.2 x 104 mm Metal spring characteristic download pdf file CAD data Compression spring D-288G Spring steel Ø 2.8 x 45.2 x 104 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-288G Spring steel Ø 2.8 x 45.2 x 104 mm force-path-calculation Compression spring D-288G Inquiry formular Compression spring D-288G Spring steel Ø 2.8 x 45.2 x 104 mm Inquiry formular Compression spring D-288G Similar compression springs to Compression spring D-288G Spring steel Ø 2.8 x 45.2 x 104 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-288G EN 10270-1 2.8 48 104 162.332 20.21 83.79 3.5 1.937 100.0 | 100.0 | 100.0 | 100.0 VD-288G 1.4310 2.8 48 104 139.427 20.21 83.79 3.5 1.664 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-263V-19 46 87 1.381 EN 10270-1 94.484 18.6 68.4 76.9 | 89.6 | 69.9 | 71.3 D-288X-21 48 103 1.646 EN 10270-1 120.655 29.72 73.28 87.8 | 97.5 | 80.9 | 85.0 D-288Z 40 100 1.715 EN 10270-1 96.284 43.85 56.15 80.9 | 90.9 | 63.2 | 88.5 D-263W 42 91.7 1.845 EN 10270-1 136.149 17.9 73.8 89.8 | 88.3 | 86.0 | 95.2 D-288G 48 104 1.937 EN 10270-1 162.332 20.21 83.79 100.0 | 100.0 | 100.0 | 100.0 D-289C-02 48 115 2.16 EN 10270-1 181.589 30.93 84.07 92.3 | 92.6 | 94.5 | 89.7 D-288X-20 48 88 2.587 EN 10270-1 173.107 21.09 66.91 84.8 | 92.6 | 86.8 | 74.9 D-313E-11 48 120 3.258 EN 10270-1 274.052 35.89 84.11 75.7 | 88.1 | 79.4 | 59.5 D-313E-10 48 80 4.887 EN 10270-1 262.323 26.33 53.67 62.5 | 84.9 | 63.0 | 39.6 D-318C 49 103 5.204 EN 10270-1 346.684 36.38 66.62 63.1 | 89.0 | 63.2 | 37.2 D-314 54 99 5.961 EN 10270-1 431.102 26.68 72.32 59.7 | 84.7 | 62.0 | 32.5 D-320 44 105 7.409 EN 10270-1 514.932 35.5 69.5 56.8 | 86.9 | 57.2 | 26.1 D-339L 50 112 8.063 EN 10270-1 580.403 40.02 71.98 54.9 | 83.7 | 56.9 | 24.0 D-345A 55 100 9.261 EN 10270-1 515.163 44.38 55.63 49.9 | 79.8 | 49.0 | 20.9 D-349A-10 50 95 9.982 EN 10270-1 421.709 52.75 42.25 48.3 | 81.1 | 44.5 | 19.4 D-364R-42 54 92 10.396 EN 10270-1 240.214 68.89 23.11 47.3 | 75.8 | 47.6 | 18.6 D-351A 45 110 13.265 EN 10270-1 731.563 54.85 55.15 46.7 | 81.4 | 44.0 | 14.6 D-351 45 95.5 18.089 EN 10270-1 951.641 42.89 52.61 43.7 | 80.5 | 39.9 | 10.7 D-364J-22 48 92 22.079 EN 10270-1 993.5 47 45 41.2 | 79.8 | 35.0 | 8.8 D-364R-82 46 102 24.27 EN 10270-1 740.242 71.5 30.5 39.1 | 80.2 | 29.2 | 8.0 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring D-288G Country of origin: DE, German; Compression spring D-288G Product image - Compression springs D-288G QR-Code: Compression spring D-288G
