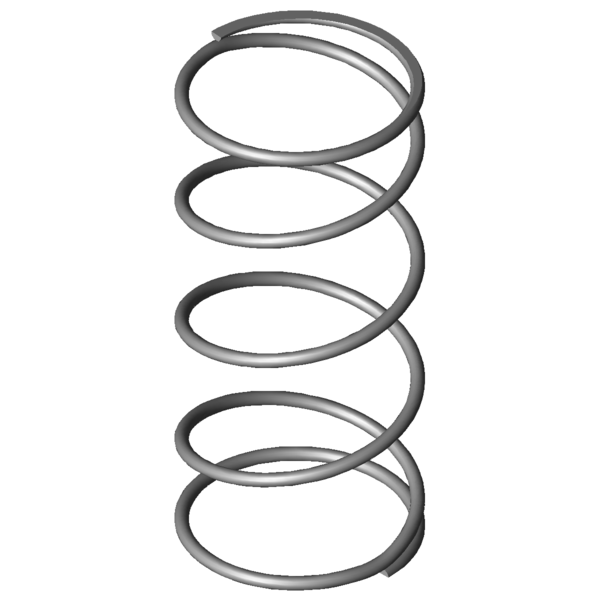

Home » Products » Compression springs » vd-288g Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288G Stainless steel Ø 2.8 x 45.2 x 104 mm Scaled prices - Compression spring VD-288G Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Compression spring Buy Product image Compression spring VD-288G Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288G Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.8 mm Wire diameter Di mm Inner coil diameter D 45.2 mm Mean coil diameter De 48 mm Outer coil diameter Dd 41.2 mm maximum diameter of mandrel Dh 50.9 mm minimum diameter of bush L0 104 mm unstressed spring length Lk mm buckling length Fn 139.427 N maximum force in static use Ln 20.21 mm Minimum length in static use sn 83.79 mm Maximum spring deflection in static use Fndyn 135.417 N maximum force in dynamic use Lndyn 22.62 mm Minimum length in dynamic use shdyn 24.33 mm Maximum stroke in dynamic use S 28.914 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 1.664 N/mm Spring rate Weight 38.0135 g weight of one spring Fntol 11.95 N (+/-) tolerance of maximum force in static use Fndtol 11.88 N (+/-) tolerance of maximum dynamic force Detol 0.9 mm (+/-) tolerances of outer coil diameter L0tol 4.91 mm (+/-) tolerance of unstressed spring length Price group M - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288G Stainless steel Ø 2.8 x 45.2 x 104 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288G Stainless steel Ø 2.8 x 45.2 x 104 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288G Stainless steel Ø 2.8 x 45.2 x 104 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288G Stainless steel Ø 2.8 x 45.2 x 104 mm force-path-calculation Compression spring VD-288G Inquiry formular Compression spring VD-288G Stainless steel Ø 2.8 x 45.2 x 104 mm Inquiry formular Compression spring VD-288G Similar compression springs to Compression spring VD-288G Stainless steel Ø 2.8 x 45.2 x 104 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288G 1.4310 2.8 48 104 139.427 20.21 83.79 3.5 1.664 100.0 | 100.0 | 100.0 | 100.0 D-288G EN 10270-1 2.8 48 104 162.332 20.21 83.79 3.5 1.937 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263V-19 46 87 1.186 1.4310 81.151 18.6 68.4 76.9 | 89.6 | 69.9 | 71.3 VD-288X-21 48 103 1.414 1.4310 103.63 29.72 73.28 87.8 | 97.5 | 80.9 | 85.0 VD-288Z 40 100 1.473 1.4310 82.698 43.85 56.15 80.9 | 90.9 | 63.2 | 88.5 VD-263W 42 91.7 1.585 1.4310 116.938 17.9 73.8 89.8 | 88.3 | 86.0 | 95.2 VD-288G 48 104 1.664 1.4310 139.427 20.21 83.79 100.0 | 100.0 | 100.0 | 100.0 VD-289C-02 48 115 1.855 1.4310 155.966 30.93 84.07 92.3 | 92.6 | 94.5 | 89.7 VD-288X-20 48 88 2.222 1.4310 148.681 21.09 66.91 84.8 | 92.6 | 86.8 | 74.9 VD-313E-11 48 120 2.798 1.4310 235.382 35.89 84.11 75.7 | 88.1 | 79.4 | 59.5 VD-313E-10 48 80 4.198 1.4310 225.308 26.33 53.67 62.5 | 84.9 | 63.0 | 39.6 VD-318C 49 103 4.469 1.4310 297.766 36.38 66.62 63.1 | 89.0 | 63.2 | 37.2 VD-314 54 99 5.12 1.4310 370.272 26.68 72.32 59.7 | 84.7 | 62.0 | 32.5 VD-320 44 105 6.364 1.4310 442.273 35.5 69.5 56.8 | 86.9 | 57.2 | 26.1 VD-339L 50 112 6.926 1.4310 498.506 40.02 71.98 54.9 | 83.7 | 56.9 | 24.0 VD-345A 55 100 7.955 1.4310 442.472 44.38 55.63 49.9 | 79.8 | 49.0 | 20.9 VD-349A-10 50 95 8.573 1.4310 362.204 52.75 42.25 48.3 | 81.1 | 44.5 | 19.4 VD-364R-42 54 92 8.929 1.4310 206.319 68.89 23.11 47.3 | 75.8 | 47.6 | 18.6 VD-351A 45 110 11.393 1.4310 628.337 54.85 55.15 46.7 | 81.4 | 44.0 | 14.6 VD-351 45 95.5 15.536 1.4310 817.361 42.89 52.61 43.7 | 80.5 | 39.9 | 10.7 VD-364J-22 48 92 18.964 1.4310 853.379 47 45 41.2 | 79.8 | 35.0 | 8.8 VD-364R-82 46 102 20.846 1.4310 635.79 71.5 30.5 39.1 | 80.2 | 29.2 | 8.0 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring VD-288G Country of origin: DE, German; Compression spring VD-288G Product image - Compression springs VD-288G QR-Code: Compression spring VD-288G
