Compression spring VD-351A Stainless steel Ø 5 x 40 x 110 mm

Scaled prices - Compression spring VD-351A

Quantity	Single price [EUR]
1	13.5300 EUR
2	10.7800 EUR
3	6.2300 EUR
7	4.2800 EUR
17	2.7100 EUR
37	2.3100 EUR
75	2.2200 EUR
125	2.2200 EUR
175	2.2200 EUR
250	2.2200 EUR
350	2.2200 EUR

Compression spring Buy

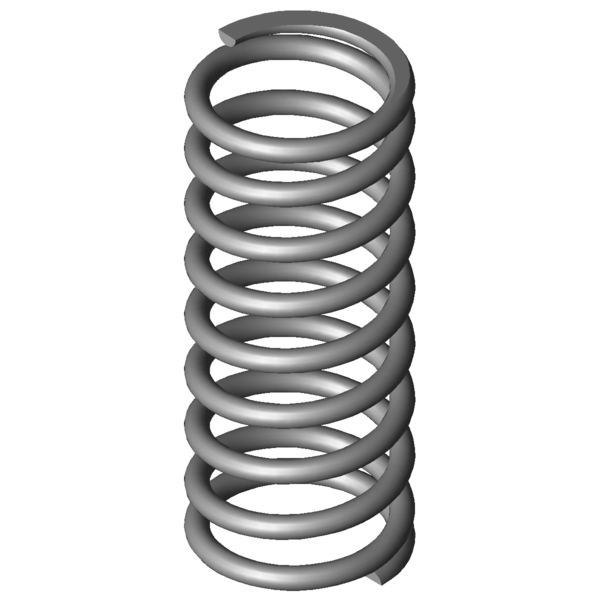

Product image Compression spring VD-351A

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring VD-351A

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	5	mm	Wire diameter
Di		mm	Inner coil diameter
D	40	mm	Mean coil diameter
De	45	mm	Outer coil diameter
Dd	34	mm	maximum diameter of mandrel
Dh	46.5	mm	minimum diameter of bush
L0	110	mm	unstressed spring length
Lk		mm	buckling length
Fn	628.337	N	maximum force in static use
Ln	54.85	mm	Minimum length in static use
sn	55.15	mm	Maximum spring deflection in static use
Fndyn	586.41	N	maximum force in dynamic use
Lndyn	58.53	mm	Minimum length in dynamic use
shdyn	20.29	mm	Maximum stroke in dynamic use
S	14	mm	pitch of spring
n	7.5	pc.	number of active coils
nt		pc.	total number of coils
R	11.393	N/mm	Spring rate
Weight	185.2865	g	weight of one spring
Fntol	43.01	N	(+/-) tolerance of maximum force in static use
Fndtol	42.28	N	(+/-) tolerance of maximum dynamic force
Detol	0.5	mm	(+/-) tolerances of outer coil diameter
L0tol	2.41	mm	(+/-) tolerance of unstressed spring length
Price group	#AG	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring VD-351A Stainless steel Ø 5 x 40 x 110 mm

Datasheet download pdf file

Metal spring characteristic Compression spring VD-351A Stainless steel Ø 5 x 40 x 110 mm

Metal spring characteristic download pdf file

CAD data Compression spring VD-351A Stainless steel Ø 5 x 40 x 110 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring VD-351A Stainless steel Ø 5 x 40 x 110 mm

force-path-calculation Compression spring VD-351A

Inquiry formular Compression spring VD-351A Stainless steel Ø 5 x 40 x 110 mm

Inquiry formular Compression spring VD-351A

Similar compression springs to Compression spring VD-351A Stainless steel Ø 5 x 40 x 110 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
VD-351A	1.4310	5	45	110	628.337	54.85	55.15	7.5	11.393	100.0 \| 100.0 \| 100.0 \| 100.0
D-351A	EN 10270-1	5	45	110	731.563	54.85	55.15	7.5	13.265	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
VD-263V-19	46	87	1.186	1.4310	81.151	18.6	68.4	44.3 \| 75.6 \| 46.8 \| 10.4
VD-288X-21	48	103	1.414	1.4310	103.63	29.72	73.28	46.9 \| 82.5 \| 45.9 \| 12.4
VD-288Z	40	100	1.473	1.4310	82.698	43.85	56.15	49.5 \| 79.9 \| 55.7 \| 12.9
VD-263W	42	91.7	1.585	1.4310	116.938	17.9	73.8	45.4 \| 75.6 \| 46.7 \| 13.9
VD-288G	48	104	1.664	1.4310	139.427	20.21	83.79	46.7 \| 81.4 \| 44.0 \| 14.6
VD-289C-02	48	115	1.855	1.4310	155.966	30.93	84.07	48.7 \| 84.5 \| 45.2 \| 16.3
VD-290	43.2	125	2.607	1.4310	247.922	29.89	95.12	51.4 \| 82.7 \| 48.7 \| 22.9
VD-313E-11	48	120	2.798	1.4310	235.382	35.89	84.11	54.0 \| 85.8 \| 51.5 \| 24.6
VD-318C	49	103	4.469	1.4310	297.766	36.38	66.62	64.3 \| 88.5 \| 65.1 \| 39.2
VD-320	44	105	6.364	1.4310	442.273	35.5	69.5	73.9 \| 91.1 \| 74.9 \| 55.9
VD-339L	50	112	6.926	1.4310	498.506	40.02	71.98	77.2 \| 92.7 \| 78.0 \| 60.8
VD-339N-05	41	115	8.681	1.4310	521.717	54.9	60.1	85.3 \| 92.3 \| 87.4 \| 76.2
VD-351B	45	130	9.494	1.4310	628.337	63.82	66.18	90.0 \| 94.9 \| 91.7 \| 83.3
VD-351A	45	110	11.393	1.4310	628.337	54.85	55.15	100.0 \| 100.0 \| 100.0 \| 100.0
VD-351	45	95.5	15.536	1.4310	817.361	42.89	52.61	85.0 \| 95.6 \| 86.1 \| 73.3
VD-364J-22	48	92	18.964	1.4310	853.379	47	45	75.7 \| 89.4 \| 77.6 \| 60.1
VD-357	37	110	19.634	1.4310	994.266	59.36	50.64	76.5 \| 94.1 \| 77.5 \| 58.0
VD-364R-82	46	102	20.846	1.4310	635.79	71.5	30.5	74.3 \| 91.3 \| 77.1 \| 54.7
VD-364M	38	113	24.552	1.4310	1025.983	71.21	41.79	68.6 \| 90.9 \| 68.5 \| 46.4
VD-364J-10	42	102	25.332	1.4310	1249.197	52.69	49.31	69.1 \| 92.3 \| 69.9 \| 45.0
VD-381A	46.3	100	25.338	1.4310	639.958	74.74	25.26	68.7 \| 89.2 \| 72.0 \| 45.0
VD-364R-07	39	115	33.823	1.4310	1623.518	67	48	62.0 \| 89.5 \| 62.9 \| 33.7
VD-364R-92	39	100	37.124	1.4310	1098.34	70.41	29.59	57.7 \| 87.0 \| 55.4 \| 30.7
VD-364R-06	39	102	38.655	1.4310	1565.535	61.5	40.5	58.3 \| 88.5 \| 56.8 \| 29.5
VD-381	46.3	90	39.159	1.4310	1456.3	52.81	37.19	56.8 \| 86.1 \| 55.3 \| 29.1
VD-387	38.3	110	49.488	1.4310	1802.489	73.58	36.42	53.9 \| 88.2 \| 50.4 \| 23.0
VD-389N-02	46	110	50.595	1.4310	2014.62	70.18	39.82	54.7 \| 89.8 \| 51.7 \| 22.5
VD-389A-07	39	115	55.078	1.4310	1617.416	85.63	29.37	50.8 \| 85.6 \| 46.1 \| 20.7
VD-389A-06	39	102	61.557	1.4310	1475.51	78.03	23.97	48.7 \| 84.7 \| 43.0 \| 18.5

Number of similar metal springs: 28
