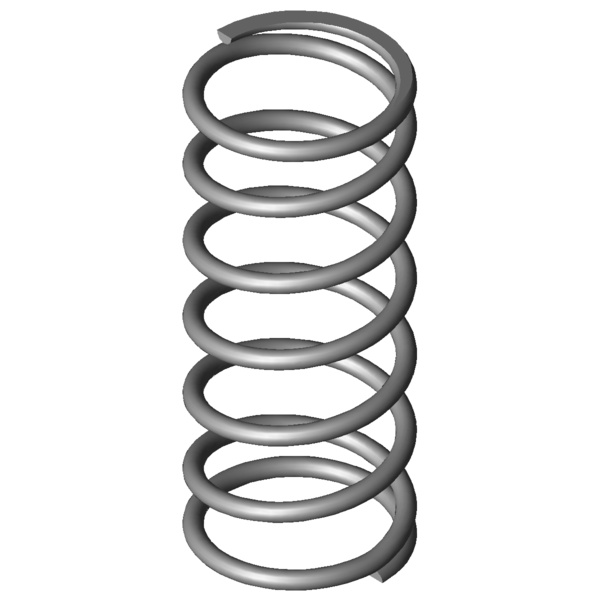

Home » Products » Compression springs » vd-320 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-320 Stainless steel Ø 4 x 40 x 105 mm Scaled prices - Compression spring VD-320 Quantity Single price [EUR] 1 13.1800 EUR 2 10.5000 EUR 3 6.0600 EUR 7 3.9100 EUR 17 2.5400 EUR 37 2.1200 EUR 75 2.0700 EUR 125 2.0700 EUR 175 2.0700 EUR 250 2.0700 EUR 350 2.0700 EUR Compression spring Buy Product image Compression spring VD-320 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-320 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 40 mm Mean coil diameter De 44 mm Outer coil diameter Dd 34.9 mm maximum diameter of mandrel Dh 45.8 mm minimum diameter of bush L0 105 mm unstressed spring length Lk mm buckling length Fn 442.273 N maximum force in static use Ln 35.5 mm Minimum length in static use sn 69.5 mm Maximum spring deflection in static use Fndyn 415.418 N maximum force in dynamic use Lndyn 39.72 mm Minimum length in dynamic use shdyn 11.84 mm Maximum stroke in dynamic use S 18.364 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 6.364 N/mm Spring rate Weight 93.6184 g weight of one spring Fntol 26.1 N (+/-) tolerance of maximum force in static use Fndtol 25.8 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 2.48 mm (+/-) tolerance of unstressed spring length Price group #AE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-320 Stainless steel Ø 4 x 40 x 105 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-320 Stainless steel Ø 4 x 40 x 105 mm Metal spring characteristic download pdf file CAD data Compression spring VD-320 Stainless steel Ø 4 x 40 x 105 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-320 Stainless steel Ø 4 x 40 x 105 mm force-path-calculation Compression spring VD-320 Inquiry formular Compression spring VD-320 Stainless steel Ø 4 x 40 x 105 mm Inquiry formular Compression spring VD-320 Similar compression springs to Compression spring VD-320 Stainless steel Ø 4 x 40 x 105 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-320 1.4310 4 44 105 442.273 35.5 69.5 5.5 6.364 100.0 | 100.0 | 100.0 | 100.0 D-320 EN 10270-1 4 44 105 514.932 35.5 69.5 5.5 7.409 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263V-19 46 87 1.186 1.4310 81.151 18.6 68.4 52.5 | 80.3 | 58.4 | 18.6 VD-288X-21 48 103 1.414 1.4310 103.63 29.72 73.28 56.5 | 88.3 | 59.1 | 22.2 VD-288Y 41 92 1.435 1.4310 71.474 42.2 49.8 43.3 | 82.7 | 40.0 | 7.3 VD-288Z 40 100 1.473 1.4310 82.698 43.85 56.15 42.2 | 82.2 | 36.9 | 7.5 VD-263W 42 91.7 1.585 1.4310 116.938 17.9 73.8 39.6 | 78.5 | 32.1 | 8.1 VD-288G 48 104 1.664 1.4310 139.427 20.21 83.79 56.8 | 86.9 | 57.2 | 26.1 VD-289C-02 48 115 1.855 1.4310 155.966 30.93 84.07 58.6 | 87.7 | 59.0 | 29.2 VD-290 43.2 125 2.607 1.4310 247.922 29.89 95.12 64.3 | 87.4 | 64.6 | 41.0 VD-318C 49 103 4.469 1.4310 297.766 36.38 66.62 82.6 | 96.0 | 81.6 | 70.2 VD-313G 40 92.8 5.541 1.4310 336.773 32.02 60.78 56.4 | 87.7 | 53.3 | 28.2 VD-320 44 105 6.364 1.4310 442.273 35.5 69.5 100.0 | 100.0 | 100.0 | 100.0 VD-339L 50 112 6.926 1.4310 498.506 40.02 71.98 91.6 | 90.2 | 92.6 | 91.9 VD-339N-05 41 115 8.681 1.4310 521.717 54.9 60.1 83.4 | 91.1 | 85.6 | 73.3 VD-351A 45 110 11.393 1.4310 628.337 54.85 55.15 73.9 | 91.1 | 74.9 | 55.9 VD-351 45 95.5 15.536 1.4310 817.361 42.89 52.61 65.1 | 89.6 | 64.9 | 41.0 VD-364J-22 48 92 18.964 1.4310 853.379 47 45 58.6 | 84.0 | 58.3 | 33.6 VD-357 37 110 19.634 1.4310 994.266 59.36 50.64 59.2 | 86.5 | 58.7 | 32.4 VD-364R-82 46 102 20.846 1.4310 635.79 71.5 30.5 57.9 | 86.5 | 56.7 | 30.5 VD-364M 38 113 24.552 1.4310 1025.983 71.21 41.79 53.8 | 84.0 | 51.6 | 25.9 VD-364J-10 42 102 25.332 1.4310 1249.197 52.69 49.31 76.7 | 90.4 | 62.3 | 77.5 VD-381A 46.3 100 25.338 1.4310 639.958 74.74 25.26 54.1 | 84.6 | 52.7 | 25.1 VD-364R-07 39 115 33.823 1.4310 1623.518 67 48 50.0 | 83.0 | 48.2 | 18.8 VD-364R-92 39 100 37.124 1.4310 1098.34 70.41 29.59 72.4 | 90.7 | 73.7 | 52.9 VD-364R-06 39 102 38.655 1.4310 1565.535 61.5 40.5 68.8 | 91.1 | 64.5 | 50.8 VD-381 46.3 90 39.159 1.4310 1456.3 52.81 37.19 46.5 | 81.4 | 41.9 | 16.3 VD-387 38.3 110 49.488 1.4310 1802.489 73.58 36.42 64.4 | 87.1 | 66.4 | 39.7 Number of similar metal springs: 25 Customs tariff number: 73202081; Compression spring VD-320 Country of origin: DE, German; Compression spring VD-320 Product image - Compression springs VD-320 QR-Code: Compression spring VD-320
