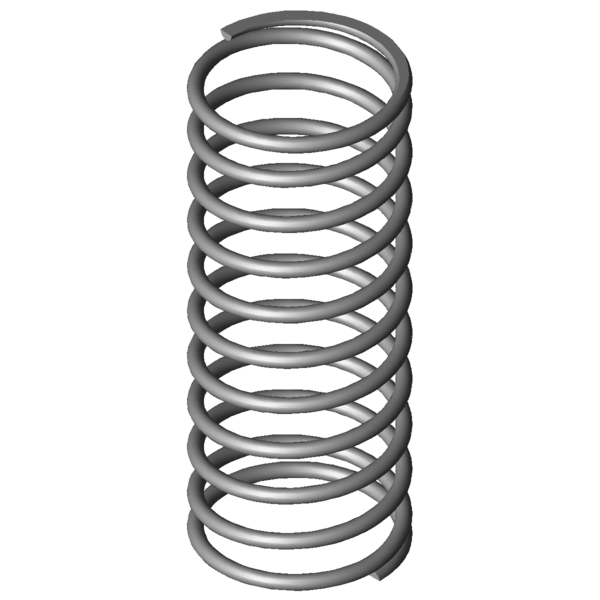

Home » Products » Compression springs » vd-288z Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-288Z Stainless steel Ø 3 x 37 x 100 mm Scaled prices - Compression spring VD-288Z Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Compression spring Buy Product image Compression spring VD-288Z Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288Z Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 3 mm Wire diameter Di - mm Inner coil diameter D 37 mm Mean coil diameter De 40 mm Outer coil diameter Dd 33.2 mm maximum diameter of mandrel Dh 41.1 mm minimum diameter of bush L0 100 mm unstressed spring length Lk mm buckling length Fn 82.698 N maximum force in static use Ln 43.85 mm Minimum length in static use sn 56.15 mm Maximum spring deflection in static use Fndyn 75.809 N maximum force in dynamic use Lndyn 48.53 mm Minimum length in dynamic use shdyn 51.47 mm Maximum stroke in dynamic use S 10.211 mm pitch of spring n 9.5 pc. number of active coils nt - pc. total number of coils R 1.473 N/mm Spring rate Weight 74.69 g weight of one spring Fntol 10.46 N (+/-) tolerance of maximum force in static use Fndtol 10.34 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 5.25 mm (+/-) tolerance of unstressed spring length Price group M - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288Z Stainless steel Ø 3 x 37 x 100 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288Z Stainless steel Ø 3 x 37 x 100 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288Z Stainless steel Ø 3 x 37 x 100 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288Z Stainless steel Ø 3 x 37 x 100 mm force-path-calculation Compression spring VD-288Z Inquiry formular Compression spring VD-288Z Stainless steel Ø 3 x 37 x 100 mm Inquiry formular Compression spring VD-288Z Customs tariff number: 73202081; Compression spring VD-288Z Country of origin: DE, German; Compression spring VD-288Z Product image - Compression springs VD-288Z QR-Code: Compression spring VD-288Z
