Compression spring D-349A-10 Spring steel Ø 5 x 45 x 95 mm

Scaled prices - Compression spring D-349A-10

Quantity	Single price [EUR]
1	13.3600 EUR
2	10.6400 EUR
3	6.1500 EUR
7	4.0000 EUR
17	2.6100 EUR
37	2.2000 EUR
75	2.1400 EUR
125	2.1212 EUR
175	2.1185 EUR
250	2.0658 EUR
350	2.0208 EUR

Compression spring Buy

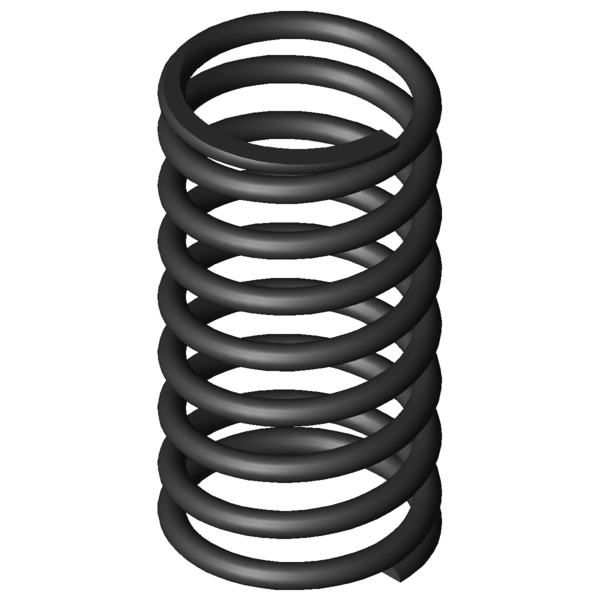

Product image Compression spring D-349A-10

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-349A-10

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	5	mm	Wire diameter
Di		mm	Inner coil diameter
D	45	mm	Mean coil diameter
De	50	mm	Outer coil diameter
Dd	38.7	mm	maximum diameter of mandrel
Dh	51.6	mm	minimum diameter of bush
L0	95	mm	unstressed spring length
Lk		mm	buckling length
Fn	421.709	N	maximum force in static use
Ln	52.75	mm	Minimum length in static use
sn	42.25	mm	Maximum spring deflection in static use
Fndyn	383.004	N	maximum force in dynamic use
Lndyn	56.63	mm	Minimum length in dynamic use
shdyn	38.37	mm	Maximum stroke in dynamic use
S	12.857	mm	pitch of spring
n	7	pc.	number of active coils
nt		pc.	total number of coils
R	9.982	N/mm	Spring rate
Weight	197.4764	g	weight of one spring
Fntol	34.9	N	(+/-) tolerance of maximum force in static use
Fndtol	34.15	N	(+/-) tolerance of maximum dynamic force
Detol	0.8	mm	(+/-) tolerances of outer coil diameter
L0tol	2.81	mm	(+/-) tolerance of unstressed spring length
Price group	AF	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-349A-10 Spring steel Ø 5 x 45 x 95 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-349A-10 Spring steel Ø 5 x 45 x 95 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-349A-10 Spring steel Ø 5 x 45 x 95 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-349A-10 Spring steel Ø 5 x 45 x 95 mm

force-path-calculation Compression spring D-349A-10

Inquiry formular Compression spring D-349A-10 Spring steel Ø 5 x 45 x 95 mm

Inquiry formular Compression spring D-349A-10

Similar compression springs to Compression spring D-349A-10 Spring steel Ø 5 x 45 x 95 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-349A-10	EN 10270-1	5	50	95	421.709	52.75	42.25	7	9.982	100.0 \| 100.0 \| 100.0 \| 100.0
VD-349A-10	1.4310	5	50	95	362.204	52.75	42.25	7	8.573	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-263V-19	46	87	1.381	EN 10270-1	94.484	18.6	68.4	44.6 \| 77.9 \| 42.1 \| 13.8
D-288X-21	48	103	1.646	EN 10270-1	120.655	29.72	73.28	47.5 \| 82.7 \| 43.1 \| 16.5
D-288Y	41	92	1.671	EN 10270-1	83.216	42.2	49.8	49.5 \| 79.6 \| 52.3 \| 16.7
D-263W	42	91.7	1.845	EN 10270-1	136.149	17.9	73.8	46.7 \| 76.8 \| 44.8 \| 18.5
D-288G	48	104	1.937	EN 10270-1	162.332	20.21	83.79	48.3 \| 81.1 \| 44.5 \| 19.4
D-288X-20	48	88	2.587	EN 10270-1	173.107	21.09	66.91	53.6 \| 82.9 \| 52.1 \| 25.9
D-313E-10	48	80	4.887	EN 10270-1	262.323	26.33	53.67	67.8 \| 84.1 \| 70.5 \| 49.0
D-318C	49	103	5.204	EN 10270-1	346.684	36.38	66.62	71.7 \| 90.1 \| 72.8 \| 52.1
D-314	54	99	5.961	EN 10270-1	431.102	26.68	72.32	86.5 \| 84.2 \| 89.8 \| 85.7
D-313W	54	90	5.961	EN 10270-1	377.452	26.68	63.32	75.6 \| 89.1 \| 78.1 \| 59.7
D-313G	40	92.8	6.451	EN 10270-1	392.101	32.02	60.78	76.4 \| 83.2 \| 81.2 \| 64.6
D-320	44	105	7.409	EN 10270-1	514.932	35.5	69.5	77.2 \| 86.2 \| 71.3 \| 74.2
D-339L	50	112	8.063	EN 10270-1	580.403	40.02	71.98	89.4 \| 88.9 \| 93.0 \| 86.3
D-345A	55	100	9.261	EN 10270-1	515.163	44.38	55.63	84.5 \| 91.7 \| 86.7 \| 75.1
D-349A-10	50	95	9.982	EN 10270-1	421.709	52.75	42.25	100.0 \| 100.0 \| 100.0 \| 100.0
D-364R-42	54	92	10.396	EN 10270-1	240.214	68.89	23.11	81.6 \| 92.9 \| 55.8 \| 96.0
D-339K	50	74.4	12.671	EN 10270-1	578.56	28.74	45.66	83.6 \| 89.4 \| 82.7 \| 78.8
D-345	55	85	14.554	EN 10270-1	773.158	31.88	53.13	76.4 \| 93.5 \| 67.0 \| 68.6
D-351	45	95.5	18.089	EN 10270-1	951.641	42.89	52.61	71.3 \| 96.5 \| 62.3 \| 55.2
D-364J-22	48	92	22.079	EN 10270-1	993.5	47	45	69.3 \| 94.6 \| 68.2 \| 45.2
D-375A	56.3	94	23.343	EN 10270-1	933.982	53.99	40.01	56.1 \| 83.8 \| 54.6 \| 29.8
D-364R-82	46	102	24.27	EN 10270-1	740.242	71.5	30.5	65.1 \| 89.5 \| 64.6 \| 41.1
D-364J-10	42	102	29.494	EN 10270-1	1454.422	52.69	49.31	60.2 \| 89.3 \| 57.3 \| 33.8
D-381A	46.3	100	29.501	EN 10270-1	745.094	74.74	25.26	60.3 \| 89.0 \| 58.2 \| 33.8
D-381	46.3	90	45.592	EN 10270-1	1695.55	52.81	37.19	55.7 \| 88.9 \| 56.4 \| 21.9
D-389L	50	89	55.936	EN 10270-1	1704.417	58.53	30.47	51.5 \| 88.4 \| 48.4 \| 17.8
D-405A	58	98	60.695	EN 10270-1	1882.881	66.98	31.02	48.7 \| 81.9 \| 47.9 \| 16.4
D-409B	50	110	86.65	EN 10270-1	3002.418	75.35	34.65	47.5 \| 83.0 \| 48.0 \| 11.5
D-409A	53.5	82	98.442	EN 10270-1	2426.915	57.35	24.65	42.9 \| 80.8 \| 37.9 \| 10.1
D-411	48	90	118.545	EN 10270-1	2839.164	66.05	23.95	42.9 \| 84.4 \| 35.8 \| 8.4

Number of similar metal springs: 29

Customs tariff number: 73202081; Compression spring D-349A-10

Country of origin: DE, German; Compression spring D-349A-10

Product image - Compression springs D-349A-10

QR-Code: Compression spring D-349A-10

QR-Code - Compression springs - D-349A-10 | https://www.federnshop.com/en/products/compression_springs/d-349a-10.html
