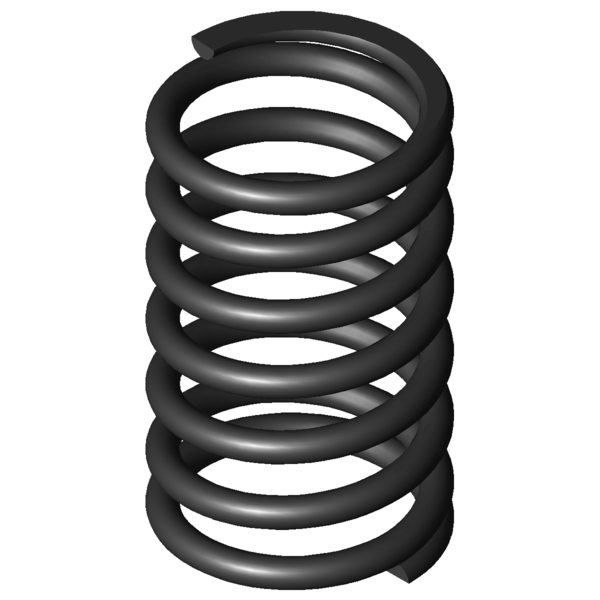

Home » Products » Compression springs » d-375a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-375A Spring steel Ø 6.3 x 50 x 94 mm Scaled prices - Compression spring D-375A Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 2.3700 EUR 37 2.0000 EUR 75 1.9100 EUR 125 1.8670 EUR 175 1.8647 EUR 250 1.8186 EUR 350 1.7923 EUR Compression spring Buy Product image Compression spring D-375A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-375A Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 6.3 mm Wire diameter Di mm Inner coil diameter D 50 mm Mean coil diameter De 56.3 mm Outer coil diameter Dd 42.6 mm maximum diameter of mandrel Dh 57.7 mm minimum diameter of bush L0 94 mm unstressed spring length Lk mm buckling length Fn 933.982 N maximum force in static use Ln 53.99 mm Minimum length in static use sn 40.01 mm Maximum spring deflection in static use Fndyn 855.288 N maximum force in dynamic use Lndyn 57.36 mm Minimum length in dynamic use shdyn 29.38 mm Maximum stroke in dynamic use S 15.945 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 23.343 N/mm Spring rate Weight 290.2903 g weight of one spring Fntol 65.45 N (+/-) tolerance of maximum force in static use Fndtol 64.2 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 2.2 mm (+/-) tolerance of unstressed spring length Price group AD - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-375A Spring steel Ø 6.3 x 50 x 94 mm Datasheet download pdf file Metal spring characteristic Compression spring D-375A Spring steel Ø 6.3 x 50 x 94 mm Metal spring characteristic download pdf file CAD data Compression spring D-375A Spring steel Ø 6.3 x 50 x 94 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-375A Spring steel Ø 6.3 x 50 x 94 mm force-path-calculation Compression spring D-375A Inquiry formular Compression spring D-375A Spring steel Ø 6.3 x 50 x 94 mm Inquiry formular Compression spring D-375A Similar compression springs to Compression spring D-375A Spring steel Ø 6.3 x 50 x 94 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-375A EN 10270-1 6.3 56.3 94 933.982 53.99 40.01 5.5 23.343 100.0 | 100.0 | 100.0 | 100.0 VD-375A 1.4310 6.3 56.3 94 802.193 53.99 40.01 5.5 20.049 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-318C 49 103 5.204 EN 10270-1 346.684 36.38 66.62 50.5 | 80.6 | 48.6 | 22.3 D-313W 54 90 5.961 EN 10270-1 377.452 26.68 63.32 54.1 | 85.1 | 51.8 | 25.5 D-314 54 99 5.961 EN 10270-1 431.102 26.68 72.32 53.7 | 84.8 | 50.7 | 25.5 D-339J-21 58 78 7.795 EN 10270-1 376.4 29.7 48.3 59.6 | 83.8 | 61.6 | 33.4 D-345A 55 100 9.261 EN 10270-1 515.163 44.38 55.63 64.5 | 90.4 | 63.5 | 39.7 D-349A-10 50 95 9.982 EN 10270-1 421.709 52.75 42.25 67.2 | 89.0 | 69.9 | 42.8 D-364R-42 54 92 10.396 EN 10270-1 240.214 68.89 23.11 60.2 | 94.2 | 41.7 | 44.5 D-344A-12 60 80 10.934 EN 10270-1 520.145 32.43 47.57 67.6 | 86.1 | 69.9 | 46.8 D-345 55 85 14.554 EN 10270-1 773.158 31.88 53.13 76.8 | 89.2 | 79.0 | 62.3 D-364F 60 85.4 16.454 EN 10270-1 829.093 35.01 50.39 81.7 | 90.7 | 84.1 | 70.5 D-351 45 95.5 18.089 EN 10270-1 951.641 42.89 52.61 83.5 | 85.9 | 87.1 | 77.5 D-364J-02 56 77 20.681 EN 10270-1 876.677 34.61 42.39 90.8 | 89.6 | 94.1 | 88.6 D-364J-22 48 92 22.079 EN 10270-1 993.5 47 45 92.1 | 90.1 | 91.5 | 94.6 D-364R-70 61 85 22.673 EN 10270-1 1071.318 37.75 47.25 91.9 | 92.7 | 85.9 | 97.1 D-375A 56.3 94 23.343 EN 10270-1 933.982 53.99 40.01 100.0 | 100.0 | 100.0 | 100.0 D-381A 46.3 100 29.501 EN 10270-1 745.094 74.74 25.26 80.9 | 92.1 | 71.5 | 79.1 D-375 56.3 80 36.682 EN 10270-1 1506.22 38.94 41.06 79.5 | 95.0 | 79.7 | 63.6 D-381 46.3 90 45.592 EN 10270-1 1695.55 52.81 37.19 72.6 | 92.7 | 74.0 | 51.2 D-389L 50 89 55.936 EN 10270-1 1704.417 58.53 30.47 66.1 | 91.2 | 65.5 | 41.7 D-405A 58 98 60.695 EN 10270-1 1882.881 66.98 31.02 64.2 | 90.6 | 63.6 | 38.5 D-406 58 110 60.695 EN 10270-1 2611.224 66.98 43.02 63.3 | 87.1 | 64.4 | 38.5 D-405 58 75 95.378 EN 10270-1 2533.188 48.44 26.56 53.8 | 85.2 | 51.6 | 24.5 D-409A 53.5 82 98.442 EN 10270-1 2426.915 57.35 24.65 53.6 | 87.0 | 50.0 | 23.7 D-411 48 90 118.545 EN 10270-1 2839.164 66.05 23.95 50.9 | 86.6 | 46.4 | 19.7 D-414M-01 57 91 120.877 EN 10270-1 2608.527 69.42 21.58 50.9 | 88.5 | 44.9 | 19.3 D-436 60 110 148.182 EN 10270-1 4065.739 82.56 27.44 47.4 | 80.8 | 45.8 | 15.8 D-500 60 85 362.228 EN 10270-1 7064.921 65.5 19.5 39.3 | 80.5 | 31.0 | 6.4 Number of similar metal springs: 26 Customs tariff number: 73202081; Compression spring D-375A Country of origin: DE, German; Compression spring D-375A Product image - Compression springs D-375A QR-Code: Compression spring D-375A
