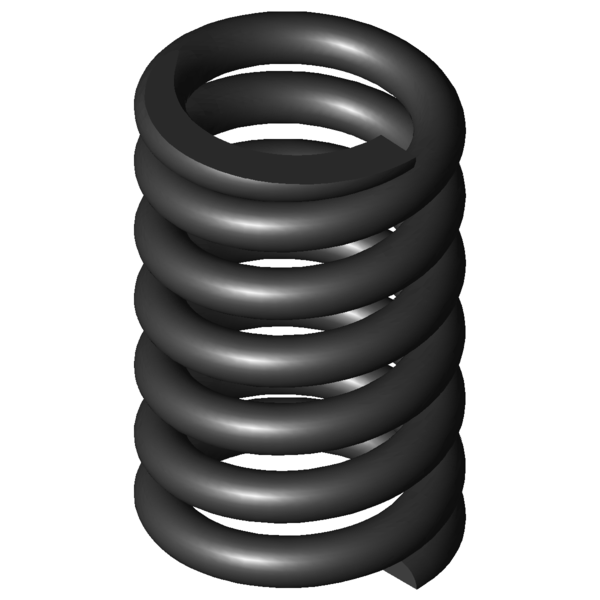

Home » Products » Compression springs » d-414m-01 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-414M-01 Spring steel Ø 9 x 48 x 91 mm Scaled prices - Compression spring D-414M-01 Quantity Single price [EUR] 1 14.9000 EUR 2 11.8700 EUR 3 7.7300 EUR 7 5.7700 EUR 17 4.1600 EUR 37 3.5700 EUR 75 3.5200 EUR 125 3.5057 EUR 175 3.4790 EUR 250 3.4039 EUR 350 3.3561 EUR Compression spring Buy Product image Compression spring D-414M-01 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-414M-01 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 9 mm Wire diameter Di mm Inner coil diameter D 48 mm Mean coil diameter De 57 mm Outer coil diameter Dd 37.8 mm maximum diameter of mandrel Dh 58.4 mm minimum diameter of bush L0 91 mm unstressed spring length Lk mm buckling length Fn 2608.527 N maximum force in static use Ln 69.42 mm Minimum length in static use sn 21.58 mm Maximum spring deflection in static use Fndyn 2220.512 N maximum force in dynamic use Lndyn 72.63 mm Minimum length in dynamic use shdyn 14.43 mm Maximum stroke in dynamic use S 16.4 mm pitch of spring n 5 pc. number of active coils nt pc. total number of coils R 120.877 N/mm Spring rate Weight 530.8166 g weight of one spring Fntol 249 N (+/-) tolerance of maximum force in static use Fndtol 243 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 1.67 mm (+/-) tolerance of unstressed spring length Price group AM - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-414M-01 Spring steel Ø 9 x 48 x 91 mm Datasheet download pdf file Metal spring characteristic Compression spring D-414M-01 Spring steel Ø 9 x 48 x 91 mm Metal spring characteristic download pdf file CAD data Compression spring D-414M-01 Spring steel Ø 9 x 48 x 91 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-414M-01 Spring steel Ø 9 x 48 x 91 mm force-path-calculation Compression spring D-414M-01 Inquiry formular Compression spring D-414M-01 Spring steel Ø 9 x 48 x 91 mm Inquiry formular Compression spring D-414M-01 Similar compression springs to Compression spring D-414M-01 Spring steel Ø 9 x 48 x 91 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-414M-01 EN 10270-1 9 57 91 2608.527 69.42 21.58 5 120.877 100.0 | 100.0 | 100.0 | 100.0 VD-414M-01 1.4310 9 57 91 2240.453 69.42 21.58 5 103.821 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-364F 60 85.4 16.454 EN 10270-1 829.093 35.01 50.39 44.7 | 83.3 | 37.3 | 13.6 D-351 45 95.5 18.089 EN 10270-1 951.641 42.89 52.61 43.4 | 76.6 | 38.8 | 15.0 D-364J-02 56 77 20.681 EN 10270-1 876.677 34.61 42.39 46.9 | 81.3 | 42.3 | 17.1 D-364J-22 48 92 22.079 EN 10270-1 993.5 47 45 47.6 | 81.4 | 43.0 | 18.3 D-364R-70 61 85 22.673 EN 10270-1 1071.318 37.75 47.25 48.9 | 84.5 | 43.4 | 18.8 D-375A 56.3 94 23.343 EN 10270-1 933.982 53.99 40.01 50.9 | 88.5 | 44.9 | 19.3 D-375 56.3 80 36.682 EN 10270-1 1506.22 38.94 41.06 57.0 | 85.6 | 55.1 | 30.3 D-381 46.3 90 45.592 EN 10270-1 1695.55 52.81 37.19 60.9 | 83.4 | 61.5 | 37.7 D-389L 50 89 55.936 EN 10270-1 1704.417 58.53 30.47 67.4 | 87.8 | 68.1 | 46.3 D-405A 58 98 60.695 EN 10270-1 1882.881 66.98 31.02 71.5 | 93.3 | 70.9 | 50.2 D-406 58 110 60.695 EN 10270-1 2611.224 66.98 43.02 71.7 | 90.0 | 75.0 | 50.2 D-405 58 75 95.378 EN 10270-1 2533.188 48.44 26.56 86.0 | 89.9 | 89.2 | 78.9 D-409A 53.5 82 98.442 EN 10270-1 2426.915 57.35 24.65 87.6 | 91.0 | 90.3 | 81.5 D-411 48 90 118.545 EN 10270-1 2839.164 66.05 23.95 93.2 | 90.7 | 91.0 | 98.1 D-414M-01 57 91 120.877 EN 10270-1 2608.527 69.42 21.58 100.0 | 100.0 | 100.0 | 100.0 D-414J 63 77.3 121.28 EN 10270-1 2783.249 54.35 22.95 95.1 | 91.8 | 93.9 | 99.7 D-436 60 110 148.182 EN 10270-1 4065.739 82.56 27.44 80.7 | 89.2 | 71.4 | 81.6 D-435 60 75 232.857 EN 10270-1 3536.518 59.81 15.19 71.0 | 89.1 | 72.1 | 51.9 D-500 60 85 362.228 EN 10270-1 7064.921 65.5 19.5 62.4 | 90.1 | 63.6 | 33.4 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring D-414M-01 Country of origin: DE, German; Compression spring D-414M-01 Product image - Compression springs D-414M-01 QR-Code: Compression spring D-414M-01
