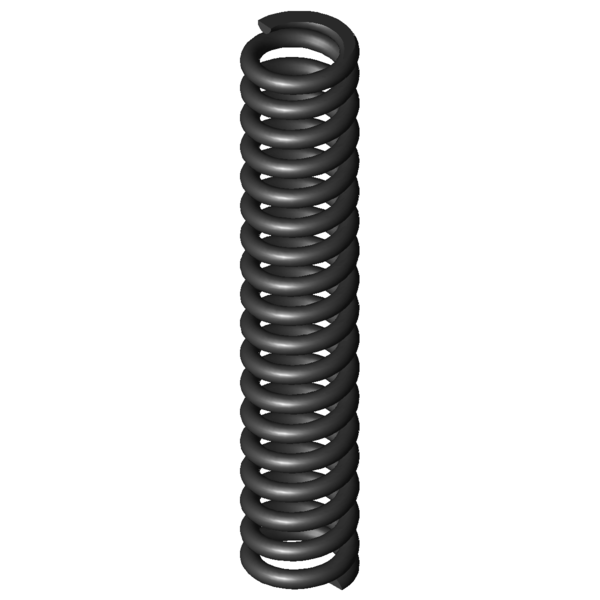

Home » Products » Compression springs » d-363a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-363A Spring steel Ø 5 x 25 x 160 mm Scaled prices - Compression spring D-363A Quantity Single price [EUR] 1 13.1800 EUR 2 10.5000 EUR 3 6.0600 EUR 7 3.9100 EUR 17 2.5400 EUR 37 2.1200 EUR 75 2.0700 EUR 125 2.0408 EUR 175 2.0281 EUR 250 1.9902 EUR 350 1.9446 EUR Compression spring Buy Product image Compression spring D-363A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-363A Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 25 mm Mean coil diameter De 30 mm Outer coil diameter Dd 19.1 mm maximum diameter of mandrel Dh 31 mm minimum diameter of bush L0 160 mm unstressed spring length Lk 105.9 mm buckling length Fn 1386.889 N maximum force in static use Ln 103.84 mm Minimum length in static use sn 56.16 mm Maximum spring deflection in static use Fndyn 1246.95 N maximum force in dynamic use Lndyn 109.51 mm Minimum length in dynamic use shdyn 19.52 mm Maximum stroke in dynamic use S 9.394 mm pitch of spring n 16.5 pc. number of active coils nt pc. total number of coils R 24.697 N/mm Spring rate Weight 225.5132 g weight of one spring Fntol 88.8 N (+/-) tolerance of maximum force in static use Fndtol 87.7 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 2.8 mm (+/-) tolerance of unstressed spring length Price group AE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-363A Spring steel Ø 5 x 25 x 160 mm Datasheet download pdf file Metal spring characteristic Compression spring D-363A Spring steel Ø 5 x 25 x 160 mm Metal spring characteristic download pdf file CAD data Compression spring D-363A Spring steel Ø 5 x 25 x 160 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-363A Spring steel Ø 5 x 25 x 160 mm force-path-calculation Compression spring D-363A Inquiry formular Compression spring D-363A Spring steel Ø 5 x 25 x 160 mm Inquiry formular Compression spring D-363A Similar compression springs to Compression spring D-363A Spring steel Ø 5 x 25 x 160 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-363A EN 10270-1 5 30 160 1386.889 103.84 56.16 16.5 24.697 100.0 | 100.0 | 100.0 | 100.0 VD-363A 1.4310 5 30 160 1191.193 103.84 56.16 16.5 21.212 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-288O 30 189 2.008 EN 10270-1 260.008 59.48 129.52 39.8 | 80.2 | 31.1 | 8.1 D-272 27.5 165 2.038 EN 10270-1 234.72 49.8 115.2 40.2 | 79.5 | 32.8 | 8.3 D-288Z-23 33 157 2.445 EN 10270-1 254.586 52.88 104.13 43.0 | 83.0 | 36.1 | 9.9 D-298E 33 148 2.99 EN 10270-1 264.505 59.54 88.46 45.3 | 82.5 | 41.3 | 12.1 D-288Z-45 27 170 3.227 EN 10270-1 314.989 72.38 97.62 44.9 | 81.4 | 40.1 | 13.1 D-288Z-34 28 142 4.225 EN 10270-1 383.811 51.16 90.84 47.5 | 80.7 | 44.7 | 17.1 D-302 28.2 135 5.469 EN 10270-1 442.679 54.06 80.94 51.2 | 80.8 | 50.7 | 22.1 D-334A 29 185 7.418 EN 10270-1 539.508 112.27 72.73 58.6 | 87.7 | 58.1 | 30.0 D-334 29 185 9.022 EN 10270-1 823.409 93.74 91.26 61.6 | 87.7 | 60.5 | 36.5 D-339R 32 154 12.959 EN 10270-1 834.173 89.63 64.37 73.2 | 93.3 | 73.7 | 52.5 D-359A-07 34 166 16.317 EN 10270-1 1043.672 102.04 63.96 80.8 | 94.9 | 81.5 | 66.1 D-364A 30 180 18.111 EN 10270-1 761.233 137.97 42.03 78.2 | 96.3 | 64.9 | 73.3 D-359A-06 34 147 18.648 EN 10270-1 1052.995 90.53 56.47 85.5 | 93.4 | 87.7 | 75.5 D-364 30 180 22.027 EN 10270-1 1426.938 115.22 64.78 92.5 | 96.3 | 91.9 | 89.2 D-363A 30 160 24.697 EN 10270-1 1386.889 103.84 56.16 100.0 | 100.0 | 100.0 | 100.0 D-364R-18 28 170 44.238 EN 10270-1 1969.525 125.48 44.52 74.5 | 92.8 | 74.8 | 55.8 D-389R 34 166 80.175 EN 10270-1 2423.572 135.77 30.23 57.2 | 85.3 | 55.5 | 30.8 D-389AA 30 150 96.638 EN 10270-1 3041.893 118.52 31.48 55.5 | 90.2 | 50.8 | 25.6 Number of similar metal springs: 17 Customs tariff number: 73202081; Compression spring D-363A Country of origin: DE, German; Compression spring D-363A Product image - Compression springs D-363A QR-Code: Compression spring D-363A
