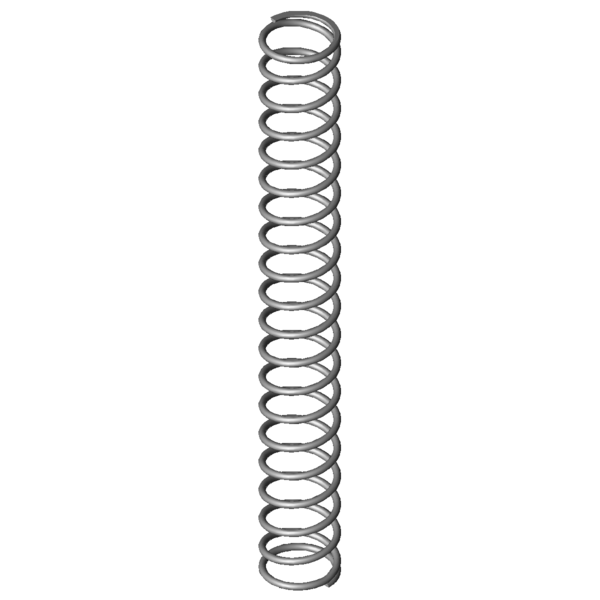

Home » Products » Compression springs » vd-298 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-298 Stainless steel Ø 3.2 x 32 x 280 mm Scaled prices - Compression spring VD-298 Quantity Single price [EUR] 1 6.3100 EUR 2 4.4500 EUR 3 4.2400 EUR 7 3.4500 EUR 17 2.2200 EUR 37 1.7500 EUR 75 1.6000 EUR Compression spring Buy Product image Compression spring VD-298 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-298 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.2 mm Wire diameter Di mm Inner coil diameter D 32 mm Mean coil diameter De 35.2 mm Outer coil diameter Dd 27.8 mm maximum diameter of mandrel Dh 36.9 mm minimum diameter of bush L0 280 mm unstressed spring length Lk 235.4 mm buckling length Fn 302.097 N maximum force in static use Ln 80.4 mm Minimum length in static use sn 199.6 mm Maximum spring deflection in static use Fndyn 274.703 N maximum force in dynamic use Lndyn 98.5 mm Minimum length in dynamic use shdyn 37.57 mm Maximum stroke in dynamic use S 14.962 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 1.514 N/mm Spring rate Weight 131.0159 g weight of one spring Fntol 15.6 N (+/-) tolerance of maximum force in static use Fndtol 15.4 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 5.86 mm (+/-) tolerance of unstressed spring length Price group S - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-298 Stainless steel Ø 3.2 x 32 x 280 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-298 Stainless steel Ø 3.2 x 32 x 280 mm Metal spring characteristic download pdf file CAD data Compression spring VD-298 Stainless steel Ø 3.2 x 32 x 280 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-298 Stainless steel Ø 3.2 x 32 x 280 mm force-path-calculation Compression spring VD-298 Inquiry formular Compression spring VD-298 Stainless steel Ø 3.2 x 32 x 280 mm Inquiry formular Compression spring VD-298 Similar compression springs to Compression spring VD-298 Stainless steel Ø 3.2 x 32 x 280 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-298 1.4310 3.2 35.2 280 302.097 80.4 199.6 18.5 1.514 100.0 | 100.0 | 100.0 | 100.0 D-298A EN 10270-1 3.2 35.2 280 266.016 96.4 183.6 22.5 1.449 43.2 | 75.6 | 43.4 | 10.7 D-298 EN 10270-1 3.2 35.2 280 351.728 80.4 199.6 18.5 1.762 43.8 | 75.6 | 42.9 | 13.0 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207O 28 292 0.201 1.4310 50.547 40.61 251.39 45.5 | 75.1 | 48.1 | 13.3 VD-232J 30 294 0.264 1.4310 65.915 44.56 249.44 49.1 | 78.9 | 50.9 | 17.5 VD-234K 34 332 0.276 1.4310 77.73 50 282 49.2 | 81.1 | 48.3 | 18.2 VD-239A 27 290 0.398 1.4310 89.98 64.05 225.95 54.7 | 78.6 | 59.1 | 26.3 VD-234J 34 205 0.45 1.4310 77.716 32.2 172.8 54.4 | 77.4 | 56.1 | 29.7 VD-263G 38 228 0.47 1.4310 90.432 35.69 192.31 58.4 | 80.9 | 63.1 | 31.1 VD-239 27 290 0.484 1.4310 107.762 67.5 222.5 57.8 | 78.6 | 62.7 | 32.0 VD-267A 34.5 245 0.564 1.4310 100.225 67.24 177.76 62.1 | 87.9 | 61.1 | 37.3 VD-292A 43.2 275 0.775 1.4310 146.929 85.4 189.61 72.1 | 93.2 | 71.8 | 51.2 VD-267 34.5 245 0.834 1.4310 159.633 53.7 191.3 72.5 | 87.9 | 74.3 | 55.1 VD-288Z-15 37 279 0.975 1.4310 196.171 77.74 201.26 80.9 | 96.2 | 82.1 | 64.4 VD-292 43.2 275 1.147 1.4310 246.837 59.78 215.23 85.4 | 93.2 | 87.2 | 75.8 VD-298A 35.2 280 1.244 1.4310 228.48 96.4 183.6 88.7 | 100.0 | 83.8 | 82.2 VD-288Z-24 33 229 1.419 1.4310 217.981 75.38 153.63 86.0 | 89.8 | 74.6 | 93.7 VD-298 35.2 280 1.514 1.4310 302.097 80.4 199.6 100.0 | 100.0 | 100.0 | 100.0 VD-297B 35.2 230 1.6 1.4310 245.76 76.4 153.6 89.3 | 94.0 | 79.2 | 94.6 VD-313J 40 248 1.966 1.4310 335.916 77.14 170.86 84.4 | 88.5 | 87.8 | 77.0 VD-329BH 34 330 2.273 1.4310 338.855 180.92 149.08 78.6 | 87.1 | 81.9 | 66.6 VD-329A 36 250 3.038 1.4310 408.212 115.64 134.36 69.8 | 89.0 | 70.7 | 49.8 VD-329 36 250 3.695 1.4310 567.183 96.5 153.5 65.0 | 89.0 | 65.1 | 41.0 VD-359A 37 230 7.417 1.4310 662.662 140.66 89.34 48.7 | 80.4 | 45.2 | 20.4 VD-359 37 230 9.021 1.4310 1015.493 117.43 112.57 46.8 | 80.4 | 43.1 | 16.8 VD-359A-09 34 206 11.212 1.4310 907.617 125.05 80.95 42.8 | 78.1 | 36.9 | 13.5 VD-359A-20 32 300 11.577 1.4310 1322.64 185.75 114.25 45.3 | 82.7 | 40.0 | 13.1 VD-364R-12 39 254 15.462 1.4310 1617.333 149.4 104.6 41.3 | 78.7 | 35.5 | 9.8 VD-389A 38.3 225 18.696 1.4310 953.272 174.01 50.99 37.0 | 74.4 | 28.6 | 8.1 VD-389 38.3 225 22.738 1.4310 1811.851 145.32 79.68 36.4 | 74.4 | 28.3 | 6.7 VD-389A-12 39 254 24.057 1.4310 1809.619 178.78 75.22 36.6 | 76.2 | 27.2 | 6.3 Number of similar metal springs: 27 Customs tariff number: 73202081; Compression spring VD-298 Country of origin: DE, German; Compression spring VD-298 Product image - Compression springs VD-298 QR-Code: Compression spring VD-298
