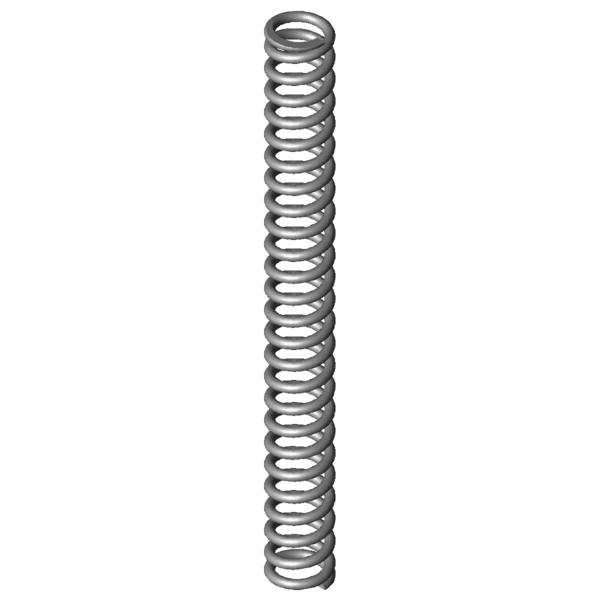

Home » Products » Compression springs » vd-359a-20 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-359A-20 Stainless steel Ø 5 x 27 x 300 mm Scaled prices - Compression spring VD-359A-20 Quantity Single price [EUR] 1 14.1400 EUR 2 11.2600 EUR 3 6.8900 EUR 7 4.8200 EUR 17 3.2500 EUR 37 2.7900 EUR 75 2.7600 EUR 125 2.7600 EUR 175 2.7600 EUR 250 2.7600 EUR 350 2.7600 EUR Compression spring Buy Product image Compression spring VD-359A-20 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-359A-20 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 27 mm Mean coil diameter De 32 mm Outer coil diameter Dd 21.1 mm maximum diameter of mandrel Dh 32.3 mm minimum diameter of bush L0 300 mm unstressed spring length Lk 271.6 mm buckling length Fn 1322.64 N maximum force in static use Ln 185.75 mm Minimum length in static use sn 114.25 mm Maximum spring deflection in static use Fndyn 1036.116 N maximum force in dynamic use Lndyn 210.5 mm Minimum length in dynamic use shdyn 16.29 mm Maximum stroke in dynamic use S 12.292 mm pitch of spring n 24 pc. number of active coils nt pc. total number of coils R 11.577 N/mm Spring rate Weight 342.2924 g weight of one spring Fntol 84.68 N (+/-) tolerance of maximum force in static use Fndtol 82.4 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 4.2 mm (+/-) tolerance of unstressed spring length Price group #AJ - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-359A-20 Stainless steel Ø 5 x 27 x 300 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-359A-20 Stainless steel Ø 5 x 27 x 300 mm Metal spring characteristic download pdf file CAD data Compression spring VD-359A-20 Stainless steel Ø 5 x 27 x 300 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-359A-20 Stainless steel Ø 5 x 27 x 300 mm force-path-calculation Compression spring VD-359A-20 Inquiry formular Compression spring VD-359A-20 Stainless steel Ø 5 x 27 x 300 mm Inquiry formular Compression spring VD-359A-20 Similar compression springs to Compression spring VD-359A-20 Stainless steel Ø 5 x 27 x 300 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-359A-20 1.4310 5 32 300 1322.64 185.75 114.25 24 11.577 100.0 | 100.0 | 100.0 | 100.0 D-359A-20 EN 10270-1 5 32 300 1504.887 188.35 111.65 24 13.479 92.9 | 100.0 | 92.8 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-267A 34.5 245 0.564 1.4310 100.225 67.24 177.76 38.5 | 74.8 | 35.9 | 4.9 VD-267 34.5 245 0.834 1.4310 159.633 53.7 191.3 39.3 | 74.8 | 35.9 | 7.2 VD-273A 27.5 240 0.972 1.4310 160.113 75.31 164.69 40.4 | 72.0 | 40.7 | 8.4 VD-288Z-15 37 279 0.975 1.4310 196.171 77.74 201.26 41.3 | 79.8 | 35.8 | 8.4 VD-273 27.5 240 1.182 1.4310 204.561 67 173 41.0 | 72.0 | 40.8 | 10.2 VD-298A 35.2 280 1.244 1.4310 228.48 96.4 183.6 44.4 | 82.7 | 39.8 | 10.7 VD-288Z-24 33 229 1.419 1.4310 217.981 75.38 153.63 45.1 | 77.8 | 45.4 | 12.3 VD-298 35.2 280 1.514 1.4310 302.097 80.4 199.6 45.3 | 82.7 | 40.0 | 13.1 VD-297B 35.2 230 1.6 1.4310 245.76 76.4 153.6 45.8 | 77.2 | 46.5 | 13.8 VD-329BH 34 330 2.273 1.4310 338.855 180.92 149.08 53.0 | 88.3 | 51.1 | 19.6 VD-329A 36 250 3.038 1.4310 408.212 115.64 134.36 56.1 | 84.1 | 57.9 | 26.2 VD-329 36 250 3.695 1.4310 567.183 96.5 153.5 58.2 | 84.1 | 58.7 | 31.9 VD-359 37 230 9.021 1.4310 1015.493 117.43 112.57 84.4 | 87.7 | 87.7 | 77.9 VD-359A-09 34 206 11.212 1.4310 907.617 125.05 80.95 84.7 | 87.6 | 69.7 | 96.9 VD-359A-20 32 300 11.577 1.4310 1322.64 185.75 114.25 100.0 | 100.0 | 100.0 | 100.0 VD-364R-12 39 254 15.462 1.4310 1617.333 149.4 104.6 81.9 | 84.3 | 86.7 | 74.9 VD-364R-21 28 375 17.356 1.4310 1967.909 261.62 113.38 78.7 | 86.1 | 83.2 | 66.7 VD-364R-20 28 345 17.796 1.4310 1593.981 255.43 89.57 78.1 | 88.5 | 80.7 | 65.1 VD-389A-12 39 254 24.057 1.4310 1809.619 178.78 75.22 66.0 | 80.4 | 69.5 | 48.1 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring VD-359A-20 Country of origin: DE, German; Compression spring VD-359A-20 Product image - Compression springs VD-359A-20 QR-Code: Compression spring VD-359A-20
