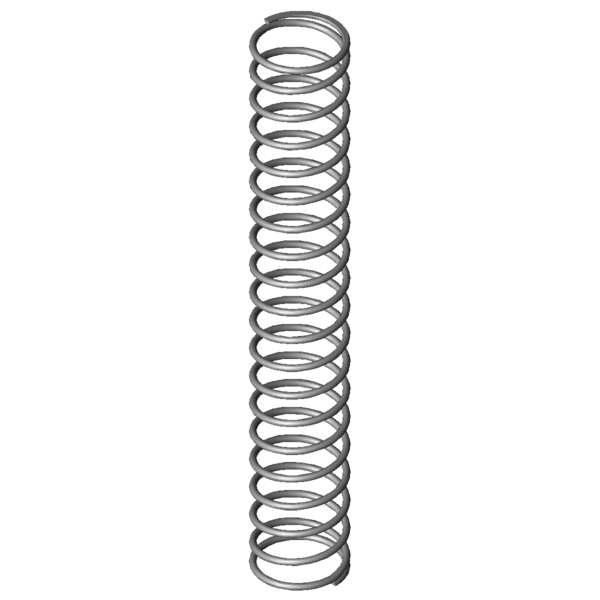

Home » Products » Compression springs » vd-292a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-292A Stainless steel Ø 3.2 x 40 x 275 mm Scaled prices - Compression spring VD-292A Quantity Single price [EUR] 1 6.3100 EUR 2 4.4500 EUR 3 4.2400 EUR 7 3.4500 EUR 17 2.2200 EUR 37 1.7500 EUR 75 1.6000 EUR Compression spring Buy Product image Compression spring VD-292A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-292A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.2 mm Wire diameter Di mm Inner coil diameter D 40 mm Mean coil diameter De 43.2 mm Outer coil diameter Dd 35.8 mm maximum diameter of mandrel Dh 45.3 mm minimum diameter of bush L0 275 mm unstressed spring length Lk 197.7 mm buckling length Fn 146.929 N maximum force in static use Ln 85.4 mm Minimum length in static use sn 189.61 mm Maximum spring deflection in static use Fndyn 139.261 N maximum force in dynamic use Lndyn 95.29 mm Minimum length in dynamic use shdyn 126.89 mm Maximum stroke in dynamic use S 14.692 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 0.775 N/mm Spring rate Weight 163.7699 g weight of one spring Fntol 11.76 N (+/-) tolerance of maximum force in static use Fndtol 11.63 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 10.19 mm (+/-) tolerance of unstressed spring length Price group S - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-292A Stainless steel Ø 3.2 x 40 x 275 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-292A Stainless steel Ø 3.2 x 40 x 275 mm Metal spring characteristic download pdf file CAD data Compression spring VD-292A Stainless steel Ø 3.2 x 40 x 275 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-292A Stainless steel Ø 3.2 x 40 x 275 mm force-path-calculation Compression spring VD-292A Inquiry formular Compression spring VD-292A Stainless steel Ø 3.2 x 40 x 275 mm Inquiry formular Compression spring VD-292A Similar compression springs to Compression spring VD-292A Stainless steel Ø 3.2 x 40 x 275 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-292A 1.4310 3.2 43.2 275 146.929 85.4 189.61 18.5 0.775 100.0 | 100.0 | 100.0 | 100.0 D-292A EN 10270-1 3.2 43.2 275 171.067 85.4 189.61 18.5 0.902 92.9 | 100.0 | 92.9 | 85.9 D-292 EN 10270-1 3.2 43.2 275 287.389 59.78 215.23 12.5 1.335 75.9 | 100.0 | 69.6 | 58.0 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207JD 35.5 260 0.09 1.4310 20.009 38.08 221.93 45.2 | 74.5 | 49.5 | 11.6 VD-263V-22 46 330 0.308 1.4310 83.832 57.45 272.55 62.7 | 85.1 | 63.3 | 39.7 VD-263Y 42 240 0.584 1.4310 116.746 40.02 199.98 83.3 | 87.5 | 87.1 | 75.3 VD-288J 48 273 0.613 1.4310 139.619 45.26 227.74 86.8 | 92.3 | 89.1 | 79.1 VD-288X-23 48 295 0.622 1.4310 146.281 59.91 235.09 87.6 | 92.3 | 90.1 | 80.3 VD-289C-04 48 275 0.756 1.4310 157.505 66.62 208.38 95.4 | 96.7 | 92.1 | 97.5 VD-292A 43.2 275 0.775 1.4310 146.929 85.4 189.61 100.0 | 100.0 | 100.0 | 100.0 VD-288Z-15 37 279 0.975 1.4310 196.171 77.74 201.26 85.6 | 92.7 | 84.6 | 79.5 VD-292 43.2 275 1.147 1.4310 246.837 59.78 215.23 80.5 | 100.0 | 73.8 | 67.6 VD-313E-14 48 280 1.199 1.4310 246.896 74.14 205.86 77.6 | 92.4 | 75.8 | 64.6 VD-298A 35.2 280 1.244 1.4310 228.48 96.4 183.6 78.7 | 93.2 | 80.6 | 62.3 VD-298 35.2 280 1.514 1.4310 302.097 80.4 199.6 72.1 | 93.2 | 71.8 | 51.2 VD-323A 44 340 1.556 1.4310 341.444 120.5 219.5 67.0 | 86.4 | 64.7 | 49.8 VD-318E 49 243 1.821 1.4310 301.076 77.65 165.35 65.4 | 85.5 | 68.0 | 42.6 VD-322A 44 235 1.892 1.4310 254.459 100.5 134.5 64.4 | 87.9 | 64.3 | 41.0 VD-323 44 340 1.892 1.4310 453.108 100.5 239.5 61.0 | 86.4 | 55.8 | 41.0 VD-313J 40 248 1.966 1.4310 335.916 77.14 170.86 65.6 | 90.6 | 66.9 | 39.4 VD-339N 50 299 2.457 1.4310 497.836 96.42 202.58 58.7 | 83.2 | 61.6 | 31.5 VD-322 44 235 2.8 1.4310 460.6 70.5 164.5 58.3 | 87.9 | 59.3 | 27.7 VD-329A 36 250 3.038 1.4310 408.212 115.64 134.36 54.6 | 84.7 | 53.4 | 25.5 VD-329 36 250 3.695 1.4310 567.183 96.5 153.5 53.0 | 84.7 | 53.4 | 21.0 VD-354A 45 300 3.798 1.4310 590.359 144.55 155.45 52.6 | 83.9 | 53.4 | 20.4 Number of similar metal springs: 21 Customs tariff number: 73202081; Compression spring VD-292A Country of origin: DE, German; Compression spring VD-292A Product image - Compression springs VD-292A QR-Code: Compression spring VD-292A
