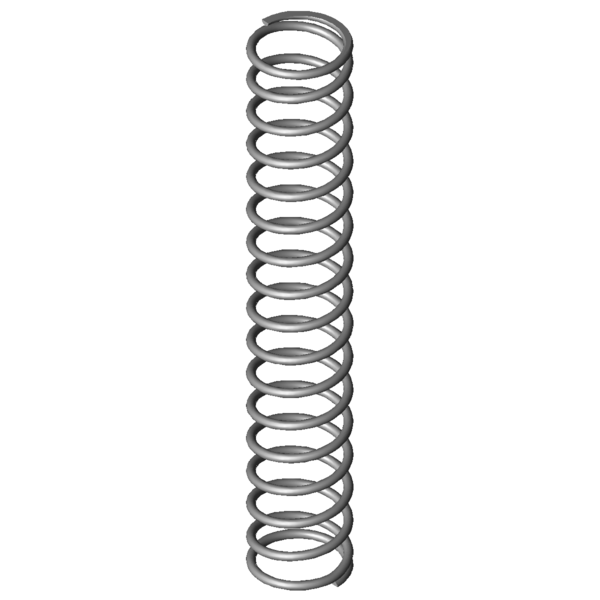

Home » Products » Compression springs » vd-339n Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339N Stainless steel Ø 4.5 x 45.5 x 299 mm Scaled prices - Compression spring VD-339N Quantity Single price [EUR] 1 15.4300 EUR 2 12.3000 EUR 3 8.1000 EUR 7 6.2800 EUR 17 4.6900 EUR 37 4.0400 EUR 75 3.9700 EUR 125 3.9700 EUR 175 3.9700 EUR 250 3.9700 EUR 350 3.9700 EUR Compression spring Buy Product image Compression spring VD-339N Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339N Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 45.5 mm Mean coil diameter De 50 mm Outer coil diameter Dd 39.7 mm maximum diameter of mandrel Dh 52 mm minimum diameter of bush L0 299 mm unstressed spring length Lk 204.7 mm buckling length Fn 497.836 N maximum force in static use Ln 96.42 mm Minimum length in static use sn 202.58 mm Maximum spring deflection in static use Fndyn 476.115 N maximum force in dynamic use Lndyn 105.26 mm Minimum length in dynamic use shdyn 42.57 mm Maximum stroke in dynamic use S 19 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 2.457 N/mm Spring rate Weight 314.4812 g weight of one spring Fntol 27.3 N (+/-) tolerance of maximum force in static use Fndtol 26.92 N (+/-) tolerance of maximum dynamic force Detol 0.8 mm (+/-) tolerances of outer coil diameter L0tol 6.5 mm (+/-) tolerance of unstressed spring length Price group #AO - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339N Stainless steel Ø 4.5 x 45.5 x 299 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339N Stainless steel Ø 4.5 x 45.5 x 299 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339N Stainless steel Ø 4.5 x 45.5 x 299 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339N Stainless steel Ø 4.5 x 45.5 x 299 mm force-path-calculation Compression spring VD-339N Inquiry formular Compression spring VD-339N Stainless steel Ø 4.5 x 45.5 x 299 mm Inquiry formular Compression spring VD-339N Similar compression springs to Compression spring VD-339N Stainless steel Ø 4.5 x 45.5 x 299 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339N 1.4310 4.5 50 299 497.836 96.42 202.58 15.5 2.457 100.0 | 100.0 | 100.0 | 100.0 D-339N EN 10270-1 4.5 50 299 579.623 96.42 202.58 15.5 2.861 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-288J 48 273 0.613 1.4310 139.619 45.26 227.74 55.5 | 83.2 | 58.5 | 24.9 VD-288X-23 48 295 0.622 1.4310 146.281 59.91 235.09 56.7 | 87.1 | 57.8 | 25.3 VD-289B 55 307 0.695 1.4310 177.335 51.79 255.21 57.4 | 86.5 | 57.5 | 28.3 VD-289C-04 48 275 0.756 1.4310 157.505 66.62 208.38 60.5 | 86.4 | 64.4 | 30.8 VD-292A 43.2 275 0.775 1.4310 146.929 85.4 189.61 58.7 | 83.2 | 61.6 | 31.5 VD-313D 60 319 0.862 1.4310 225.567 57.41 261.59 60.7 | 85.7 | 61.4 | 35.1 VD-317A 54 335 0.969 1.4310 221.1 106.74 228.26 65.4 | 90.2 | 66.6 | 39.4 VD-292 43.2 275 1.147 1.4310 246.837 59.78 215.23 67.2 | 83.2 | 71.9 | 46.7 VD-313E-14 48 280 1.199 1.4310 246.896 74.14 205.86 70.9 | 89.9 | 74.0 | 48.8 VD-317 54 335 1.434 1.4310 373.139 74.72 260.28 75.0 | 90.2 | 76.4 | 58.3 VD-323A 44 340 1.556 1.4310 341.444 120.5 219.5 77.3 | 88.3 | 80.4 | 63.3 VD-318E 49 243 1.821 1.4310 301.076 77.65 165.35 78.2 | 89.4 | 71.0 | 74.1 VD-323 44 340 1.892 1.4310 453.108 100.5 239.5 84.4 | 88.3 | 87.8 | 77.0 VD-348A 55 280 2.365 1.4310 365.076 125.63 154.38 87.5 | 91.5 | 74.8 | 96.2 VD-339N 50 299 2.457 1.4310 497.836 96.42 202.58 100.0 | 100.0 | 100.0 | 100.0 VD-348 55 280 3.5 1.4310 671.563 88.13 191.88 82.1 | 91.5 | 84.4 | 70.2 VD-354A 45 300 3.798 1.4310 590.359 144.55 155.45 79.5 | 93.2 | 80.5 | 64.7 VD-354 45 300 4.619 1.4310 828.488 120.63 179.37 73.6 | 93.2 | 74.3 | 53.2 VD-378A 56.3 250 5.961 1.4310 585.228 151.82 98.18 63.1 | 81.3 | 66.8 | 41.2 VD-378 56.3 250 8.822 1.4310 1264.448 106.67 143.33 54.7 | 81.3 | 55.1 | 27.9 VD-384A 46.3 280 9.572 1.4310 985.004 177.1 102.9 54.1 | 85.9 | 50.7 | 25.7 VD-384 46.3 280 11.642 1.4310 1538.428 147.85 132.15 51.9 | 85.9 | 48.8 | 21.1 VD-389NA 50 265 15.099 1.4310 1650.599 155.68 109.32 47.5 | 84.3 | 42.1 | 16.3 VD-409 58 340 15.498 1.4310 2363.939 187.47 152.53 46.9 | 76.8 | 48.2 | 15.9 VD-389N 50 228 17.048 1.4310 1508.86 139.49 88.51 44.3 | 80.2 | 38.3 | 14.4 VD-389N-05 46 236 22.135 1.4310 2071.54 142.41 93.59 41.5 | 78.4 | 35.1 | 11.1 VD-414 48 275 30.27 1.4310 2744 184.35 90.65 40.3 | 81.4 | 31.4 | 8.1 VD-413A 48 248 30.27 1.4310 1926.703 184.35 63.65 38.4 | 78.4 | 28.6 | 8.1 VD-414M-05 57 276 30.536 1.4310 2539.701 192.83 83.17 38.4 | 76.7 | 30.3 | 8.0 VD-447 50 239 88.206 1.4310 3949.849 194.22 44.78 31.7 | 75.0 | 17.4 | 2.8 Number of similar metal springs: 29 Customs tariff number: 73202081; Compression spring VD-339N Country of origin: DE, German; Compression spring VD-339N Product image - Compression springs VD-339N QR-Code: Compression spring VD-339N
