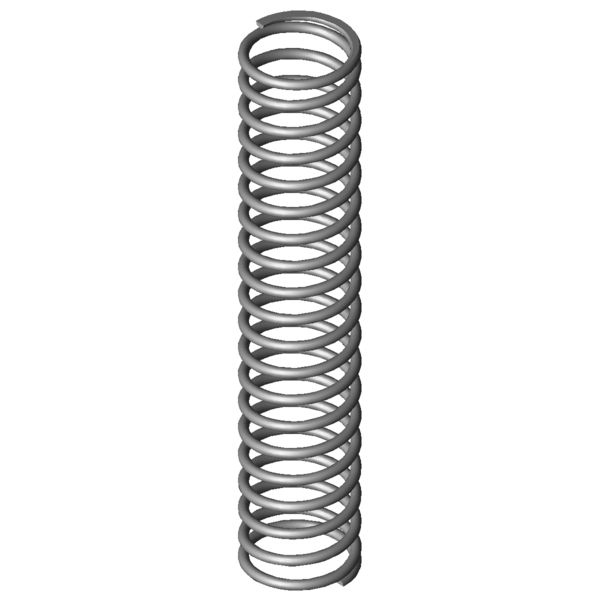

Home » Products » Compression springs » vd-348a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-348A Stainless steel Ø 5 x 50 x 280 mm Scaled prices - Compression spring VD-348A Quantity Single price [EUR] 1 14.5700 EUR 2 11.6100 EUR 3 7.2800 EUR 7 5.4200 EUR 17 3.8200 EUR 37 3.3100 EUR 75 3.2400 EUR 125 3.2400 EUR 175 3.2400 EUR 250 3.2400 EUR 350 3.2400 EUR Compression spring Buy Product image Compression spring VD-348A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-348A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 50 mm Mean coil diameter De 55 mm Outer coil diameter Dd 43.7 mm maximum diameter of mandrel Dh 56.8 mm minimum diameter of bush L0 280 mm unstressed spring length Lk 138.22 mm buckling length Fn 365.076 N maximum force in static use Ln 125.63 mm Minimum length in static use sn 154.38 mm Maximum spring deflection in static use Fndyn 337.726 N maximum force in dynamic use Lndyn 137.19 mm Minimum length in dynamic use shdyn 115.71 mm Maximum stroke in dynamic use S 14.865 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 2.365 N/mm Spring rate Weight 499.786 g weight of one spring Fntol 28.41 N (+/-) tolerance of maximum force in static use Fndtol 27.93 N (+/-) tolerance of maximum dynamic force Detol 0.8 mm (+/-) tolerances of outer coil diameter L0tol 8 mm (+/-) tolerance of unstressed spring length Price group #AL - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-348A Stainless steel Ø 5 x 50 x 280 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-348A Stainless steel Ø 5 x 50 x 280 mm Metal spring characteristic download pdf file CAD data Compression spring VD-348A Stainless steel Ø 5 x 50 x 280 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-348A Stainless steel Ø 5 x 50 x 280 mm force-path-calculation Compression spring VD-348A Inquiry formular Compression spring VD-348A Stainless steel Ø 5 x 50 x 280 mm Inquiry formular Compression spring VD-348A Similar compression springs to Compression spring VD-348A Stainless steel Ø 5 x 50 x 280 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-348A 1.4310 5 55 280 365.076 125.63 154.38 18.5 2.365 100.0 | 100.0 | 100.0 | 100.0 D-348A EN 10270-1 5 55 280 425.053 125.63 154.38 18.5 2.753 92.9 | 100.0 | 92.9 | 85.9 D-348 EN 10270-1 5 55 280 781.891 88.13 191.88 12.5 4.075 73.9 | 100.0 | 63.6 | 58.0 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-288J 48 273 0.613 1.4310 139.619 45.26 227.74 53.1 | 80.3 | 53.0 | 25.9 VD-288X-23 48 295 0.622 1.4310 146.281 59.91 235.09 53.3 | 80.7 | 52.9 | 26.3 VD-289B 55 307 0.695 1.4310 177.335 51.79 255.21 56.3 | 85.1 | 54.5 | 29.4 VD-289C-04 48 275 0.756 1.4310 157.505 66.62 208.38 57.9 | 83.2 | 58.6 | 32.0 VD-292A 43.2 275 0.775 1.4310 146.929 85.4 189.61 58.0 | 80.3 | 60.8 | 32.8 VD-313D 60 319 0.862 1.4310 225.567 57.41 261.59 60.2 | 83.8 | 60.4 | 36.5 VD-317A 54 335 0.969 1.4310 221.1 106.74 228.26 64.1 | 87.3 | 64.1 | 41.0 VD-292 43.2 275 1.147 1.4310 246.837 59.78 215.23 66.1 | 80.3 | 69.7 | 48.5 VD-313E-14 48 280 1.199 1.4310 246.896 74.14 205.86 69.5 | 86.4 | 71.3 | 50.7 VD-317 54 335 1.434 1.4310 373.139 74.72 260.28 75.5 | 87.3 | 78.6 | 60.6 VD-318E 49 243 1.821 1.4310 301.076 77.65 165.35 83.4 | 85.3 | 87.9 | 77.0 VD-316 54 230 2.108 1.4310 372.38 53.37 176.63 89.5 | 86.8 | 92.7 | 89.2 VD-348A 55 280 2.365 1.4310 365.076 125.63 154.38 100.0 | 100.0 | 100.0 | 100.0 VD-339N 50 299 2.457 1.4310 497.836 96.42 202.58 87.5 | 91.5 | 74.8 | 96.2 VD-347A 55 235 3.241 1.4310 455.729 94.38 140.63 84.4 | 94.6 | 85.6 | 73.0 VD-348 55 280 3.5 1.4310 671.563 88.13 191.88 78.3 | 100.0 | 67.4 | 67.6 VD-354 45 300 4.619 1.4310 828.488 120.63 179.37 69.3 | 91.7 | 65.1 | 51.2 VD-378A 56.3 250 5.961 1.4310 585.228 151.82 98.18 63.8 | 88.8 | 63.0 | 39.7 VD-377A 56.3 217 8.168 1.4310 839.767 114.19 102.81 56.3 | 84.9 | 55.0 | 29.0 VD-378 56.3 250 8.822 1.4310 1264.448 106.67 143.33 58.8 | 88.8 | 60.9 | 26.8 VD-384A 46.3 280 9.572 1.4310 985.004 177.1 102.9 54.8 | 87.8 | 51.9 | 24.7 VD-384 46.3 280 11.642 1.4310 1538.428 147.85 132.15 54.3 | 87.8 | 54.7 | 20.3 VD-389NA 50 265 15.099 1.4310 1650.599 155.68 109.32 49.3 | 85.7 | 46.5 | 15.7 VD-408 58 230 22.938 1.4310 2251.11 131.86 98.14 43.3 | 79.8 | 39.9 | 10.3 VD-414M 63 281 23.522 1.4310 2399.593 178.98 102.02 43.8 | 80.8 | 40.6 | 10.1 VD-414 48 275 30.27 1.4310 2744 184.35 90.65 42.2 | 82.7 | 36.0 | 7.8 VD-413A 48 248 30.27 1.4310 1926.703 184.35 63.65 39.1 | 79.4 | 30.1 | 7.8 VD-414M-05 57 276 30.536 1.4310 2539.701 192.83 83.17 41.8 | 83.5 | 34.1 | 7.7 Number of similar metal springs: 27 Customs tariff number: 73202081; Compression spring VD-348A Country of origin: DE, German; Compression spring VD-348A Product image - Compression springs VD-348A QR-Code: Compression spring VD-348A
