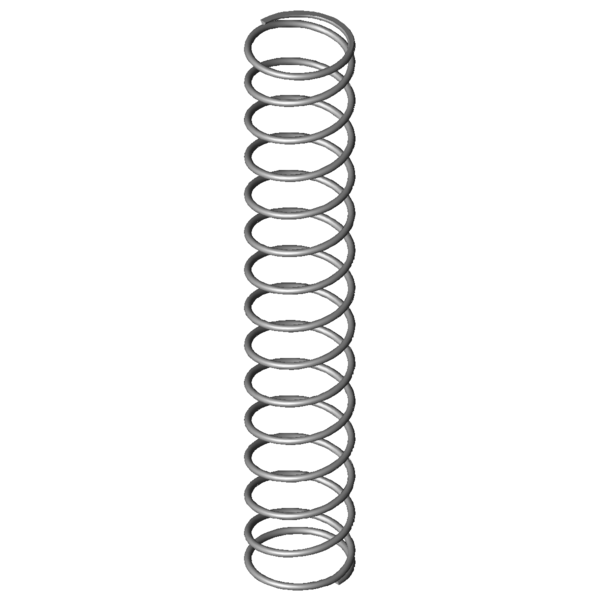

Home » Products » Compression springs » vd-289c-04 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-289C-04 Stainless steel Ø 3.2 x 44.8 x 275 mm Scaled prices - Compression spring VD-289C-04 Quantity Single price [EUR] 1 6.3100 EUR 2 4.4500 EUR 3 4.2400 EUR 7 3.4500 EUR 17 2.2200 EUR 37 1.7500 EUR 75 1.6000 EUR Compression spring Buy Product image Compression spring VD-289C-04 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-289C-04 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.2 mm Wire diameter Di mm Inner coil diameter D 44.8 mm Mean coil diameter De 48 mm Outer coil diameter Dd 40.4 mm maximum diameter of mandrel Dh 50 mm minimum diameter of bush L0 275 mm unstressed spring length Lk 170.6 mm buckling length Fn 157.505 N maximum force in static use Ln 66.62 mm Minimum length in static use sn 208.38 mm Maximum spring deflection in static use Fndyn 151.073 N maximum force in dynamic use Lndyn 75.13 mm Minimum length in dynamic use shdyn 100.51 mm Maximum stroke in dynamic use S 20.133 mm pitch of spring n 13.5 pc. number of active coils nt pc. total number of coils R 0.756 N/mm Spring rate Weight 138.6851 g weight of one spring Fntol 11.99 N (+/-) tolerance of maximum force in static use Fndtol 11.87 N (+/-) tolerance of maximum dynamic force Detol 0.8 mm (+/-) tolerances of outer coil diameter L0tol 10.49 mm (+/-) tolerance of unstressed spring length Price group S - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-289C-04 Stainless steel Ø 3.2 x 44.8 x 275 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-289C-04 Stainless steel Ø 3.2 x 44.8 x 275 mm Metal spring characteristic download pdf file CAD data Compression spring VD-289C-04 Stainless steel Ø 3.2 x 44.8 x 275 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-289C-04 Stainless steel Ø 3.2 x 44.8 x 275 mm force-path-calculation Compression spring VD-289C-04 Inquiry formular Compression spring VD-289C-04 Stainless steel Ø 3.2 x 44.8 x 275 mm Inquiry formular Compression spring VD-289C-04 Similar compression springs to Compression spring VD-289C-04 Stainless steel Ø 3.2 x 44.8 x 275 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-289C-04 1.4310 3.2 48 275 157.505 66.62 208.38 13.5 0.756 100.0 | 100.0 | 100.0 | 100.0 D-289C-04 EN 10270-1 3.2 48 275 183.381 66.62 208.38 13.5 0.88 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263V-22 46 330 0.308 1.4310 83.832 57.45 272.55 63.8 | 85.8 | 64.8 | 40.7 VD-263Y 42 240 0.584 1.4310 116.746 40.02 199.98 82.2 | 84.3 | 85.0 | 77.2 VD-288J 48 273 0.613 1.4310 139.619 45.26 227.74 88.9 | 95.6 | 90.1 | 81.1 VD-288X-23 48 295 0.622 1.4310 146.281 59.91 235.09 89.6 | 95.7 | 90.8 | 82.3 VD-289B 55 307 0.695 1.4310 177.335 51.79 255.21 89.8 | 92.3 | 85.2 | 91.9 VD-289C-04 48 275 0.756 1.4310 157.505 66.62 208.38 100.0 | 100.0 | 100.0 | 100.0 VD-292A 43.2 275 0.775 1.4310 146.929 85.4 189.61 95.4 | 96.7 | 92.1 | 97.5 VD-288X-22 48 203 0.915 1.4310 146.72 42.66 160.34 85.6 | 89.2 | 85.0 | 82.6 VD-288Z-15 37 279 0.975 1.4310 196.171 77.74 201.26 85.3 | 89.8 | 88.4 | 77.5 VD-292 43.2 275 1.147 1.4310 246.837 59.78 215.23 81.0 | 96.7 | 80.3 | 65.9 VD-313E-14 48 280 1.199 1.4310 246.896 74.14 205.86 80.0 | 95.7 | 81.3 | 63.0 VD-318E 49 243 1.821 1.4310 301.076 77.65 165.35 65.4 | 88.8 | 65.8 | 41.5 VD-322A 44 235 1.892 1.4310 254.459 100.5 134.5 63.0 | 85.7 | 63.2 | 40.0 VD-348A 55 280 2.365 1.4310 365.076 125.63 154.38 57.9 | 83.2 | 58.6 | 32.0 VD-339N 50 299 2.457 1.4310 497.836 96.42 202.58 60.5 | 86.4 | 64.4 | 30.8 VD-322 44 235 2.8 1.4310 460.6 70.5 164.5 56.4 | 85.7 | 56.6 | 27.0 VD-348 55 280 3.5 1.4310 671.563 88.13 191.88 54.2 | 83.2 | 57.8 | 21.6 VD-354A 45 300 3.798 1.4310 590.359 144.55 155.45 51.2 | 83.1 | 50.6 | 19.9 VD-354 45 300 4.619 1.4310 828.488 120.63 179.37 50.7 | 83.1 | 52.5 | 16.4 VD-378A 56.3 250 5.961 1.4310 585.228 151.82 98.18 41.8 | 75.7 | 37.0 | 12.7 VD-378 56.3 250 8.822 1.4310 1264.448 106.67 143.33 41.6 | 75.7 | 40.6 | 8.6 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring VD-289C-04 Country of origin: DE, German; Compression spring VD-289C-04 Product image - Compression springs VD-289C-04 QR-Code: Compression spring VD-289C-04
