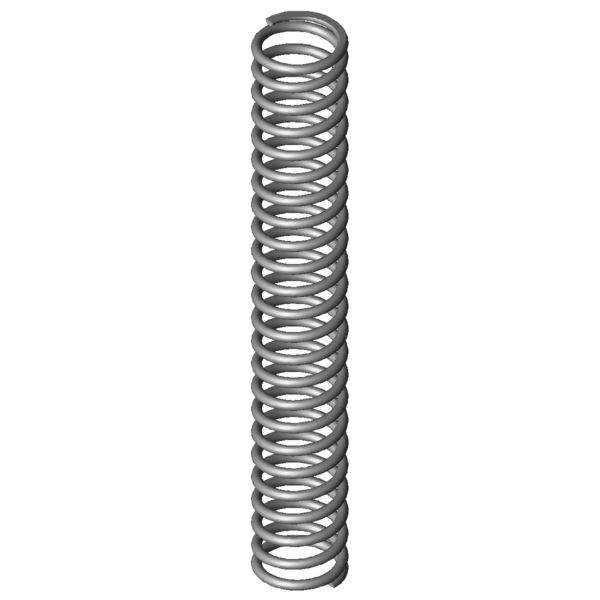

Home » Products » Compression springs » vd-354a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-354A Stainless steel Ø 5 x 40 x 300 mm Scaled prices - Compression spring VD-354A Quantity Single price [EUR] 1 14.9000 EUR 2 11.8700 EUR 3 7.7300 EUR 7 5.7700 EUR 17 4.1600 EUR 37 3.5700 EUR 75 3.5200 EUR 125 3.5200 EUR 175 3.5200 EUR 250 3.5200 EUR 350 3.5200 EUR Compression spring Buy Product image Compression spring VD-354A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-354A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 40 mm Mean coil diameter De 45 mm Outer coil diameter Dd 34 mm maximum diameter of mandrel Dh 46.5 mm minimum diameter of bush L0 300 mm unstressed spring length Lk 231.88 mm buckling length Fn 590.359 N maximum force in static use Ln 144.55 mm Minimum length in static use sn 155.45 mm Maximum spring deflection in static use Fndyn 548.47 N maximum force in dynamic use Lndyn 155.58 mm Minimum length in dynamic use shdyn 66.5 mm Maximum stroke in dynamic use S 13.111 mm pitch of spring n 22.5 pc. number of active coils nt pc. total number of coils R 3.798 N/mm Spring rate Weight 477.8442 g weight of one spring Fntol 38 N (+/-) tolerance of maximum force in static use Fndtol 37.27 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 6.26 mm (+/-) tolerance of unstressed spring length Price group #AM - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-354A Stainless steel Ø 5 x 40 x 300 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-354A Stainless steel Ø 5 x 40 x 300 mm Metal spring characteristic download pdf file CAD data Compression spring VD-354A Stainless steel Ø 5 x 40 x 300 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-354A Stainless steel Ø 5 x 40 x 300 mm force-path-calculation Compression spring VD-354A Inquiry formular Compression spring VD-354A Stainless steel Ø 5 x 40 x 300 mm Inquiry formular Compression spring VD-354A Similar compression springs to Compression spring VD-354A Stainless steel Ø 5 x 40 x 300 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-354A 1.4310 5 45 300 590.359 144.55 155.45 22.5 3.798 87.1 | 100.0 | 79.0 | 82.2 D-354A EN 10270-1 5 45 300 687.347 144.55 155.45 22.5 4.422 93.5 | 100.0 | 84.8 | 95.7 D-354 EN 10270-1 5 45 300 964.597 120.63 179.37 18.5 5.378 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-289C-04 48 275 0.756 1.4310 157.505 66.62 208.38 51.2 | 83.1 | 50.6 | 19.9 VD-292A 43.2 275 0.775 1.4310 146.929 85.4 189.61 52.3 | 83.9 | 56.2 | 16.8 VD-288Z-15 37 279 0.975 1.4310 196.171 77.74 201.26 52.0 | 78.4 | 56.4 | 21.1 VD-292 43.2 275 1.147 1.4310 246.837 59.78 215.23 55.1 | 83.9 | 56.6 | 24.8 VD-313E-14 48 280 1.199 1.4310 246.896 74.14 205.86 56.9 | 86.4 | 58.5 | 26.0 VD-298A 35.2 280 1.244 1.4310 228.48 96.4 183.6 56.0 | 78.5 | 62.6 | 26.9 VD-298 35.2 280 1.514 1.4310 302.097 80.4 199.6 58.2 | 78.5 | 63.2 | 32.8 VD-323A 44 340 1.556 1.4310 341.444 120.5 219.5 61.3 | 88.7 | 61.5 | 33.7 VD-318E 49 243 1.821 1.4310 301.076 77.65 165.35 62.7 | 84.3 | 64.3 | 39.4 VD-323 44 340 1.892 1.4310 453.108 100.5 239.5 64.8 | 88.7 | 64.8 | 41.0 VD-322A 44 235 1.892 1.4310 254.459 100.5 134.5 59.7 | 85.4 | 52.8 | 41.0 VD-313J 40 248 1.966 1.4310 335.916 77.14 170.86 63.9 | 81.2 | 67.9 | 42.6 VD-339N 50 299 2.457 1.4310 497.836 96.42 202.58 73.6 | 93.2 | 74.3 | 53.2 VD-322 44 235 2.8 1.4310 460.6 70.5 164.5 73.2 | 85.4 | 73.7 | 60.6 VD-354A 45 300 3.798 1.4310 590.359 144.55 155.45 87.1 | 100.0 | 79.0 | 82.2 VD-354 45 300 4.619 1.4310 828.488 120.63 179.37 100.0 | 100.0 | 100.0 | 100.0 VD-384A 46.3 280 9.572 1.4310 985.004 177.1 102.9 69.7 | 90.0 | 70.7 | 48.3 VD-364R-84 46 220 9.578 1.4310 751.85 141.5 78.5 66.8 | 84.8 | 67.3 | 48.2 VD-359A-20 32 300 11.577 1.4310 1322.64 185.75 114.25 64.5 | 90.4 | 63.2 | 39.9 VD-384 46.3 280 11.642 1.4310 1538.428 147.85 132.15 64.5 | 90.0 | 63.8 | 39.7 VD-389NA 50 265 15.099 1.4310 1650.599 155.68 109.32 56.5 | 83.3 | 55.6 | 30.6 VD-364R-12 39 254 15.462 1.4310 1617.333 149.4 104.6 56.8 | 85.8 | 54.8 | 29.9 VD-389N-05 46 236 22.135 1.4310 2071.54 142.41 93.59 49.9 | 82.6 | 46.1 | 20.9 VD-389A-12 39 254 24.057 1.4310 1809.619 178.78 75.22 48.3 | 82.0 | 43.9 | 19.2 VD-414 48 275 30.27 1.4310 2744 184.35 90.65 46.1 | 82.6 | 40.4 | 15.3 VD-413A 48 248 30.27 1.4310 1926.703 184.35 63.65 44.7 | 79.6 | 39.2 | 15.3 Number of similar metal springs: 25 Customs tariff number: 73202081; Compression spring VD-354A Country of origin: DE, German; Compression spring VD-354A Product image - Compression springs VD-354A QR-Code: Compression spring VD-354A
