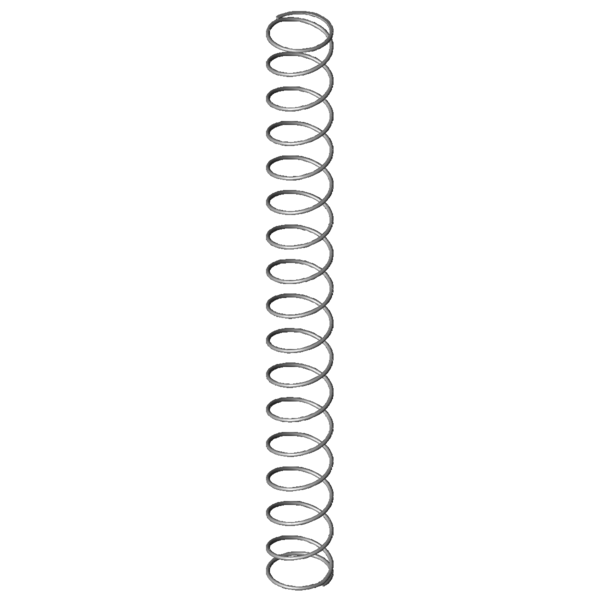

Home » Products » Compression springs » vd-232j Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-232J Stainless steel Ø 1.8 x 28.2 x 294 mm Scaled prices - Compression spring VD-232J Quantity Single price [EUR] 1 5.6700 EUR 2 4.0000 EUR 3 3.8100 EUR 7 2.9900 EUR 17 1.5200 EUR 37 1.2000 EUR 75 1.0100 EUR 125 0.7829 EUR 175 0.7387 EUR 250 0.6198 EUR 350 0.5936 EUR 450 0.5368 EUR Compression spring Buy Product image Compression spring VD-232J Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-232J Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.8 mm Wire diameter Di mm Inner coil diameter D 28.2 mm Mean coil diameter De 30 mm Outer coil diameter Dd 25.6 mm maximum diameter of mandrel Dh 32 mm minimum diameter of bush L0 294 mm unstressed spring length Lk 261.35 mm buckling length Fn 65.915 N maximum force in static use Ln 44.56 mm Minimum length in static use sn 249.44 mm Maximum spring deflection in static use Fndyn 63.751 N maximum force in dynamic use Lndyn 52.75 mm Minimum length in dynamic use shdyn 78.2 mm Maximum stroke in dynamic use S 18.852 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 0.264 N/mm Spring rate Weight 31.1855 g weight of one spring Fntol 4.31 N (+/-) tolerance of maximum force in static use Fndtol 4.29 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 12.58 mm (+/-) tolerance of unstressed spring length Price group N - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-232J Stainless steel Ø 1.8 x 28.2 x 294 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-232J Stainless steel Ø 1.8 x 28.2 x 294 mm Metal spring characteristic download pdf file CAD data Compression spring VD-232J Stainless steel Ø 1.8 x 28.2 x 294 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-232J Stainless steel Ø 1.8 x 28.2 x 294 mm force-path-calculation Compression spring VD-232J Inquiry formular Compression spring VD-232J Stainless steel Ø 1.8 x 28.2 x 294 mm Inquiry formular Compression spring VD-232J Similar compression springs to Compression spring VD-232J Stainless steel Ø 1.8 x 28.2 x 294 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-232J 1.4310 1.8 30 294 65.915 44.56 249.44 15.5 0.264 100.0 | 100.0 | 100.0 | 100.0 D-232J EN 10270-1 1.8 30 294 76.743 44.56 249.44 15.5 0.308 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207JK 34 352 0.07 1.4310 20.851 53.07 298.93 56.3 | 85.0 | 57.5 | 26.4 VD-207JD 35.5 260 0.09 1.4310 20.009 38.08 221.93 59.7 | 85.4 | 59.7 | 34.1 VD-207JJ 34 239 0.103 1.4310 20.871 36.83 202.17 59.9 | 84.3 | 56.4 | 39.1 VD-207JP 26.5 224 0.153 1.4310 27.417 45.09 178.91 65.8 | 82.6 | 56.7 | 58.0 VD-206D 24 253 0.188 1.4310 40.928 35.15 217.85 75.7 | 81.3 | 74.7 | 71.1 VD-207O 28 292 0.201 1.4310 50.547 40.61 251.39 86.0 | 93.8 | 88.0 | 76.1 VD-207N-01 28 206 0.231 1.4310 39.296 35.78 170.22 78.5 | 84.1 | 63.9 | 87.4 VD-232J 30 294 0.264 1.4310 65.915 44.56 249.44 100.0 | 100.0 | 100.0 | 100.0 VD-234K 34 332 0.276 1.4310 77.73 50 282 90.5 | 88.9 | 86.6 | 95.9 VD-239A 27 290 0.398 1.4310 89.98 64.05 225.95 80.4 | 92.9 | 81.9 | 66.4 VD-268A 34.5 360 0.464 1.4310 129.482 80.7 279.3 69.1 | 80.2 | 70.1 | 57.0 VD-234O 30 182 0.472 1.4310 66.309 41.64 140.36 72.6 | 84.0 | 77.8 | 55.9 VD-239 27 290 0.484 1.4310 107.762 67.5 222.5 74.2 | 92.9 | 75.2 | 54.6 VD-267A 34.5 245 0.564 1.4310 100.225 67.24 177.76 65.4 | 80.8 | 68.5 | 46.9 VD-268 34.5 360 0.564 1.4310 159.591 76.95 283.05 63.9 | 80.2 | 64.7 | 46.9 VD-267 34.5 245 0.834 1.4310 159.633 53.7 191.3 57.1 | 80.8 | 59.0 | 31.7 VD-273A 27.5 240 0.972 1.4310 160.113 75.31 164.69 54.2 | 81.8 | 53.6 | 27.2 VD-288Z-15 37 279 0.975 1.4310 196.171 77.74 201.26 54.3 | 78.7 | 57.1 | 27.1 VD-273 27.5 240 1.182 1.4310 204.561 67 173 51.6 | 81.8 | 50.8 | 22.3 VD-298A 35.2 280 1.244 1.4310 228.48 96.4 183.6 50.5 | 78.9 | 51.2 | 21.2 VD-288Z-24 33 229 1.419 1.4310 217.981 75.38 153.63 46.9 | 76.3 | 45.9 | 18.6 VD-298 35.2 280 1.514 1.4310 302.097 80.4 199.6 49.1 | 78.9 | 50.9 | 17.5 VD-288O 30 189 1.724 1.4310 223.32 59.48 129.52 44.1 | 76.2 | 40.7 | 15.3 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring VD-232J Country of origin: DE, German; Compression spring VD-232J Product image - Compression springs VD-232J QR-Code: Compression spring VD-232J
