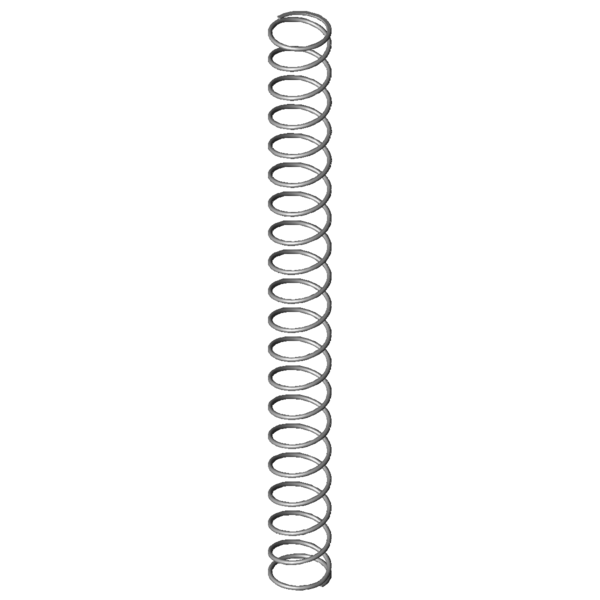

Home » Products » Compression springs » vd-268 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-268 Stainless steel Ø 2.5 x 32 x 360 mm Scaled prices - Compression spring VD-268 Quantity Single price [EUR] 1 5.7800 EUR 2 4.0800 EUR 3 3.8900 EUR 7 3.0700 EUR 17 1.5900 EUR 37 1.2800 EUR 75 1.1200 EUR 125 0.8513 EUR 175 0.7951 EUR 250 0.7263 EUR 350 0.6128 EUR 450 0.5811 EUR Compression spring Buy Product image Compression spring VD-268 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-268 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.5 mm Wire diameter Di mm Inner coil diameter D 32 mm Mean coil diameter De 34.5 mm Outer coil diameter Dd 28.7 mm maximum diameter of mandrel Dh 35.3 mm minimum diameter of bush L0 360 mm unstressed spring length Lk 326.8 mm buckling length Fn 159.591 N maximum force in static use Ln 76.95 mm Minimum length in static use sn 283.05 mm Maximum spring deflection in static use Fndyn 143.438 N maximum force in dynamic use Lndyn 105.6 mm Minimum length in dynamic use shdyn 65.45 mm Maximum stroke in dynamic use S 19.324 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 0.564 N/mm Spring rate Weight 79.9658 g weight of one spring Fntol 8.88 N (+/-) tolerance of maximum force in static use Fndtol 8.8 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 9.14 mm (+/-) tolerance of unstressed spring length Price group O - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-268 Stainless steel Ø 2.5 x 32 x 360 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-268 Stainless steel Ø 2.5 x 32 x 360 mm Metal spring characteristic download pdf file CAD data Compression spring VD-268 Stainless steel Ø 2.5 x 32 x 360 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-268 Stainless steel Ø 2.5 x 32 x 360 mm force-path-calculation Compression spring VD-268 Inquiry formular Compression spring VD-268 Stainless steel Ø 2.5 x 32 x 360 mm Inquiry formular Compression spring VD-268 Similar compression springs to Compression spring VD-268 Stainless steel Ø 2.5 x 32 x 360 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-268 1.4310 2.5 34.5 360 159.591 76.95 283.05 18.5 0.564 100.0 | 100.0 | 100.0 | 100.0 D-268A EN 10270-1 2.5 34.5 360 150.754 80.7 279.3 22.5 0.54 97.4 | 100.0 | 96.6 | 95.7 D-268 EN 10270-1 2.5 34.5 360 183.283 80.8 279.2 18.5 0.656 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207JE 35.5 384 0.061 1.4310 20.048 54.91 329.09 47.9 | 83.6 | 49.3 | 10.8 VD-207JK 34 352 0.07 1.4310 20.851 53.07 298.93 50.6 | 85.4 | 53.9 | 12.4 VD-207JD 35.5 260 0.09 1.4310 20.009 38.08 221.93 46.0 | 76.5 | 45.5 | 16.0 VD-207JJ 34 239 0.103 1.4310 20.871 36.83 202.17 45.2 | 75.0 | 42.3 | 18.3 VD-207O 28 292 0.201 1.4310 50.547 40.61 251.39 57.1 | 75.4 | 60.2 | 35.7 VD-232J 30 294 0.264 1.4310 65.915 44.56 249.44 63.9 | 80.2 | 64.7 | 46.9 VD-234K 34 332 0.276 1.4310 77.73 50 282 71.1 | 90.3 | 74.2 | 48.9 VD-263H 38 368 0.288 1.4310 90.081 55.45 312.55 72.3 | 92.2 | 73.5 | 51.1 VD-263Z 42 389 0.358 1.4310 116.953 62.14 326.86 78.3 | 91.6 | 79.9 | 63.5 VD-239A 27 290 0.398 1.4310 89.98 64.05 225.95 72.8 | 79.6 | 68.1 | 70.6 VD-268A 34.5 360 0.464 1.4310 129.482 80.7 279.3 90.7 | 100.0 | 89.9 | 82.2 VD-239 27 290 0.484 1.4310 107.762 67.5 222.5 79.5 | 79.6 | 73.1 | 85.9 VD-268 34.5 360 0.564 1.4310 159.591 76.95 283.05 100.0 | 100.0 | 100.0 | 100.0 VD-293A 43.2 405 0.637 1.4310 192.755 102.48 302.53 86.3 | 82.3 | 88.2 | 88.5 VD-293 43.2 405 0.775 1.4310 247.668 85.4 319.61 77.2 | 82.3 | 76.5 | 72.8 VD-267 34.5 245 0.834 1.4310 159.633 53.7 191.3 80.2 | 89.4 | 83.8 | 67.6 VD-288Z-15 37 279 0.975 1.4310 196.171 77.74 201.26 72.9 | 84.7 | 76.2 | 57.8 VD-298A 35.2 280 1.244 1.4310 228.48 96.4 183.6 65.8 | 84.6 | 67.4 | 45.3 VD-329BE 35 450 1.355 1.4310 240.879 272.2 177.8 62.2 | 80.4 | 64.5 | 41.6 VD-288Z-24 33 229 1.419 1.4310 217.981 75.38 153.63 61.4 | 80.9 | 63.7 | 39.7 VD-298 35.2 280 1.514 1.4310 302.097 80.4 199.6 61.2 | 84.6 | 61.7 | 37.3 VD-323A 44 340 1.556 1.4310 341.444 120.5 219.5 58.9 | 78.5 | 62.1 | 36.2 VD-297B 35.2 230 1.6 1.4310 245.76 76.4 153.6 58.3 | 80.0 | 59.6 | 35.2 VD-323 44 340 1.892 1.4310 453.108 100.5 239.5 56.1 | 78.5 | 59.9 | 29.8 VD-329BH 34 330 2.273 1.4310 338.855 180.92 149.08 53.0 | 84.2 | 49.9 | 24.8 VD-329A 36 250 3.038 1.4310 408.212 115.64 134.36 45.9 | 75.9 | 43.3 | 18.6 VD-329 36 250 3.695 1.4310 567.183 96.5 153.5 44.1 | 75.9 | 41.2 | 15.3 VD-359A-20 32 300 11.577 1.4310 1322.64 185.75 114.25 35.5 | 75.4 | 26.2 | 4.9 Number of similar metal springs: 27 Customs tariff number: 73202081; Compression spring VD-268 Country of origin: DE, German; Compression spring VD-268 Product image - Compression springs VD-268 QR-Code: Compression spring VD-268
