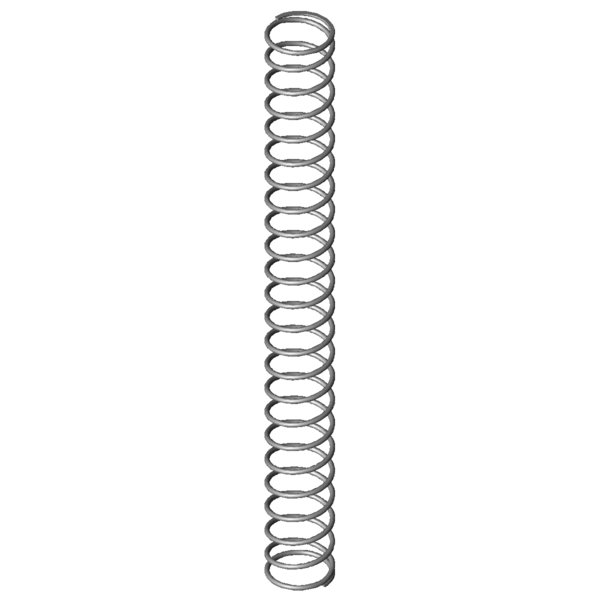

Home » Products » Compression springs » vd-293a Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-293A Stainless steel Ø 3.2 x 40 x 405 mm Scaled prices - Compression spring VD-293A Quantity Single price [EUR] 1 6.6400 EUR 2 4.6800 EUR 3 4.4600 EUR 7 3.6300 EUR 17 2.4900 EUR 37 1.9700 EUR 75 1.8900 EUR Compression spring Buy Product image Compression spring VD-293A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-293A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 3.2 mm Wire diameter Di - mm Inner coil diameter D 40 mm Mean coil diameter De 43.2 mm Outer coil diameter Dd 35.8 mm maximum diameter of mandrel Dh 45.3 mm minimum diameter of bush L0 405 mm unstressed spring length Lk 358.2 mm buckling length Fn 192.755 N maximum force in static use Ln 102.48 mm Minimum length in static use sn 302.53 mm Maximum spring deflection in static use Fndyn 185.087 N maximum force in dynamic use Lndyn 114.51 mm Minimum length in dynamic use shdyn 117.93 mm Maximum stroke in dynamic use S 17.858 mm pitch of spring n 22.5 pc. number of active coils nt - pc. total number of coils R 0.637 N/mm Spring rate Weight 195.725 g weight of one spring Fntol 12.4 N (+/-) tolerance of maximum force in static use Fndtol 12.27 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 12.18 mm (+/-) tolerance of unstressed spring length Price group U - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-293A Stainless steel Ø 3.2 x 40 x 405 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-293A Stainless steel Ø 3.2 x 40 x 405 mm Metal spring characteristic download pdf file CAD data Compression spring VD-293A Stainless steel Ø 3.2 x 40 x 405 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-293A Stainless steel Ø 3.2 x 40 x 405 mm force-path-calculation Compression spring VD-293A Inquiry formular Compression spring VD-293A Stainless steel Ø 3.2 x 40 x 405 mm Inquiry formular Compression spring VD-293A Similar compression springs to Compression spring VD-293A Stainless steel Ø 3.2 x 40 x 405 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-293A 1.4310 3.2 43.2 405 192.755 102.48 302.53 22.5 0.637 100.0 | 100.0 | 100.0 | 100.0 D-293A EN 10270-1 3.2 43.2 405 224.422 102.48 302.53 22.5 0.742 92.9 | 100.0 | 92.9 | 85.9 D-293 EN 10270-1 3.2 43.2 405 288.356 85.4 319.61 18.5 0.902 83.8 | 100.0 | 80.8 | 70.6 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207JE 35.5 384 0.061 1.4310 20.048 54.91 329.09 45.1 | 74.6 | 51.2 | 9.6 VD-207JK 34 352 0.07 1.4310 20.851 53.07 298.93 45.5 | 70.8 | 54.8 | 10.9 VD-234K 34 332 0.276 1.4310 77.73 50 282 61.5 | 74.4 | 66.8 | 43.3 VD-263H 38 368 0.288 1.4310 90.081 55.45 312.55 66.5 | 82.5 | 71.8 | 45.2 VD-263V-22 46 330 0.308 1.4310 83.832 57.45 272.55 66.5 | 84.5 | 66.8 | 48.3 VD-263Z 42 389 0.358 1.4310 116.953 62.14 326.86 74.4 | 90.5 | 76.6 | 56.2 VD-288K 48 443 0.376 1.4310 140.038 70.3 372.7 75.2 | 89.6 | 76.9 | 59.0 VD-289X-24 48 434 0.42 1.4310 146.398 85.78 348.22 79.9 | 92.4 | 81.4 | 66.0 VD-268A 34.5 360 0.464 1.4310 129.482 80.7 279.3 78.3 | 82.3 | 79.7 | 72.8 VD-268 34.5 360 0.564 1.4310 159.591 76.95 283.05 86.3 | 82.3 | 88.2 | 88.5 VD-288X-23 48 295 0.622 1.4310 146.281 59.91 235.09 86.7 | 85.5 | 76.8 | 97.7 VD-293A 43.2 405 0.637 1.4310 192.755 102.48 302.53 100.0 | 100.0 | 100.0 | 100.0 VD-293 43.2 405 0.775 1.4310 247.668 85.4 319.61 89.5 | 100.0 | 86.2 | 82.2 VD-292A 43.2 275 0.775 1.4310 146.929 85.4 189.61 80.3 | 89.3 | 69.5 | 82.2 VD-317A 54 335 0.969 1.4310 221.1 106.74 228.26 76.0 | 80.9 | 81.3 | 65.8 VD-292 43.2 275 1.147 1.4310 246.837 59.78 215.23 73.2 | 89.3 | 74.6 | 55.6 VD-313E-14 48 280 1.199 1.4310 246.896 74.14 205.86 69.6 | 82.7 | 73.1 | 53.1 VD-329BE 35 450 1.355 1.4310 240.879 272.2 177.8 66.7 | 83.7 | 69.4 | 47.0 VD-317 54 335 1.434 1.4310 373.139 74.72 260.28 64.7 | 80.9 | 68.8 | 44.4 VD-323A 44 340 1.556 1.4310 341.444 120.5 219.5 64.3 | 87.4 | 64.5 | 41.0 VD-323 44 340 1.892 1.4310 453.108 100.5 239.5 60.6 | 87.4 | 60.9 | 33.7 VD-349A 55 410 1.944 1.4310 504.34 150.63 259.38 58.4 | 80.4 | 62.0 | 32.8 VD-329BH 34 330 2.273 1.4310 338.855 180.92 149.08 53.7 | 80.1 | 53.1 | 28.0 VD-349 55 410 2.365 1.4310 672.508 125.63 284.38 56.2 | 80.4 | 61.3 | 26.9 VD-339N 50 299 2.457 1.4310 497.836 96.42 202.58 52.0 | 77.1 | 52.8 | 25.9 VD-354A 45 300 3.798 1.4310 590.359 144.55 155.45 45.6 | 78.0 | 42.0 | 16.8 VD-354 45 300 4.619 1.4310 828.488 120.63 179.37 44.4 | 78.0 | 41.3 | 13.8 Number of similar metal springs: 26 Customs tariff number: 73202081; Compression spring VD-293A Country of origin: DE, German; Compression spring VD-293A Product image - Compression springs VD-293A QR-Code: Compression spring VD-293A
