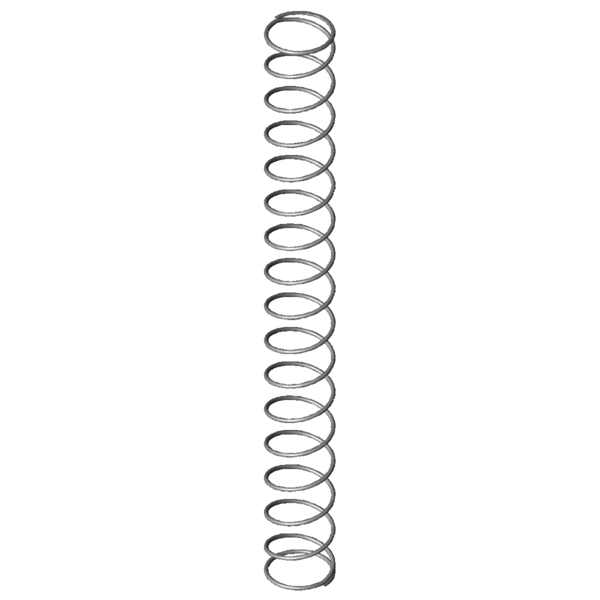

Home » Products » Compression springs » vd-263z Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-263Z Stainless steel Ø 2.5 x 39.5 x 389 mm Scaled prices - Compression spring VD-263Z Quantity Single price [EUR] 1 5.9700 EUR 2 4.2100 EUR 3 4.0100 EUR 7 3.2100 EUR 17 1.7700 EUR 37 1.3500 EUR 75 1.1900 EUR 125 0.9703 EUR 175 0.8890 EUR 250 0.8202 EUR 350 0.7705 EUR 450 0.7136 EUR Compression spring Buy Product image Compression spring VD-263Z Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-263Z Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.5 mm Wire diameter Di mm Inner coil diameter D 39.5 mm Mean coil diameter De 42 mm Outer coil diameter Dd 36.1 mm maximum diameter of mandrel Dh 44.4 mm minimum diameter of bush L0 389 mm unstressed spring length Lk 136.1 mm buckling length Fn 116.953 N maximum force in static use Ln 62.14 mm Minimum length in static use sn 326.86 mm Maximum spring deflection in static use Fndyn 113.66 N maximum force in dynamic use Lndyn 71.34 mm Minimum length in dynamic use shdyn 97.45 mm Maximum stroke in dynamic use S 24.935 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 0.358 N/mm Spring rate Weight 84.2627 g weight of one spring Fntol 7.84 N (+/-) tolerance of maximum force in static use Fndtol 7.78 N (+/-) tolerance of maximum dynamic force Detol 0.7 mm (+/-) tolerances of outer coil diameter L0tol 13.91 mm (+/-) tolerance of unstressed spring length Price group P - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-263Z Stainless steel Ø 2.5 x 39.5 x 389 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-263Z Stainless steel Ø 2.5 x 39.5 x 389 mm Metal spring characteristic download pdf file CAD data Compression spring VD-263Z Stainless steel Ø 2.5 x 39.5 x 389 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-263Z Stainless steel Ø 2.5 x 39.5 x 389 mm force-path-calculation Compression spring VD-263Z Inquiry formular Compression spring VD-263Z Stainless steel Ø 2.5 x 39.5 x 389 mm Inquiry formular Compression spring VD-263Z Similar compression springs to Compression spring VD-263Z Stainless steel Ø 2.5 x 39.5 x 389 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-263Z 1.4310 2.5 42 389 116.953 62.14 326.86 15.5 0.358 100.0 | 100.0 | 100.0 | 100.0 D-263Z EN 10270-1 2.5 42 389 136.167 62.14 326.86 15.5 0.417 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207JE 35.5 384 0.061 1.4310 20.048 54.91 329.09 52.1 | 81.1 | 58.2 | 17.0 VD-207JK 34 352 0.07 1.4310 20.851 53.07 298.93 50.4 | 77.1 | 54.6 | 19.5 VD-234K 34 332 0.276 1.4310 77.73 50 282 78.5 | 82.1 | 76.4 | 77.0 VD-263H 38 368 0.288 1.4310 90.081 55.45 312.55 86.0 | 91.0 | 86.3 | 80.5 VD-263V-22 46 330 0.308 1.4310 83.832 57.45 272.55 85.2 | 92.0 | 77.5 | 86.0 VD-263Z 42 389 0.358 1.4310 116.953 62.14 326.86 100.0 | 100.0 | 100.0 | 100.0 VD-288K 48 443 0.376 1.4310 140.038 70.3 372.7 89.7 | 88.2 | 85.6 | 95.2 VD-289X-24 48 434 0.42 1.4310 146.398 85.78 348.22 86.3 | 86.8 | 86.9 | 85.1 VD-268A 34.5 360 0.464 1.4310 129.482 80.7 279.3 85.5 | 91.6 | 87.9 | 77.2 VD-268 34.5 360 0.564 1.4310 159.591 76.95 283.05 78.3 | 91.6 | 79.9 | 63.5 VD-263Y 42 240 0.584 1.4310 116.746 40.02 199.98 76.3 | 87.2 | 80.5 | 61.3 VD-288X-23 48 295 0.622 1.4310 146.281 59.91 235.09 71.9 | 82.2 | 75.9 | 57.5 VD-293A 43.2 405 0.637 1.4310 192.755 102.48 302.53 74.4 | 90.5 | 76.6 | 56.2 VD-293 43.2 405 0.775 1.4310 247.668 85.4 319.61 69.7 | 90.5 | 72.5 | 46.2 VD-292A 43.2 275 0.775 1.4310 146.929 85.4 189.61 65.7 | 82.0 | 68.8 | 46.2 VD-288Z-15 37 279 0.975 1.4310 196.171 77.74 201.26 59.5 | 81.1 | 60.6 | 36.7 VD-292 43.2 275 1.147 1.4310 246.837 59.78 215.23 56.6 | 82.0 | 56.6 | 31.2 VD-329BE 35 450 1.355 1.4310 240.879 272.2 177.8 51.8 | 77.4 | 51.5 | 26.4 VD-323A 44 340 1.556 1.4310 341.444 120.5 219.5 51.8 | 81.8 | 50.7 | 23.0 VD-323 44 340 1.892 1.4310 453.108 100.5 239.5 50.1 | 81.8 | 49.5 | 18.9 VD-349A 55 410 1.944 1.4310 504.34 150.63 259.38 47.8 | 73.7 | 51.3 | 18.4 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring VD-263Z Country of origin: DE, German; Compression spring VD-263Z Product image - Compression springs VD-263Z QR-Code: Compression spring VD-263Z
