Compression spring VD-329BE Stainless steel Ø 4 x 31 x 450 mm

Scaled prices - Compression spring VD-329BE

Quantity	Single price [EUR]
1	14.5700 EUR
2	11.6100 EUR
3	7.2800 EUR
7	5.4200 EUR
17	3.8200 EUR
37	3.3100 EUR
75	3.2400 EUR
125	3.2400 EUR
175	3.2400 EUR
250	3.2400 EUR
350	3.2400 EUR

Compression spring Buy

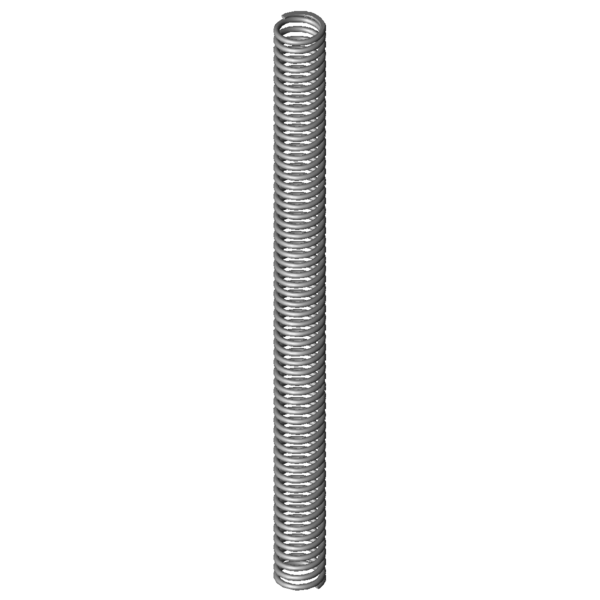

Product image Compression spring VD-329BE

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring VD-329BE

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	4	mm	Wire diameter
Di		mm	Inner coil diameter
D	31	mm	Mean coil diameter
De	35	mm	Outer coil diameter
Dd	26.3	mm	maximum diameter of mandrel
Dh	36	mm	minimum diameter of bush
L0	450	mm	unstressed spring length
Lk	425.67	mm	buckling length
Fn	240.879	N	maximum force in static use
Ln	272.2	mm	Minimum length in static use
sn	177.8	mm	Maximum spring deflection in static use
Fndyn	212.295	N	maximum force in dynamic use
Lndyn	293.3	mm	Minimum length in dynamic use
shdyn	156.7	mm	Maximum stroke in dynamic use
S	8.036	mm	pitch of spring
n	55.5	pc.	number of active coils
nt		pc.	total number of coils
R	1.355	N/mm	Spring rate
Weight	556.2496	g	weight of one spring
Fntol	23.11	N	(+/-) tolerance of maximum force in static use
Fndtol	22.61	N	(+/-) tolerance of maximum dynamic force
Detol	0.4	mm	(+/-) tolerances of outer coil diameter
L0tol	11.98	mm	(+/-) tolerance of unstressed spring length
Price group	#AL	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring VD-329BE Stainless steel Ø 4 x 31 x 450 mm

Datasheet download pdf file

Metal spring characteristic Compression spring VD-329BE Stainless steel Ø 4 x 31 x 450 mm

Metal spring characteristic download pdf file

CAD data Compression spring VD-329BE Stainless steel Ø 4 x 31 x 450 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring VD-329BE Stainless steel Ø 4 x 31 x 450 mm

force-path-calculation Compression spring VD-329BE

Inquiry formular Compression spring VD-329BE Stainless steel Ø 4 x 31 x 450 mm

Inquiry formular Compression spring VD-329BE

Similar compression springs to Compression spring VD-329BE Stainless steel Ø 4 x 31 x 450 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
VD-329BE	1.4310	4	35	450	240.879	272.2	177.8	55.5	1.355	100.0 \| 100.0 \| 100.0 \| 100.0
D-329BE	EN 10270-1	4	35	450	280.452	272.2	177.8	55.5	1.577	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
VD-232J	30	294	0.264	1.4310	65.915	44.56	249.44	44.7 \| 65.3 \| 49.3 \| 19.5
VD-234K	34	332	0.276	1.4310	77.73	50	282	47.2 \| 73.6 \| 47.7 \| 20.3
VD-263H	38	368	0.288	1.4310	90.081	55.45	312.55	48.2 \| 76.3 \| 47.1 \| 21.3
VD-263Z	42	389	0.358	1.4310	116.953	62.14	326.86	51.8 \| 77.4 \| 51.5 \| 26.4
VD-288K	48	443	0.376	1.4310	140.038	70.3	372.7	53.7 \| 80.5 \| 52.9 \| 27.7
VD-289X-24	48	434	0.42	1.4310	146.398	85.78	348.22	56.1 \| 81.5 \| 55.9 \| 31.0
VD-268A	34.5	360	0.464	1.4310	129.482	80.7	279.3	57.8 \| 80.4 \| 58.7 \| 34.2
VD-268	34.5	360	0.564	1.4310	159.591	76.95	283.05	62.2 \| 80.4 \| 64.5 \| 41.6
VD-267A	34.5	245	0.564	1.4310	100.225	67.24	177.76	61.4 \| 71.8 \| 70.8 \| 41.6
VD-293A	43.2	405	0.637	1.4310	192.755	102.48	302.53	66.7 \| 83.7 \| 69.4 \| 47.0
VD-293	43.2	405	0.775	1.4310	247.668	85.4	319.61	72.4 \| 83.7 \| 76.4 \| 57.2
VD-267	34.5	245	0.834	1.4310	159.633	53.7	191.3	55.9 \| 85.4 \| 54.7 \| 27.5
VD-288Z-15	37	279	0.975	1.4310	196.171	77.74	201.26	58.9 \| 87.3 \| 57.4 \| 32.1
VD-298A	35.2	280	1.244	1.4310	228.48	96.4	183.6	64.9 \| 89.0 \| 64.6 \| 41.0
VD-329BE	35	450	1.355	1.4310	240.879	272.2	177.8	100.0 \| 100.0 \| 100.0 \| 100.0
VD-298	35.2	280	1.514	1.4310	302.097	80.4	199.6	69.8 \| 89.0 \| 70.7 \| 49.8
VD-323A	44	340	1.556	1.4310	341.444	120.5	219.5	82.6 \| 85.0 \| 75.8 \| 87.1
VD-297B	35.2	230	1.6	1.4310	245.76	76.4	153.6	72.1 \| 89.9 \| 73.8 \| 52.7
VD-323	44	340	1.892	1.4310	453.108	100.5	239.5	73.4 \| 85.0 \| 63.7 \| 71.6
VD-329BH	34	330	2.273	1.4310	338.855	180.92	149.08	75.7 \| 90.2 \| 77.5 \| 59.6
VD-329A	36	250	3.038	1.4310	408.212	115.64	134.36	100.0 \| 100.0 \| 100.0 \| 100.0
VD-329	36	250	3.695	1.4310	567.183	96.5	153.5	87.3 \| 100.0 \| 79.8 \| 82.2
VD-334A-10	27	505	3.796	1.4310	810.44	291.5	213.5	60.3 \| 88.8 \| 56.5 \| 35.7
VD-359A-20	32	300	11.577	1.4310	1322.64	185.75	114.25	44.1 \| 79.4 \| 41.2 \| 11.7
VD-364R-21	28	375	17.356	1.4310	1967.909	261.62	113.38	41.5 \| 78.7 \| 38.0 \| 7.8
VD-364R-20	28	345	17.796	1.4310	1593.981	255.43	89.57	38.9 \| 76.5 \| 32.7 \| 7.6
VD-389RG	28	510	43.21	1.4310	3750.131	423.21	86.79	35.3 \| 75.1 \| 27.6 \| 3.1

Number of similar metal springs: 26

Customs tariff number: 73202081; Compression spring VD-329BE

Country of origin: DE, German; Compression spring VD-329BE
