Compression spring D-383A Spring steel Ø 6.3 x 40 x 195 mm

Scaled prices - Compression spring D-383A

Quantity	Single price [EUR]
1	14.4000 EUR
2	11.4700 EUR
3	7.0900 EUR
7	5.2300 EUR
17	3.6600 EUR
37	3.0100 EUR
75	2.9700 EUR
125	2.9376 EUR
175	2.9180 EUR
250	2.8813 EUR
350	2.8095 EUR

Compression spring Buy

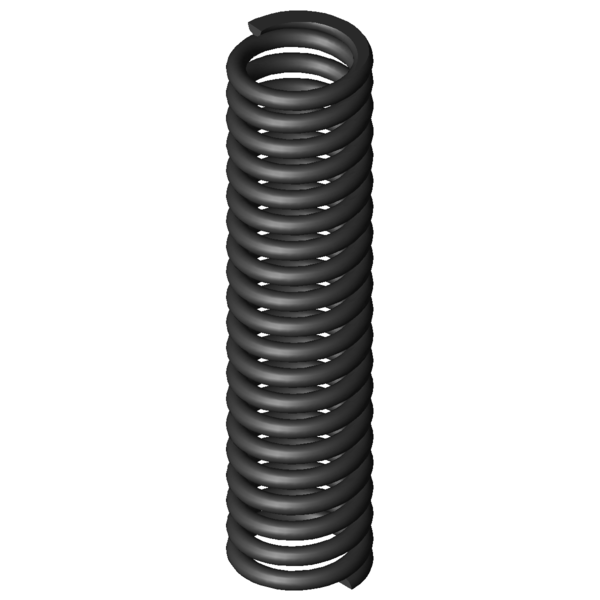

Product image Compression spring D-383A

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-383A

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	6.3	mm	Wire diameter
Di		mm	Inner coil diameter
D	40	mm	Mean coil diameter
De	46.3	mm	Outer coil diameter
Dd	32.7	mm	maximum diameter of mandrel
Dh	47.5	mm	minimum diameter of bush
L0	195	mm	unstressed spring length
Lk		mm	buckling length
Fn	639.051	N	maximum force in static use
Ln	147.85	mm	Minimum length in static use
sn	47.15	mm	Maximum spring deflection in static use
Fndyn	512.354	N	maximum force in dynamic use
Lndyn	157.2	mm	Minimum length in dynamic use
shdyn	37.8	mm	Maximum stroke in dynamic use
S	10.2	mm	pitch of spring
n	18.5	pc.	number of active coils
nt		pc.	total number of coils
R	13.554	N/mm	Spring rate
Weight	634.7682	g	weight of one spring
Fntol	71.38	N	(+/-) tolerance of maximum force in static use
Fndtol	69.4	N	(+/-) tolerance of maximum dynamic force
Detol	0.5	mm	(+/-) tolerances of outer coil diameter
L0tol	4.56	mm	(+/-) tolerance of unstressed spring length
Price group	AK	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-383A Spring steel Ø 6.3 x 40 x 195 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-383A Spring steel Ø 6.3 x 40 x 195 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-383A Spring steel Ø 6.3 x 40 x 195 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-383A Spring steel Ø 6.3 x 40 x 195 mm

force-path-calculation Compression spring D-383A

Inquiry formular Compression spring D-383A Spring steel Ø 6.3 x 40 x 195 mm

Inquiry formular Compression spring D-383A

Similar compression springs to Compression spring D-383A Spring steel Ø 6.3 x 40 x 195 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-383A	EN 10270-1	6.3	46.3	195	639.051	147.85	47.15	18.5	13.554	100.0 \| 100.0 \| 100.0 \| 100.0
VD-383A	1.4310	6.3	46.3	195	548.878	147.85	47.15	18.5	11.642	92.9 \| 100.0 \| 92.9 \| 85.9
VD-383	1.4310	6.3	46.3	195	1568.138	103.99	91.01	12.5	17.23	75.0 \| 100.0 \| 46.3 \| 78.7

Number of similar metal springs: 3

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-288H	48	161	1.233	EN 10270-1	163.283	28.56	132.44	38.1 \| 74.5 \| 30.6 \| 9.1
D-289C-03	48	176	1.398	EN 10270-1	184.054	44.32	131.68	40.6 \| 79.2 \| 32.3 \| 10.3
D-288Z-14	37	190	1.68	EN 10270-1	227.628	54.48	135.53	40.9 \| 75.0 \| 35.2 \| 12.4
D-313E-13	48	200	1.955	EN 10270-1	283.436	55.01	144.99	45.5 \| 83.7 \| 38.4 \| 14.4
D-291	43.2	190	1.964	EN 10270-1	289.258	42.7	147.31	44.5 \| 80.5 \| 38.6 \| 14.5
D-313E-12	48	160	2.444	EN 10270-1	279.917	45.45	114.55	46.4 \| 78.6 \| 42.5 \| 18.0
D-339M	50	187	4.668	EN 10270-1	580.828	62.58	124.42	61.8 \| 86.6 \| 64.4 \| 34.4
D-364R-44	54	200	4.777	EN 10270-1	302.028	136.77	63.23	62.3 \| 90.7 \| 60.9 \| 35.2
D-321	44	160	4.794	EN 10270-1	524.956	50.5	109.5	59.4 \| 80.2 \| 62.6 \| 35.4
D-353A	45	205	5.378	EN 10270-1	453.716	120.63	84.37	64.6 \| 90.6 \| 63.4 \| 39.7
D-347	55	195	5.993	EN 10270-1	790.28	63.13	131.88	63.5 \| 87.8 \| 58.3 \| 44.2
D-353	45	205	7.959	EN 10270-1	957.068	84.75	120.25	67.4 \| 90.6 \| 53.0 \| 58.7
D-364J-24	48	185	9.715	EN 10270-1	895.915	92.78	92.22	75.3 \| 92.9 \| 61.2 \| 71.7
D-364R-84	46	220	11.151	EN 10270-1	875.368	141.5	78.5	81.1 \| 94.4 \| 66.5 \| 82.3
D-383A	46.3	195	13.554	EN 10270-1	639.051	147.85	47.15	100.0 \| 100.0 \| 100.0 \| 100.0
D-364R-83	46	150	16.504	EN 10270-1	833.439	99.5	50.5	85.9 \| 90.5 \| 85.0 \| 82.1
D-382A	46.3	152	18.574	EN 10270-1	756.02	111.3	40.7	83.7 \| 92.6 \| 85.4 \| 73.0
D-389N	50	228	19.848	EN 10270-1	1756.744	139.49	88.51	67.5 \| 89.4 \| 44.8 \| 68.3
D-383	46.3	195	20.06	EN 10270-1	1825.76	103.99	91.01	70.3 \| 100.0 \| 43.4 \| 67.6
D-364R-11	39	203	21.727	EN 10270-1	1835.921	118.5	84.5	66.2 \| 90.8 \| 45.3 \| 62.4
D-364R-10	39	178	25.203	EN 10270-1	1839.832	105	73	64.2 \| 89.2 \| 49.7 \| 53.8
D-389N-05	46	236	25.772	EN 10270-1	2411.864	142.41	93.59	60.6 \| 90.7 \| 38.4 \| 52.6
D-389N-04	46	194	31.719	EN 10270-1	2399.97	118.34	75.66	61.2 \| 96.3 \| 44.5 \| 42.7
D-389A-11	39	203	34.811	EN 10270-1	1968.148	146.46	56.54	62.8 \| 91.4 \| 57.9 \| 38.9
D-389A-10	39	178	40.613	EN 10270-1	2052.855	127.45	50.55	61.8 \| 89.8 \| 62.2 \| 33.4
D-389N-03	46	152	41.235	EN 10270-1	2380.938	94.26	57.74	58.7 \| 89.1 \| 54.2 \| 32.9
D-413	48	190	52.16	EN 10270-1	3142.64	129.75	60.25	55.4 \| 90.9 \| 49.3 \| 26.0
D-414AE	42	200	75.834	EN 10270-1	4380.577	142.23	57.77	51.7 \| 89.0 \| 48.1 \| 17.9
D-414AD	42	168	78.642	EN 10270-1	2380.812	137.73	30.27	49.3 \| 85.2 \| 45.5 \| 17.2

Number of similar metal springs: 28

Customs tariff number: 73202081; Compression spring D-383A

Country of origin: DE, German; Compression spring D-383A
