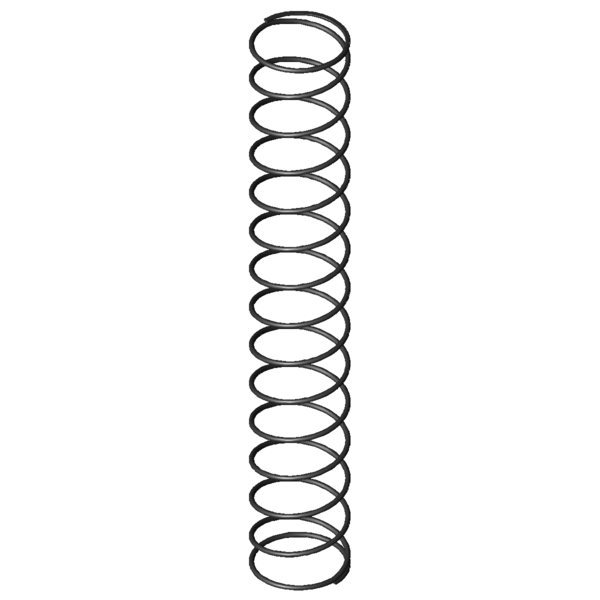

Home » Products » Compression springs » d-364r-53 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-364R-53 Spring steel Ø 6 x 109 x 725 mm Scaled prices - Compression spring D-364R-53 Quantity Single price [EUR] 1 28.6200 EUR 2 22.8000 EUR 3 21.1300 EUR 7 19.5000 EUR 17 18.2300 EUR 37 16.3700 EUR 75 16.0500 EUR 125 16.1241 EUR 175 15.9734 EUR 250 15.7036 EUR 350 14.8357 EUR Compression spring Buy Product image Compression spring D-364R-53 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-364R-53 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 6 mm Wire diameter Di mm Inner coil diameter D 109 mm Mean coil diameter De 115 mm Outer coil diameter Dd 100 mm maximum diameter of mandrel Dh 121 mm minimum diameter of bush L0 725 mm unstressed spring length Lk 503.52 mm buckling length Fn 440.884 N maximum force in static use Ln 141.2 mm Minimum length in static use sn 583.8 mm Maximum spring deflection in static use Fndyn 422.683 N maximum force in dynamic use Lndyn 165.3 mm Minimum length in dynamic use shdyn 315.87 mm Maximum stroke in dynamic use S 53.259 mm pitch of spring n 13.5 pc. number of active coils nt pc. total number of coils R 0.755 N/mm Spring rate Weight 1186.2628 g weight of one spring Fntol 32.65 N (+/-) tolerance of maximum force in static use Fndtol 31.06 N (+/-) tolerance of maximum dynamic force Detol 2.2 mm (+/-) tolerances of outer coil diameter L0tol 32.73 mm (+/-) tolerance of unstressed spring length Price group BB - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-364R-53 Spring steel Ø 6 x 109 x 725 mm Datasheet download pdf file Metal spring characteristic Compression spring D-364R-53 Spring steel Ø 6 x 109 x 725 mm Metal spring characteristic download pdf file CAD data Compression spring D-364R-53 Spring steel Ø 6 x 109 x 725 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-364R-53 Spring steel Ø 6 x 109 x 725 mm force-path-calculation Compression spring D-364R-53 Inquiry formular Compression spring D-364R-53 Spring steel Ø 6 x 109 x 725 mm Inquiry formular Compression spring D-364R-53 Similar compression springs to Compression spring D-364R-53 Spring steel Ø 6 x 109 x 725 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-364R-53 EN 10270-1 6 115 725 440.884 141.2 583.8 13.5 0.755 100.0 | 100.0 | 100.0 | 100.0 VD-364R-53 1.4310 6 115 725 378.674 141.2 583.8 13.5 0.649 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-364R-53 115 725 0.755 EN 10270-1 440.884 141.2 583.8 100.0 | 100.0 | 100.0 | 100.0 D-339Z 85 691 0.802 EN 10270-1 454.103 125.01 565.99 91.8 | 84.2 | 97.0 | 94.1 D-364E 95 763 0.839 EN 10270-1 523.787 138.64 624.36 89.5 | 89.8 | 88.8 | 90.0 D-364V 105 798 1.077 EN 10270-1 691.36 155.97 642.03 80.0 | 92.5 | 77.4 | 70.1 D-389E 120 908 1.094 EN 10270-1 800.839 175.76 732.24 74.5 | 87.1 | 67.4 | 69.1 D-364R-52 115 465 1.199 EN 10270-1 445.771 93.35 371.65 77.4 | 88.0 | 81.3 | 63.0 D-369A 86.3 720 1.393 EN 10270-1 720.488 202.81 517.19 73.0 | 89.9 | 74.9 | 54.2 D-369 86.3 720 1.694 EN 10270-1 933.562 169 551 68.4 | 89.9 | 70.8 | 44.6 D-364U 105 494 1.757 EN 10270-1 691.406 100.47 393.53 64.5 | 84.9 | 65.6 | 43.0 D-389D 120 562 1.784 EN 10270-1 800.955 113.14 448.86 64.9 | 86.4 | 66.0 | 42.3 D-389E-16 105 500 2.079 EN 10270-1 756.827 135.98 364.02 59.5 | 82.0 | 60.3 | 36.3 D-394 108 835 2.256 EN 10270-1 1401.863 213.49 621.51 60.5 | 85.2 | 62.7 | 33.5 D-414C 150 658 2.51 EN 10270-1 1291.274 143.53 514.47 56.4 | 78.0 | 61.1 | 30.1 D-393A 108 630 3.091 EN 10270-1 1452.405 160.11 469.89 55.0 | 85.3 | 55.4 | 24.4 D-414D-16 135 515 3.182 EN 10270-1 1162.387 149.73 365.27 49.4 | 74.3 | 50.2 | 23.7 D-393 108 570 3.338 EN 10270-1 1403.939 149.44 420.56 52.3 | 82.5 | 51.7 | 22.6 Number of similar metal springs: 15 Customs tariff number: 73202081; Compression spring D-364R-53 Country of origin: DE, German; Compression spring D-364R-53 Product image - Compression springs D-364R-53 QR-Code: Compression spring D-364R-53
