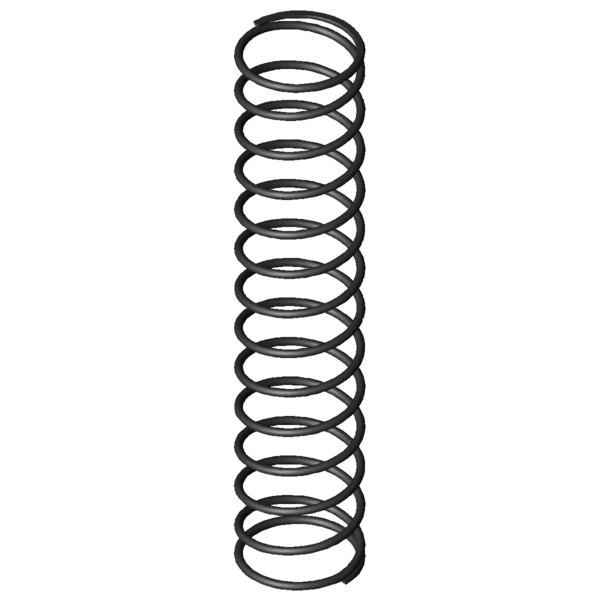

Home » Products » Compression springs » d-389e-16 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-389E-16 Spring steel Ø 7 x 98 x 500 mm Scaled prices - Compression spring D-389E-16 Quantity Single price [EUR] 1 44.4600 EUR 2 35.8800 EUR 3 35.4200 EUR 7 32.5900 EUR 17 30.2500 EUR 37 27.4500 EUR 75 26.9000 EUR 125 26.8590 EUR 175 26.7340 EUR 250 26.6504 EUR 350 26.2023 EUR Compression spring Buy Product image Compression spring D-389E-16 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-389E-16 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 7 mm Wire diameter Di mm Inner coil diameter D 98 mm Mean coil diameter De 105 mm Outer coil diameter Dd 89.3 mm maximum diameter of mandrel Dh 108.3 mm minimum diameter of bush L0 500 mm unstressed spring length Lk mm buckling length Fn 756.827 N maximum force in static use Ln 135.98 mm Minimum length in static use sn 364.02 mm Maximum spring deflection in static use Fndyn 720.818 N maximum force in dynamic use Lndyn 153.3 mm Minimum length in dynamic use shdyn 225.2 mm Maximum stroke in dynamic use S 39.44 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 2.079 N/mm Spring rate Weight 1358.0331 g weight of one spring Fntol 46.6 N (+/-) tolerance of maximum force in static use Fndtol 46.1 N (+/-) tolerance of maximum dynamic force Detol 1.5 mm (+/-) tolerances of outer coil diameter L0tol 16.9 mm (+/-) tolerance of unstressed spring length Price group BF - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-389E-16 Spring steel Ø 7 x 98 x 500 mm Datasheet download pdf file Metal spring characteristic Compression spring D-389E-16 Spring steel Ø 7 x 98 x 500 mm Metal spring characteristic download pdf file CAD data Compression spring D-389E-16 Spring steel Ø 7 x 98 x 500 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-389E-16 Spring steel Ø 7 x 98 x 500 mm force-path-calculation Compression spring D-389E-16 Inquiry formular Compression spring D-389E-16 Spring steel Ø 7 x 98 x 500 mm Inquiry formular Compression spring D-389E-16 Similar compression springs to Compression spring D-389E-16 Spring steel Ø 7 x 98 x 500 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-389E-16 EN 10270-1 7 105 500 756.827 135.98 364.02 12.5 2.079 100.0 | 100.0 | 100.0 | 100.0 VD-389E-16 1.4310 7 105 500 649.643 136.2 363.8 12.5 1.786 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-313U-01 70 492 0.672 EN 10270-1 270.495 89.45 402.55 56.5 | 74.1 | 63.1 | 32.3 D-364R-52 115 465 1.199 EN 10270-1 445.771 93.35 371.65 75.4 | 90.0 | 78.4 | 57.7 D-339Y 85 428 1.309 EN 10270-1 454.906 80.49 347.51 73.4 | 79.3 | 77.8 | 63.0 D-364D 95 472 1.369 EN 10270-1 523.92 89.23 382.77 78.6 | 87.8 | 82.2 | 65.8 D-368A 86.3 490 1.694 EN 10270-1 543.875 169 321 83.9 | 90.1 | 80.0 | 81.5 D-364U 105 494 1.757 EN 10270-1 691.406 100.47 393.53 90.9 | 96.3 | 91.9 | 84.5 D-389D 120 562 1.784 EN 10270-1 800.955 113.14 448.86 88.6 | 92.2 | 87.8 | 85.8 D-389E-16 105 500 2.079 EN 10270-1 756.827 135.98 364.02 100.0 | 100.0 | 100.0 | 100.0 D-368 86.3 490 2.508 EN 10270-1 932.126 118.27 371.73 87.5 | 90.1 | 89.6 | 82.9 D-374A 69.3 500 2.853 EN 10270-1 884.881 189.79 310.21 81.2 | 85.3 | 85.4 | 72.9 D-389E-14 105 350 3.057 EN 10270-1 773.724 96.94 253.06 80.6 | 90.0 | 83.7 | 68.0 D-393A 108 630 3.091 EN 10270-1 1452.405 160.11 469.89 73.4 | 88.0 | 64.8 | 67.3 D-414D-16 135 515 3.182 EN 10270-1 1162.387 149.73 365.27 77.3 | 84.2 | 82.4 | 65.3 D-393 108 570 3.338 EN 10270-1 1403.939 149.44 420.56 74.4 | 90.8 | 70.2 | 62.3 D-374 69.3 500 3.469 EN 10270-1 1185.488 158.29 341.71 74.7 | 85.3 | 78.9 | 59.9 D-399 88 600 4.405 EN 10270-1 1757.757 201 399 66.4 | 84.9 | 67.1 | 47.2 D-394D 98 400 4.579 EN 10270-1 1167 145 255 66.6 | 86.9 | 67.5 | 45.4 D-414D-26 120 460 4.655 EN 10270-1 1473.124 143.51 316.49 66.5 | 85.8 | 69.2 | 44.7 D-392 108 390 4.909 EN 10270-1 1390.586 106.74 283.26 65.3 | 87.6 | 66.1 | 42.4 D-414H 100 531 5.722 EN 10270-1 1935.088 192.84 338.16 63.8 | 89.1 | 66.0 | 36.3 D-414D-24 120 390 5.75 EN 10270-1 1554.735 119.6 270.4 59.6 | 81.1 | 61.5 | 36.2 D-417 135 475 6.136 EN 10270-1 2096.084 133.42 341.58 59.9 | 80.9 | 65.0 | 33.9 D-398 88 410 6.52 EN 10270-1 1753.88 141 269 58.3 | 84.4 | 58.5 | 31.9 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring D-389E-16 Country of origin: DE, German; Compression spring D-389E-16 Product image - Compression springs D-389E-16 QR-Code: Compression spring D-389E-16
