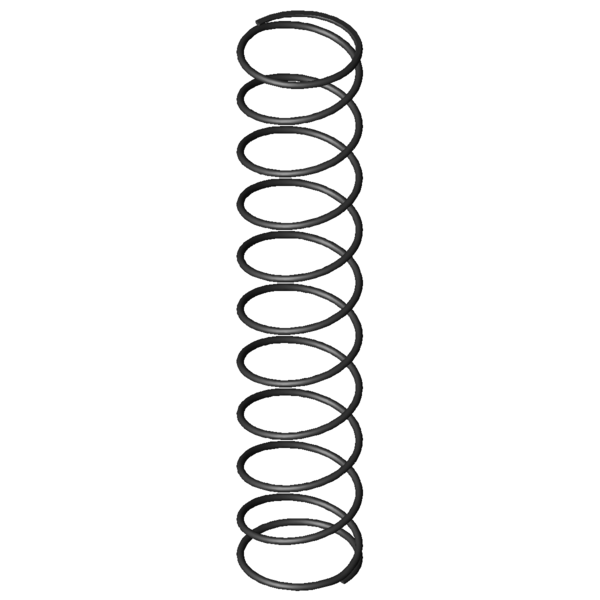

Home » Products » Compression springs » d-364d Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-364D Spring steel Ø 5.5 x 89.5 x 472 mm Scaled prices - Compression spring D-364D Quantity Single price [EUR] 1 15.7400 EUR 2 12.5400 EUR 3 8.4100 EUR 7 6.6100 EUR 17 5.0200 EUR 37 4.3300 EUR 75 4.2600 EUR 125 4.2510 EUR 175 4.2214 EUR 250 4.1716 EUR 350 4.0828 EUR Compression spring Buy Product image Compression spring D-364D Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-364D Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5.5 mm Wire diameter Di mm Inner coil diameter D 89.5 mm Mean coil diameter De 95 mm Outer coil diameter Dd 81.8 mm maximum diameter of mandrel Dh 99.7 mm minimum diameter of bush L0 472 mm unstressed spring length Lk 161.6 mm buckling length Fn 523.92 N maximum force in static use Ln 89.23 mm Minimum length in static use sn 382.77 mm Maximum spring deflection in static use Fndyn 506.138 N maximum force in dynamic use Lndyn 102.22 mm Minimum length in dynamic use shdyn 163.24 mm Maximum stroke in dynamic use S 49.105 mm pitch of spring n 9.5 pc. number of active coils nt pc. total number of coils R 1.369 N/mm Spring rate Weight 607.2485 g weight of one spring Fntol 31.34 N (+/-) tolerance of maximum force in static use Fndtol 31.07 N (+/-) tolerance of maximum dynamic force Detol 1.7 mm (+/-) tolerances of outer coil diameter L0tol 17.15 mm (+/-) tolerance of unstressed spring length Price group AP - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-364D Spring steel Ø 5.5 x 89.5 x 472 mm Datasheet download pdf file Metal spring characteristic Compression spring D-364D Spring steel Ø 5.5 x 89.5 x 472 mm Metal spring characteristic download pdf file CAD data Compression spring D-364D Spring steel Ø 5.5 x 89.5 x 472 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-364D Spring steel Ø 5.5 x 89.5 x 472 mm force-path-calculation Compression spring D-364D Inquiry formular Compression spring D-364D Spring steel Ø 5.5 x 89.5 x 472 mm Inquiry formular Compression spring D-364D Similar compression springs to Compression spring D-364D Spring steel Ø 5.5 x 89.5 x 472 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-364D EN 10270-1 5.5 95 472 523.92 89.23 382.77 9.5 1.369 100.0 | 100.0 | 100.0 | 100.0 VD-364D 1.4310 5.5 95 472 449.993 89.23 382.77 9.5 1.176 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-313U-01 70 492 0.672 EN 10270-1 270.495 89.45 402.55 67.7 | 80.8 | 73.4 | 49.1 D-364R-52 115 465 1.199 EN 10270-1 445.771 93.35 371.65 89.9 | 90.9 | 91.1 | 87.6 D-339Y 85 428 1.309 EN 10270-1 454.906 80.49 347.51 66.1 | 82.2 | 70.3 | 45.9 D-364D 95 472 1.369 EN 10270-1 523.92 89.23 382.77 100.0 | 100.0 | 100.0 | 100.0 D-339Z-04 75 430 1.375 EN 10270-1 448.137 104.1 325.91 69.0 | 85.9 | 72.9 | 48.2 D-368A 86.3 490 1.694 EN 10270-1 543.875 169 321 77.1 | 92.8 | 79.1 | 59.4 D-364U 105 494 1.757 EN 10270-1 691.406 100.47 393.53 85.2 | 91.1 | 86.5 | 77.9 D-389E-16 105 500 2.079 EN 10270-1 756.827 135.98 364.02 78.6 | 87.8 | 82.2 | 65.8 D-367A 86.3 365 2.322 EN 10270-1 553.225 126.73 238.27 74.2 | 85.2 | 78.5 | 59.0 D-368 86.3 490 2.508 EN 10270-1 932.126 118.27 371.73 90.0 | 92.8 | 89.2 | 87.9 D-374A 69.3 500 2.853 EN 10270-1 884.881 189.79 310.21 100.0 | 100.0 | 100.0 | 100.0 D-393 108 570 3.338 EN 10270-1 1403.939 149.44 420.56 61.7 | 79.8 | 64.2 | 41.0 D-374 69.3 500 3.469 EN 10270-1 1185.488 158.29 341.71 88.3 | 100.0 | 82.7 | 82.2 D-389E-26 89 390 3.549 EN 10270-1 928.92 128.26 261.74 62.0 | 85.0 | 62.4 | 38.6 D-367 86.3 355 3.688 EN 10270-1 967.989 92.5 262.5 61.0 | 84.5 | 61.4 | 37.1 D-399 88 600 4.405 EN 10270-1 1757.757 201 399 58.0 | 80.0 | 62.9 | 31.1 D-394D 98 400 4.579 EN 10270-1 1167 145 255 56.4 | 83.5 | 55.8 | 29.9 D-414D-26 120 460 4.655 EN 10270-1 1473.124 143.51 316.49 55.9 | 79.2 | 59.1 | 29.4 D-392 108 390 4.909 EN 10270-1 1390.586 106.74 283.26 54.5 | 79.8 | 55.8 | 27.9 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring D-364D Country of origin: DE, German; Compression spring D-364D Product image - Compression springs D-364D QR-Code: Compression spring D-364D
