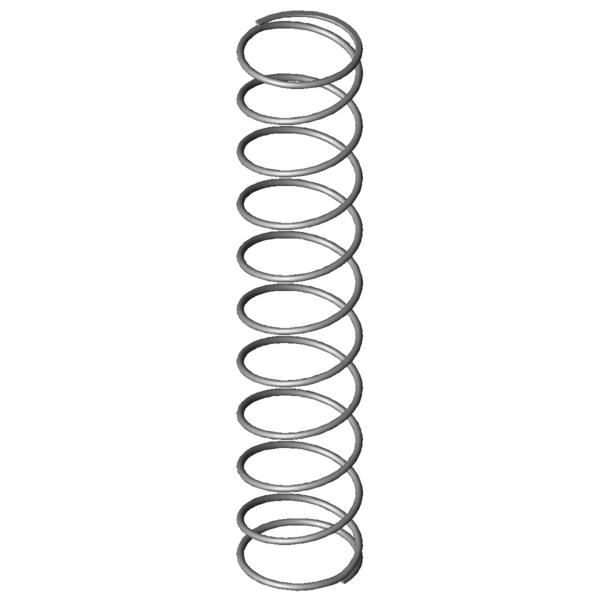

Home » Products » Compression springs » vd-364d Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-364D Stainless steel Ø 5.5 x 89.5 x 472 mm Scaled prices - Compression spring VD-364D Quantity Single price [EUR] 1 16.9900 EUR 2 13.5400 EUR 3 9.7100 EUR 7 8.0900 EUR 17 6.3200 EUR 37 5.6200 EUR 75 5.5400 EUR 125 5.5400 EUR 175 5.5400 EUR 250 5.5400 EUR 350 5.5400 EUR Compression spring Buy Product image Compression spring VD-364D Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-364D Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5.5 mm Wire diameter Di mm Inner coil diameter D 89.5 mm Mean coil diameter De 95 mm Outer coil diameter Dd 81.8 mm maximum diameter of mandrel Dh 99.7 mm minimum diameter of bush L0 472 mm unstressed spring length Lk mm buckling length Fn 449.993 N maximum force in static use Ln 89.23 mm Minimum length in static use sn 382.77 mm Maximum spring deflection in static use Fndyn 434.72 N maximum force in dynamic use Lndyn 102.22 mm Minimum length in dynamic use shdyn 93.27 mm Maximum stroke in dynamic use S 49.105 mm pitch of spring n 9.5 pc. number of active coils nt pc. total number of coils R 1.176 N/mm Spring rate Weight 607.2485 g weight of one spring Fntol 31.34 N (+/-) tolerance of maximum force in static use Fndtol 31.07 N (+/-) tolerance of maximum dynamic force Detol 1.7 mm (+/-) tolerances of outer coil diameter L0tol 17.15 mm (+/-) tolerance of unstressed spring length Price group #AT - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-364D Stainless steel Ø 5.5 x 89.5 x 472 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-364D Stainless steel Ø 5.5 x 89.5 x 472 mm Metal spring characteristic download pdf file CAD data Compression spring VD-364D Stainless steel Ø 5.5 x 89.5 x 472 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-364D Stainless steel Ø 5.5 x 89.5 x 472 mm force-path-calculation Compression spring VD-364D Inquiry formular Compression spring VD-364D Stainless steel Ø 5.5 x 89.5 x 472 mm Inquiry formular Compression spring VD-364D Similar compression springs to Compression spring VD-364D Stainless steel Ø 5.5 x 89.5 x 472 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-364D 1.4310 5.5 95 472 449.993 89.23 382.77 9.5 1.176 76.4 | 87.3 | 80.6 | 61.3 D-364D EN 10270-1 5.5 95 472 523.92 89.23 382.77 9.5 1.369 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-313U-01 70 492 0.577 1.4310 232.327 89.45 402.55 67.7 | 80.8 | 73.4 | 49.1 VD-364R-52 115 465 1.03 1.4310 382.871 93.35 371.65 89.9 | 90.9 | 91.1 | 87.6 VD-339H 75 380 1.078 1.4310 332.239 71.76 308.24 83.1 | 80.4 | 77.2 | 91.7 VD-339Y 85 428 1.124 1.4310 390.717 80.49 347.51 71.4 | 78.8 | 71.3 | 64.1 VD-364D 95 472 1.176 1.4310 449.993 89.23 382.77 76.4 | 87.3 | 80.6 | 61.3 VD-339Z-04 75 430 1.181 1.4310 384.903 104.1 325.91 90.6 | 87.0 | 85.3 | 99.5 VD-368A 86.3 490 1.455 1.4310 467.132 169 321 68.1 | 80.8 | 73.9 | 49.5 VD-364U 105 494 1.509 1.4310 593.845 100.47 393.53 66.0 | 80.8 | 69.4 | 47.7 VD-389E-16 105 500 1.786 1.4310 649.643 136.2 363.8 60.8 | 78.2 | 63.8 | 40.4 VD-367A 86.3 365 1.994 1.4310 475.163 126.73 238.27 74.2 | 85.2 | 78.5 | 59.0 VD-364C 95 278 2.031 1.4310 450.206 56.29 221.71 74.4 | 86.3 | 78.9 | 57.9 VD-368 86.3 490 2.154 1.4310 800.599 118.27 371.73 57.4 | 80.8 | 57.9 | 33.5 VD-374A 69.3 500 2.45 1.4310 760.021 189.79 310.21 67.7 | 84.9 | 70.1 | 48.0 VD-389E-14 105 350 2.626 1.4310 664.391 97 253 64.2 | 81.1 | 66.9 | 44.8 VD-393 108 570 2.867 1.4310 1205.837 149.44 420.56 61.7 | 79.8 | 64.2 | 41.0 VD-374 69.3 500 2.98 1.4310 1018.211 158.29 341.71 63.7 | 84.9 | 66.7 | 39.5 VD-389E-26 89 390 3.048 1.4310 797.571 128.35 261.65 62.0 | 85.0 | 62.4 | 38.6 VD-367 86.3 355 3.167 1.4310 837.102 90.7 264.3 61.0 | 84.5 | 61.4 | 37.1 VD-399 88 600 3.784 1.4310 1509.73 201 399 58.0 | 80.0 | 62.9 | 31.1 VD-394D 98 400 3.933 1.4310 1002.93 145 255 56.4 | 83.5 | 55.7 | 29.9 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring VD-364D Country of origin: DE, German; Compression spring VD-364D Product image - Compression springs VD-364D QR-Code: Compression spring VD-364D
