Compression spring D-389E-26 Spring steel Ø 7 x 82 x 390 mm

Scaled prices - Compression spring D-389E-26

Quantity	Single price [EUR]
1	18.6200 EUR
2	14.8300 EUR
3	11.1000 EUR
7	9.4000 EUR
17	7.8300 EUR
37	6.8300 EUR
75	6.7200 EUR
125	6.7445 EUR
175	6.6582 EUR
250	6.5812 EUR
350	6.2680 EUR

Compression spring Buy

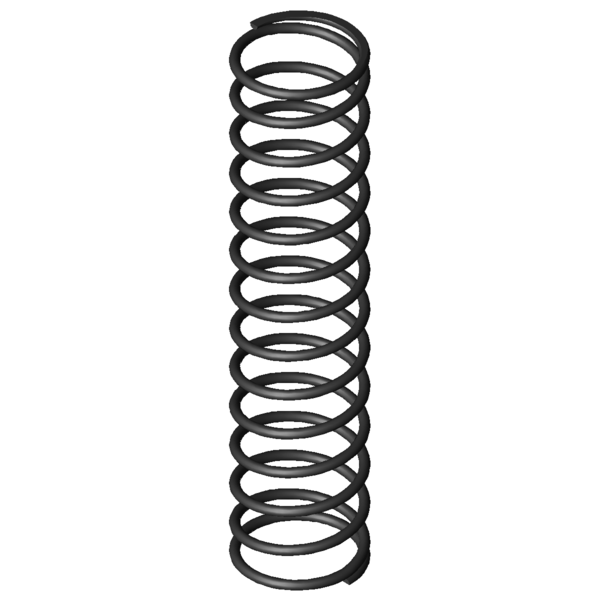

Product image Compression spring D-389E-26

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-389E-26

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	7	mm	Wire diameter
Di		mm	Inner coil diameter
D	82	mm	Mean coil diameter
De	89	mm	Outer coil diameter
Dd	73.3	mm	maximum diameter of mandrel
Dh	92.6	mm	minimum diameter of bush
L0	390	mm	unstressed spring length
Lk		mm	buckling length
Fn	928.92	N	maximum force in static use
Ln	128.26	mm	Minimum length in static use
sn	261.74	mm	Maximum spring deflection in static use
Fndyn	881.221	N	maximum force in dynamic use
Lndyn	141.7	mm	Minimum length in dynamic use
shdyn	150.7	mm	Maximum stroke in dynamic use
S	30.64	mm	pitch of spring
n	12.5	pc.	number of active coils
nt		pc.	total number of coils
R	3.549	N/mm	Spring rate
Weight	1136.3134	g	weight of one spring
Fntol	51.1	N	(+/-) tolerance of maximum force in static use
Fndtol	50.4	N	(+/-) tolerance of maximum dynamic force
Detol	1.5	mm	(+/-) tolerances of outer coil diameter
L0tol	10.4	mm	(+/-) tolerance of unstressed spring length
Price group	AX	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-389E-26 Spring steel Ø 7 x 82 x 390 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-389E-26 Spring steel Ø 7 x 82 x 390 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-389E-26 Spring steel Ø 7 x 82 x 390 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-389E-26 Spring steel Ø 7 x 82 x 390 mm

force-path-calculation Compression spring D-389E-26

Inquiry formular Compression spring D-389E-26 Spring steel Ø 7 x 82 x 390 mm

Inquiry formular Compression spring D-389E-26
