Compression spring D-486 Spring steel Ø 11 x 89 x 420 mm

Scaled prices - Compression spring D-486

Quantity	Single price [EUR]
1	44.4600 EUR
2	35.8800 EUR
3	35.4200 EUR
7	32.5900 EUR
17	30.2500 EUR
37	27.4500 EUR
75	26.9000 EUR
125	26.8590 EUR
175	26.7340 EUR
250	26.6504 EUR
350	26.2023 EUR

Compression spring Buy

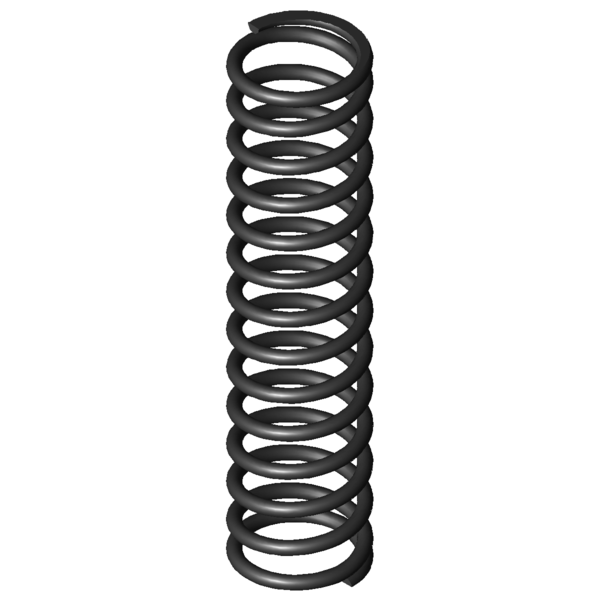

Product image Compression spring D-486

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-486

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	11	mm	Wire diameter
Di		mm	Inner coil diameter
D	89	mm	Mean coil diameter
De	100	mm	Outer coil diameter
Dd		mm	maximum diameter of mandrel
Dh		mm	minimum diameter of bush
L0	420	mm	unstressed spring length
Lk		mm	buckling length
Fn	3947.997	N	maximum force in static use
Ln	186.75	mm	Minimum length in static use
sn	233.25	mm	Maximum spring deflection in static use
Fndyn		N	maximum force in dynamic use
Lndyn		mm	Minimum length in dynamic use
shdyn		mm	Maximum stroke in dynamic use
S	32.72	mm	pitch of spring
n	12.5	pc.	number of active coils
nt		pc.	total number of coils
R	16.926	N/mm	Spring rate
Weight	3045.5349	g	weight of one spring
Fntol	169	N	(+/-) tolerance of maximum force in static use
Fndtol		N	(+/-) tolerance of maximum dynamic force
Detol	1.5	mm	(+/-) tolerances of outer coil diameter
L0tol	6.54	mm	(+/-) tolerance of unstressed spring length
Price group	BF	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-486 Spring steel Ø 11 x 89 x 420 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-486 Spring steel Ø 11 x 89 x 420 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-486 Spring steel Ø 11 x 89 x 420 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-486 Spring steel Ø 11 x 89 x 420 mm

force-path-calculation Compression spring D-486

Inquiry formular Compression spring D-486 Spring steel Ø 11 x 89 x 420 mm

Inquiry formular Compression spring D-486

Similar compression springs to Compression spring D-486 Spring steel Ø 11 x 89 x 420 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-486	EN 10270-1	11	100	420	3947.997	186.75	233.25	12.5	16.926	100.0 \| 100.0 \| 100.0 \| 100.0

Number of similar metal springs: 1

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-389E-26	89	390	3.549	EN 10270-1	928.92	128.26	261.74	53.0 \| 81.8 \| 56.3 \| 21.0
D-367	86.3	355	3.688	EN 10270-1	967.989	92.5	262.5	51.5 \| 76.0 \| 56.7 \| 21.8
D-394D	98	400	4.579	EN 10270-1	1167	145	255	58.7 \| 88.7 \| 60.5 \| 27.0
D-414D-26	120	460	4.655	EN 10270-1	1473.124	143.51	316.49	56.2 \| 85.5 \| 55.5 \| 27.5
D-392	108	390	4.909	EN 10270-1	1390.586	106.74	283.26	57.9 \| 86.1 \| 58.8 \| 29.0
D-389J	75	405	5.019	EN 10270-1	1286.281	148.71	256.29	56.6 \| 78.4 \| 61.8 \| 29.7
D-414H	100	531	5.722	EN 10270-1	1935.088	192.84	338.16	59.9 \| 87.0 \| 59.0 \| 33.8
D-414D-24	120	390	5.75	EN 10270-1	1554.735	119.6	270.4	60.9 \| 86.0 \| 62.8 \| 34.0
D-398	88	410	6.52	EN 10270-1	1753.88	141	269	63.4 \| 86.1 \| 65.6 \| 38.5
D-423	110	500	8.15	EN 10270-1	2638.563	176.25	323.75	68.7 \| 88.6 \| 69.4 \| 48.2
D-404	71	435	9.021	EN 10270-1	2186.881	192.57	242.43	69.7 \| 80.1 \| 75.8 \| 53.3
D-414G	100	332	9.337	EN 10270-1	1931.173	125.16	206.84	70.3 \| 87.0 \| 68.8 \| 55.2
D-422	110	345	11.985	EN 10270-1	2621.783	126.25	218.75	79.6 \| 88.0 \| 80.1 \| 70.8
D-428	90	370	15.918	EN 10270-1	3191.553	169.5	200.5	89.0 \| 89.7 \| 83.4 \| 94.0
D-486	100	420	16.926	EN 10270-1	3947.997	186.75	233.25	100.0 \| 100.0 \| 100.0 \| 100.0
D-534	110	460	17.956	EN 10270-1	4596.568	204.01	255.99	91.4 \| 91.3 \| 88.5 \| 94.3
D-434	73	410	22.023	EN 10270-1	3864.709	234.51	175.49	83.5 \| 87.2 \| 86.6 \| 76.9
D-484	100	290	24.891	EN 10270-1	3882.284	134.03	155.97	80.1 \| 89.7 \| 82.6 \| 68.0
D-498	75	440	30.756	EN 10270-1	5628.307	257	183	73.2 \| 90.2 \| 74.3 \| 55.0
D-546	80	460	36.316	EN 10270-1	6577.023	278.89	181.11	67.7 \| 87.7 \| 68.8 \| 46.6
D-556	75	425	45.667	EN 10270-1	6741.389	277.38	147.62	62.2 \| 88.5 \| 60.9 \| 37.1

Number of similar metal springs: 20

Customs tariff number: 73202081; Compression spring D-486
