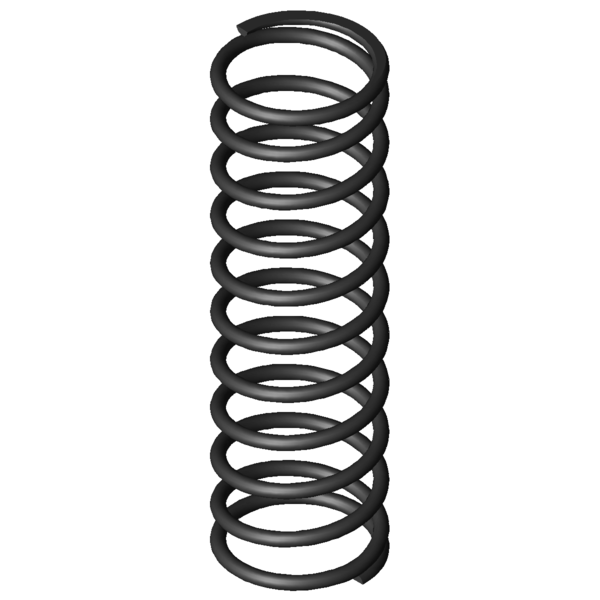

Home » Products » Compression springs » d-414g Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-414G Spring steel Ø 9 x 91 x 332 mm Scaled prices - Compression spring D-414G Quantity Single price [EUR] 1 20.4700 EUR 2 16.3100 EUR 3 13.5600 EUR 7 11.6800 EUR 17 10.4200 EUR 37 9.2500 EUR 75 9.0900 EUR 125 9.1129 EUR 175 8.9972 EUR 250 8.7744 EUR 350 8.4586 EUR Compression spring Buy Product image Compression spring D-414G Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-414G Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 9 mm Wire diameter Di mm Inner coil diameter D 91 mm Mean coil diameter De 100 mm Outer coil diameter Dd 80 mm maximum diameter of mandrel Dh 103 mm minimum diameter of bush L0 332 mm unstressed spring length Lk mm buckling length Fn 1931.173 N maximum force in static use Ln 125.16 mm Minimum length in static use sn 206.84 mm Maximum spring deflection in static use Fndyn 1830.072 N maximum force in dynamic use Lndyn 135.99 mm Minimum length in dynamic use shdyn 90.32 mm Maximum stroke in dynamic use S 34 mm pitch of spring n 9.5 pc. number of active coils nt pc. total number of coils R 9.337 N/mm Spring rate Weight 1653.2725 g weight of one spring Fntol 93.6 N (+/-) tolerance of maximum force in static use Fndtol 92.1 N (+/-) tolerance of maximum dynamic force Detol 1.5 mm (+/-) tolerances of outer coil diameter L0tol 6.92 mm (+/-) tolerance of unstressed spring length Price group BA - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-414G Spring steel Ø 9 x 91 x 332 mm Datasheet download pdf file Metal spring characteristic Compression spring D-414G Spring steel Ø 9 x 91 x 332 mm Metal spring characteristic download pdf file CAD data Compression spring D-414G Spring steel Ø 9 x 91 x 332 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-414G Spring steel Ø 9 x 91 x 332 mm force-path-calculation Compression spring D-414G Inquiry formular Compression spring D-414G Spring steel Ø 9 x 91 x 332 mm Inquiry formular Compression spring D-414G Similar compression springs to Compression spring D-414G Spring steel Ø 9 x 91 x 332 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-414G EN 10270-1 9 100 332 1931.173 125.16 206.84 9.5 9.337 100.0 | 100.0 | 100.0 | 100.0 VD-414G 1.4310 9 100 332 1658.676 125.16 206.84 9.5 8.019 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-389E-14 105 350 3.057 EN 10270-1 773.724 96.94 253.06 61.0 | 89.3 | 60.9 | 32.7 D-389C 120 331 3.082 EN 10270-1 800.143 71.4 259.6 60.2 | 86.9 | 60.6 | 33.0 D-369G 78.3 310 3.44 EN 10270-1 671.948 114.65 195.35 60.7 | 80.6 | 64.6 | 36.8 D-373A 69.3 340 3.469 EN 10270-1 630.407 158.29 181.71 58.8 | 79.0 | 60.2 | 37.2 D-389E-26 89 390 3.549 EN 10270-1 928.92 128.26 261.74 61.8 | 84.0 | 63.6 | 38.0 D-367 86.3 355 3.688 EN 10270-1 967.989 92.5 262.5 62.4 | 83.3 | 64.5 | 39.5 D-394D 98 400 4.579 EN 10270-1 1167 145 255 69.9 | 90.0 | 70.8 | 49.0 D-392 108 390 4.909 EN 10270-1 1390.586 106.74 283.26 71.3 | 88.9 | 72.5 | 52.6 D-373 69.3 340 5.135 EN 10270-1 1175.608 111.04 228.96 69.9 | 79.0 | 75.6 | 55.0 D-389E-24 89 280 5.219 EN 10270-1 982.765 91.7 188.3 70.2 | 83.7 | 71.0 | 55.9 D-398 88 410 6.52 EN 10270-1 1753.88 141 269 79.9 | 86.0 | 83.9 | 69.8 D-394C 98 285 6.734 EN 10270-1 1199.3 106.9 178.1 79.0 | 90.9 | 74.1 | 72.1 D-391 108 260 7.587 EN 10270-1 1405.759 74.71 185.29 83.0 | 86.6 | 81.2 | 81.3 D-399D 81 345 7.946 EN 10270-1 1562.981 148.29 196.71 87.3 | 88.7 | 88.0 | 85.1 D-414G 100 332 9.337 EN 10270-1 1931.173 125.16 206.84 100.0 | 100.0 | 100.0 | 100.0 D-397 88 285 9.588 EN 10270-1 1764.235 101 184 91.7 | 87.6 | 90.2 | 97.4 D-422 110 345 11.985 EN 10270-1 2621.783 126.25 218.75 84.8 | 92.4 | 84.1 | 77.9 D-428 90 370 15.918 EN 10270-1 3191.553 169.5 200.5 75.8 | 89.9 | 78.7 | 58.7 D-486 100 420 16.926 EN 10270-1 3947.997 186.75 233.25 70.3 | 87.0 | 68.8 | 55.2 D-427 90 255 23.409 EN 10270-1 3121.326 121.66 133.34 62.9 | 85.6 | 63.2 | 39.9 D-484 100 290 24.891 EN 10270-1 3882.284 134.03 155.97 63.3 | 89.7 | 62.6 | 37.5 D-532 110 300 26.406 EN 10270-1 4055.782 146.4 153.6 60.6 | 85.4 | 60.9 | 35.4 D-496 75 300 45.519 EN 10270-1 5451.674 180.23 119.77 49.9 | 82.4 | 46.7 | 20.5 D-544 80 320 53.747 EN 10270-1 6652.56 196.23 123.78 48.5 | 83.8 | 44.4 | 17.4 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring D-414G Country of origin: DE, German; Compression spring D-414G Product image - Compression springs D-414G QR-Code: Compression spring D-414G
