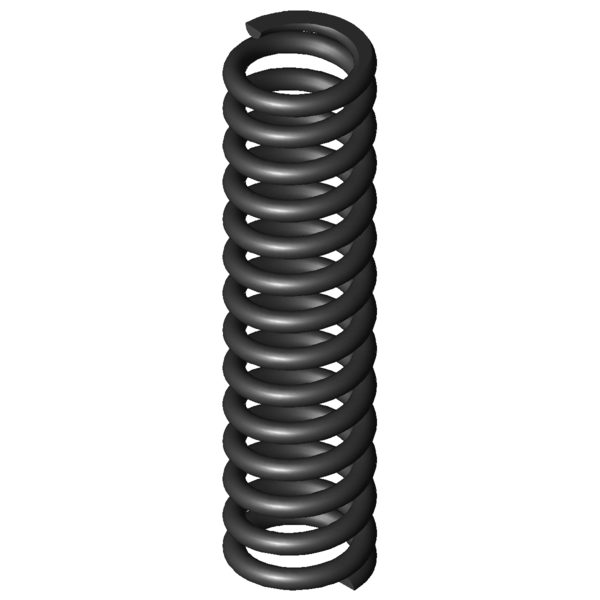

Home » Products » Compression springs » d-544 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-544 Spring steel Ø 12 x 68 x 320 mm Scaled prices - Compression spring D-544 Quantity Single price [EUR] 1 44.4600 EUR 2 35.8800 EUR 3 35.4200 EUR 7 32.5900 EUR 17 30.2500 EUR 37 27.4500 EUR 75 26.9000 EUR 125 26.8590 EUR 175 26.7340 EUR 250 26.6504 EUR 350 26.2023 EUR Compression spring Buy Product image Compression spring D-544 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-544 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 12 mm Wire diameter Di mm Inner coil diameter D 68 mm Mean coil diameter De 80 mm Outer coil diameter Dd mm maximum diameter of mandrel Dh mm minimum diameter of bush L0 320 mm unstressed spring length Lk mm buckling length Fn 6652.56 N maximum force in static use Ln 196.23 mm Minimum length in static use sn 123.78 mm Maximum spring deflection in static use Fndyn N maximum force in dynamic use Lndyn mm Minimum length in dynamic use shdyn mm Maximum stroke in dynamic use S 24.64 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 53.747 N/mm Spring rate Weight 2769.2337 g weight of one spring Fntol 342 N (+/-) tolerance of maximum force in static use Fndtol N (+/-) tolerance of maximum dynamic force Detol 1 mm (+/-) tolerances of outer coil diameter L0tol 4.51 mm (+/-) tolerance of unstressed spring length Price group BF - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-544 Spring steel Ø 12 x 68 x 320 mm Datasheet download pdf file Metal spring characteristic Compression spring D-544 Spring steel Ø 12 x 68 x 320 mm Metal spring characteristic download pdf file CAD data Compression spring D-544 Spring steel Ø 12 x 68 x 320 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-544 Spring steel Ø 12 x 68 x 320 mm force-path-calculation Compression spring D-544 Inquiry formular Compression spring D-544 Spring steel Ø 12 x 68 x 320 mm Inquiry formular Compression spring D-544 Similar compression springs to Compression spring D-544 Spring steel Ø 12 x 68 x 320 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-544 EN 10270-1 12 80 320 6652.56 196.23 123.78 12.5 53.747 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-373A 69.3 340 3.469 EN 10270-1 630.407 158.29 181.71 41.0 | 77.7 | 38.8 | 6.5 D-367 86.3 355 3.688 EN 10270-1 967.989 92.5 262.5 38.7 | 78.4 | 30.9 | 6.9 D-364J 60 341 3.715 EN 10270-1 831.004 117.33 223.67 37.5 | 71.6 | 33.9 | 6.9 D-373 69.3 340 5.135 EN 10270-1 1175.608 111.04 228.96 41.1 | 77.7 | 35.9 | 9.6 D-389E-24 89 280 5.219 EN 10270-1 982.765 91.7 188.3 42.8 | 78.6 | 40.3 | 9.7 D-399D 81 345 7.946 EN 10270-1 1562.981 148.29 196.71 48.0 | 86.1 | 43.2 | 14.8 D-389H 75 254 8.189 EN 10270-1 1289.187 96.56 157.44 47.1 | 77.2 | 49.0 | 15.2 D-414G 100 332 9.337 EN 10270-1 1931.173 125.16 206.84 48.5 | 83.8 | 44.4 | 17.4 D-397 88 285 9.588 EN 10270-1 1764.235 101 184 49.0 | 82.2 | 46.9 | 17.8 D-403 71 300 13.35 EN 10270-1 2198.788 135.3 164.7 54.0 | 83.1 | 54.1 | 24.8 D-428 90 370 15.918 EN 10270-1 3191.553 169.5 200.5 56.9 | 86.2 | 54.9 | 29.6 D-433 73 285 32.594 EN 10270-1 3913.159 164.94 120.06 75.5 | 87.9 | 77.9 | 60.6 D-439 60 335 44.054 EN 10270-1 4606.402 230.44 104.56 81.1 | 84.6 | 76.9 | 82.0 D-496 75 300 45.519 EN 10270-1 5451.674 180.23 119.77 89.0 | 93.1 | 89.4 | 84.7 D-544 80 320 53.747 EN 10270-1 6652.56 196.23 123.78 100.0 | 100.0 | 100.0 | 100.0 D-554 75 295 67.587 EN 10270-1 6745.042 195.2 99.8 88.2 | 95.3 | 89.6 | 79.5 D-542 80 220 79.04 EN 10270-1 6235.229 141.11 78.89 78.8 | 89.6 | 78.7 | 68.0 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring D-544 Country of origin: DE, German; Compression spring D-544 Product image - Compression springs D-544 QR-Code: Compression spring D-544
