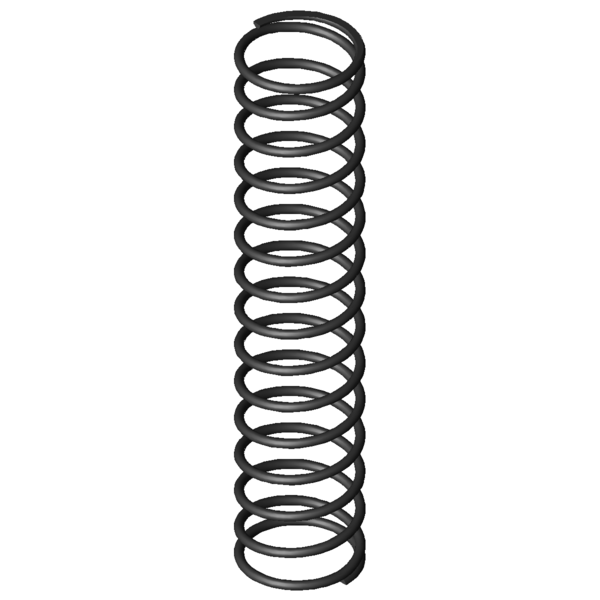

Home » Products » Compression springs » d-364r-63 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-364R-63 Spring steel Ø 6 x 71 x 365 mm Scaled prices - Compression spring D-364R-63 Quantity Single price [EUR] 1 14.9000 EUR 2 11.8700 EUR 3 7.7300 EUR 7 5.7700 EUR 17 4.1600 EUR 37 3.5700 EUR 75 3.5200 EUR 125 3.5057 EUR 175 3.4790 EUR 250 3.4039 EUR 350 3.3561 EUR Compression spring Buy Product image Compression spring D-364R-63 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-364R-63 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 6 mm Wire diameter Di mm Inner coil diameter D 71 mm Mean coil diameter De 77 mm Outer coil diameter Dd 63 mm maximum diameter of mandrel Dh 80 mm minimum diameter of bush L0 365 mm unstressed spring length Lk mm buckling length Fn 674.623 N maximum force in static use Ln 118.11 mm Minimum length in static use sn 246.89 mm Maximum spring deflection in static use Fndyn 640.312 N maximum force in dynamic use Lndyn 130.67 mm Minimum length in dynamic use shdyn 150.66 mm Maximum stroke in dynamic use S 26.593 mm pitch of spring n 13.5 pc. number of active coils nt pc. total number of coils R 2.733 N/mm Spring rate Weight 772.7033 g weight of one spring Fntol 38.85 N (+/-) tolerance of maximum force in static use Fndtol 37.85 N (+/-) tolerance of maximum dynamic force Detol 1.2 mm (+/-) tolerances of outer coil diameter L0tol 8.6 mm (+/-) tolerance of unstressed spring length Price group AM - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-364R-63 Spring steel Ø 6 x 71 x 365 mm Datasheet download pdf file Metal spring characteristic Compression spring D-364R-63 Spring steel Ø 6 x 71 x 365 mm Metal spring characteristic download pdf file CAD data Compression spring D-364R-63 Spring steel Ø 6 x 71 x 365 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-364R-63 Spring steel Ø 6 x 71 x 365 mm force-path-calculation Compression spring D-364R-63 Inquiry formular Compression spring D-364R-63 Spring steel Ø 6 x 71 x 365 mm Inquiry formular Compression spring D-364R-63 Similar compression springs to Compression spring D-364R-63 Spring steel Ø 6 x 71 x 365 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-364R-63 EN 10270-1 6 77 365 674.623 118.11 246.89 13.5 2.733 100.0 | 100.0 | 100.0 | 100.0 VD-364R-63 1.4310 6 77 365 579.431 118.11 246.89 13.5 2.347 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-313U 70 379 0.955 EN 10270-1 299.531 65.32 313.68 60.4 | 84.6 | 61.6 | 34.9 D-313T-01 70 312 1.067 EN 10270-1 269.705 59.28 252.72 63.0 | 81.0 | 68.8 | 39.1 D-339H 75 380 1.255 EN 10270-1 386.821 71.76 308.24 68.0 | 89.5 | 68.7 | 45.9 D-339J-12 68 325 1.305 EN 10270-1 309.762 87.68 237.32 67.6 | 84.1 | 71.0 | 47.8 D-339Z-04 75 430 1.375 EN 10270-1 448.137 104.1 325.91 70.0 | 88.5 | 71.1 | 50.3 D-343A 68 395 1.376 EN 10270-1 359.554 133.78 261.22 70.8 | 88.0 | 73.9 | 50.4 D-343 68 395 2.037 EN 10270-1 613.918 93.63 301.37 83.0 | 88.0 | 86.5 | 74.6 D-367A 86.3 365 2.322 EN 10270-1 553.225 126.73 238.27 89.7 | 94.8 | 89.3 | 85.0 D-364R-63 77 365 2.733 EN 10270-1 674.623 118.11 246.89 100.0 | 100.0 | 100.0 | 100.0 D-364E-16 70 335 2.779 EN 10270-1 650.875 100.81 234.19 95.1 | 91.5 | 95.7 | 98.3 D-369G 78.3 310 3.44 EN 10270-1 671.948 114.65 195.35 87.2 | 92.8 | 89.4 | 79.4 D-373A 69.3 340 3.469 EN 10270-1 630.407 158.29 181.71 85.0 | 92.8 | 83.5 | 78.8 D-389E-26 89 390 3.549 EN 10270-1 928.92 128.26 261.74 83.0 | 88.6 | 83.5 | 77.0 D-367 86.3 355 3.688 EN 10270-1 967.989 92.5 262.5 83.3 | 93.9 | 81.9 | 74.1 D-389J 75 405 5.019 EN 10270-1 1286.281 148.71 256.29 73.3 | 91.1 | 74.4 | 54.4 D-373 69.3 340 5.135 EN 10270-1 1175.608 111.04 228.96 73.7 | 92.8 | 75.1 | 53.2 D-379A 56.3 365 5.706 EN 10270-1 1044.68 181.92 183.08 68.9 | 89.5 | 69.4 | 47.9 D-398 88 410 6.52 EN 10270-1 1753.88 141 269 63.6 | 83.8 | 65.1 | 41.9 D-379 56.3 365 6.94 EN 10270-1 1479.452 151.82 213.18 64.9 | 89.5 | 66.0 | 39.4 D-399D 81 345 7.946 EN 10270-1 1562.981 148.29 196.71 61.3 | 88.2 | 61.4 | 34.4 D-404 71 435 9.021 EN 10270-1 2186.881 192.57 242.43 59.5 | 83.7 | 64.5 | 30.3 D-403 71 300 13.35 EN 10270-1 2198.788 135.3 164.7 50.8 | 83.1 | 48.7 | 20.5 D-428 90 370 15.918 EN 10270-1 3191.553 169.5 200.5 49.9 | 81.4 | 51.2 | 17.2 D-434 73 410 22.023 EN 10270-1 3864.709 234.51 175.49 46.0 | 81.3 | 44.3 | 12.4 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring D-364R-63 Country of origin: DE, German; Compression spring D-364R-63 Product image - Compression springs D-364R-63 QR-Code: Compression spring D-364R-63
