Compression spring D-364E-16 Spring steel Ø 5.5 x 64.5 x 335 mm

Scaled prices - Compression spring D-364E-16

Quantity	Single price [EUR]
1	14.9000 EUR
2	11.8700 EUR
3	7.7300 EUR
7	5.7700 EUR
17	4.1600 EUR
37	3.5700 EUR
75	3.5200 EUR
125	3.5057 EUR
175	3.4790 EUR
250	3.4039 EUR
350	3.3561 EUR

Compression spring Buy

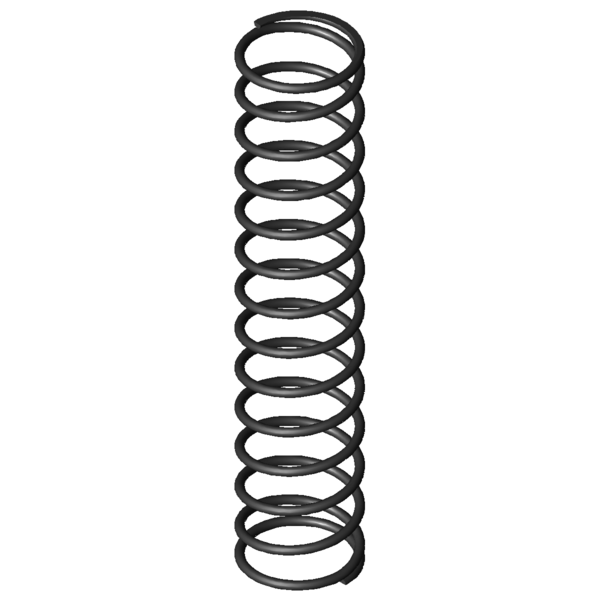

Product image Compression spring D-364E-16

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-364E-16

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	5.5	mm	Wire diameter
Di		mm	Inner coil diameter
D	64.5	mm	Mean coil diameter
De	70	mm	Outer coil diameter
Dd	57.6	mm	maximum diameter of mandrel
Dh	71.5	mm	minimum diameter of bush
L0	335	mm	unstressed spring length
Lk	90.6	mm	buckling length
Fn	650.875	N	maximum force in static use
Ln	100.81	mm	Minimum length in static use
sn	234.19	mm	Maximum spring deflection in static use
Fndyn	621.443	N	maximum force in dynamic use
Lndyn	111.4	mm	Minimum length in dynamic use
shdyn	116	mm	Maximum stroke in dynamic use
S	26.36	mm	pitch of spring
n	12.5	pc.	number of active coils
nt		pc.	total number of coils
R	2.779	N/mm	Spring rate
Weight	551.7893	g	weight of one spring
Fntol	34.4	N	(+/-) tolerance of maximum force in static use
Fndtol	34	N	(+/-) tolerance of maximum dynamic force
Detol	1.2	mm	(+/-) tolerances of outer coil diameter
L0tol	8.7	mm	(+/-) tolerance of unstressed spring length
Price group	AM	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-364E-16 Spring steel Ø 5.5 x 64.5 x 335 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-364E-16 Spring steel Ø 5.5 x 64.5 x 335 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-364E-16 Spring steel Ø 5.5 x 64.5 x 335 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-364E-16 Spring steel Ø 5.5 x 64.5 x 335 mm

force-path-calculation Compression spring D-364E-16

Inquiry formular Compression spring D-364E-16 Spring steel Ø 5.5 x 64.5 x 335 mm

Inquiry formular Compression spring D-364E-16

Similar compression springs to Compression spring D-364E-16 Spring steel Ø 5.5 x 64.5 x 335 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-364E-16	EN 10270-1	5.5	70	335	650.875	100.81	234.19	12.5	2.779	100.0 \| 100.0 \| 100.0 \| 100.0
VD-364E-16	1.4310	5.5	70	335	558.819	100.9	234.1	12.5	2.387	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-313U	70	379	0.955	EN 10270-1	299.531	65.32	313.68	60.6 \| 87.0 \| 60.3 \| 34.4
D-313D	60	319	1.004	EN 10270-1	262.625	57.41	261.59	61.1 \| 82.1 \| 64.9 \| 36.1
D-313T-01	70	312	1.067	EN 10270-1	269.705	59.28	252.72	64.7 \| 88.6 \| 67.1 \| 38.4
D-317A	54	335	1.128	EN 10270-1	257.424	106.74	228.26	64.1 \| 83.3 \| 68.5 \| 40.6
D-339H	75	380	1.255	EN 10270-1	386.821	71.76	308.24	66.9 \| 87.8 \| 67.7 \| 45.2
D-339J-12	68	325	1.305	EN 10270-1	309.762	87.68	237.32	70.7 \| 92.0 \| 73.1 \| 47.0
D-343A	68	395	1.376	EN 10270-1	359.554	133.78	261.22	71.0 \| 91.0 \| 72.4 \| 49.5
D-317	54	335	1.669	EN 10270-1	434.441	74.72	260.28	73.9 \| 83.3 \| 78.4 \| 60.1
D-343	68	395	2.037	EN 10270-1	613.918	93.63	301.37	83.4 \| 91.0 \| 86.0 \| 73.3
D-364R-34	69	296	2.125	EN 10270-1	320.724	145.08	150.92	76.1 \| 95.0 \| 56.9 \| 76.5
D-339Z-03	75	273	2.184	EN 10270-1	444.982	69.25	203.76	81.6 \| 88.6 \| 77.7 \| 78.6
D-364R-63	77	365	2.733	EN 10270-1	674.623	118.11	246.89	95.1 \| 91.5 \| 95.7 \| 98.3
D-364E-16	70	335	2.779	EN 10270-1	650.875	100.81	234.19	100.0 \| 100.0 \| 100.0 \| 100.0
D-342	68	275	2.996	EN 10270-1	623.505	66.87	208.13	91.7 \| 90.0 \| 92.3 \| 92.8
D-369G	78.3	310	3.44	EN 10270-1	671.948	114.65	195.35	86.9 \| 89.7 \| 90.1 \| 80.8
D-373A	69.3	340	3.469	EN 10270-1	630.407	158.29	181.71	87.4 \| 94.9 \| 87.2 \| 80.1
D-364J	60	341	3.715	EN 10270-1	831.004	117.33	223.67	85.5 \| 94.7 \| 86.9 \| 74.8
D-389J	75	405	5.019	EN 10270-1	1286.281	148.71	256.29	70.4 \| 84.9 \| 71.0 \| 55.4
D-373	69.3	340	5.135	EN 10270-1	1175.608	111.04	228.96	75.2 \| 94.9 \| 76.6 \| 54.1
D-379	56.3	365	6.94	EN 10270-1	1479.452	151.82	213.18	64.7 \| 86.5 \| 67.5 \| 40.0
D-399D	81	345	7.946	EN 10270-1	1562.981	148.29	196.71	60.6 \| 84.1 \| 62.8 \| 35.0
D-403	71	300	13.35	EN 10270-1	2198.788	135.3	164.7	52.1 \| 85.6 \| 50.0 \| 20.8
D-409	58	340	18.045	EN 10270-1	2752.3	187.47	152.53	47.7 \| 83.4 \| 44.4 \| 15.4
D-434	73	410	22.023	EN 10270-1	3864.709	234.51	175.49	45.3 \| 77.5 \| 45.9 \| 12.6
D-414M	63	281	27.386	EN 10270-1	2793.812	178.98	102.02	40.6 \| 78.3 \| 33.4 \| 10.1
D-433	73	285	32.594	EN 10270-1	3913.159	164.94	120.06	40.4 \| 78.7 \| 33.9 \| 8.5
D-439	60	335	44.054	EN 10270-1	4606.402	230.44	104.56	38.6 \| 80.2 \| 29.4 \| 6.3
D-496	75	300	45.519	EN 10270-1	5451.674	180.23	119.77	38.4 \| 77.6 \| 31.5 \| 6.1

Number of similar metal springs: 27

Customs tariff number: 73202081; Compression spring D-364E-16

Country of origin: DE, German; Compression spring D-364E-16
