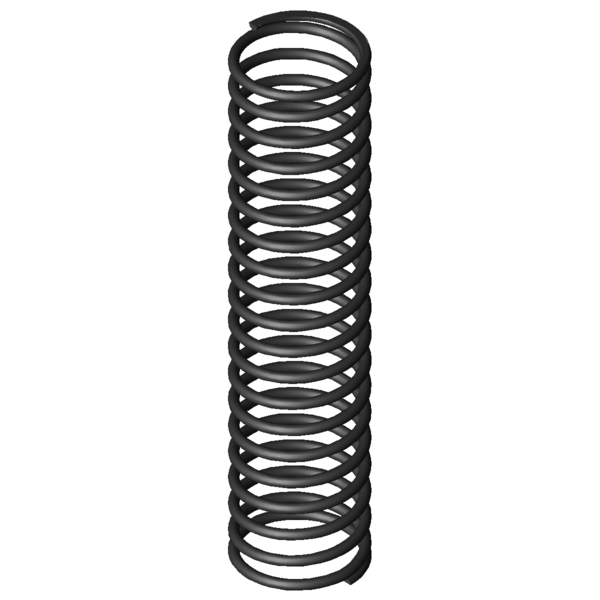

Home » Products » Compression springs » d-364r-34 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-364R-34 Spring steel Ø 5.6 x 63.4 x 296 mm Scaled prices - Compression spring D-364R-34 Quantity Single price [EUR] 1 14.5700 EUR 2 11.6100 EUR 3 7.2800 EUR 7 5.4200 EUR 17 3.8200 EUR 37 3.3100 EUR 75 3.2400 EUR 125 3.2451 EUR 175 3.2080 EUR 250 3.1837 EUR 350 3.1130 EUR Compression spring Buy Product image Compression spring D-364R-34 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-364R-34 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5.6 mm Wire diameter Di mm Inner coil diameter D 63.4 mm Mean coil diameter De 69 mm Outer coil diameter Dd 56 mm maximum diameter of mandrel Dh 71 mm minimum diameter of bush L0 296 mm unstressed spring length Lk mm buckling length Fn 320.724 N maximum force in static use Ln 145.08 mm Minimum length in static use sn 150.92 mm Maximum spring deflection in static use Fndyn 288.547 N maximum force in dynamic use Lndyn 160.22 mm Minimum length in dynamic use shdyn 135.78 mm Maximum stroke in dynamic use S 15.697 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 2.125 N/mm Spring rate Weight 794.9492 g weight of one spring Fntol 25.4 N (+/-) tolerance of maximum force in static use Fndtol 29.07 N (+/-) tolerance of maximum dynamic force Detol 1.2 mm (+/-) tolerances of outer coil diameter L0tol 11.64 mm (+/-) tolerance of unstressed spring length Price group AL - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-364R-34 Spring steel Ø 5.6 x 63.4 x 296 mm Datasheet download pdf file Metal spring characteristic Compression spring D-364R-34 Spring steel Ø 5.6 x 63.4 x 296 mm Metal spring characteristic download pdf file CAD data Compression spring D-364R-34 Spring steel Ø 5.6 x 63.4 x 296 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-364R-34 Spring steel Ø 5.6 x 63.4 x 296 mm force-path-calculation Compression spring D-364R-34 Inquiry formular Compression spring D-364R-34 Spring steel Ø 5.6 x 63.4 x 296 mm Inquiry formular Compression spring D-364R-34 Similar compression springs to Compression spring D-364R-34 Spring steel Ø 5.6 x 63.4 x 296 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-364R-34 EN 10270-1 5.6 69 296 320.724 145.08 150.92 18.5 2.125 60.4 | 84.0 | 56.4 | 40.7 VD-364R-34 1.4310 5.6 69 296 275.469 145.08 150.92 18.5 1.825 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-288X-23 48 295 0.724 EN 10270-1 170.312 59.91 235.09 55.7 | 74.3 | 58.6 | 34.1 D-289B 55 307 0.809 EN 10270-1 206.469 51.79 255.21 59.2 | 77.8 | 61.8 | 38.1 D-313U 70 379 0.955 EN 10270-1 299.531 65.32 313.68 66.1 | 82.7 | 70.8 | 44.9 D-313D 60 319 1.004 EN 10270-1 262.625 57.41 261.59 66.1 | 81.3 | 69.8 | 47.2 D-313T-01 70 312 1.067 EN 10270-1 269.705 59.28 252.72 70.1 | 88.3 | 71.9 | 50.2 D-339J-12 68 325 1.305 EN 10270-1 309.762 87.68 237.32 77.2 | 90.0 | 80.1 | 61.4 D-313T 70 233 1.649 EN 10270-1 316.372 41.18 191.82 83.1 | 82.9 | 88.7 | 77.6 D-364R-34 69 296 2.125 EN 10270-1 320.724 145.08 150.92 60.4 | 84.0 | 56.4 | 40.7 D-339Z-03 75 273 2.184 EN 10270-1 444.982 69.25 203.76 65.0 | 84.4 | 68.8 | 41.8 D-348A 55 280 2.753 EN 10270-1 425.053 125.63 154.38 83.9 | 87.9 | 86.6 | 77.2 D-364E-16 70 335 2.779 EN 10270-1 650.875 100.81 234.19 76.1 | 95.0 | 56.9 | 76.5 D-339N 50 299 2.861 EN 10270-1 579.623 96.42 202.58 74.4 | 83.9 | 64.9 | 74.3 D-342 68 275 2.996 EN 10270-1 623.505 66.87 208.13 72.1 | 82.0 | 77.0 | 57.4 D-369G 78.3 310 3.44 EN 10270-1 671.948 114.65 195.35 79.2 | 89.4 | 82.4 | 65.9 D-373A 69.3 340 3.469 EN 10270-1 630.407 158.29 181.71 73.4 | 91.8 | 67.0 | 61.3 D-364J 60 341 3.715 EN 10270-1 831.004 117.33 223.67 67.0 | 90.7 | 53.0 | 57.2 D-348 55 280 4.075 EN 10270-1 781.891 88.13 191.88 66.6 | 87.9 | 59.8 | 52.2 D-364E-14 70 220 4.087 EN 10270-1 604.612 72.07 147.93 72.6 | 90.4 | 75.5 | 52.0 D-373 69.3 340 5.135 EN 10270-1 1175.608 111.04 228.96 59.9 | 91.8 | 46.6 | 41.4 D-372 69.3 235 7.551 EN 10270-1 1173.856 79.54 155.46 59.9 | 89.3 | 62.2 | 28.1 D-389H 75 254 8.189 EN 10270-1 1289.187 96.56 157.44 78.4 | 91.7 | 79.9 | 63.7 D-403 71 300 13.35 EN 10270-1 2198.788 135.3 164.7 64.0 | 86.9 | 66.1 | 39.1 D-409 58 340 18.045 EN 10270-1 2752.3 187.47 152.53 49.1 | 80.4 | 55.3 | 11.8 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring D-364R-34 Country of origin: DE, German; Compression spring D-364R-34 Product image - Compression springs D-364R-34 QR-Code: Compression spring D-364R-34
