Compression spring D-364E-14 Spring steel Ø 5.5 x 64.5 x 220 mm

Scaled prices - Compression spring D-364E-14

Quantity	Single price [EUR]
1	15.7400 EUR
2	12.5400 EUR
3	8.4100 EUR
7	6.6100 EUR
17	5.0200 EUR
37	4.3300 EUR
75	4.2600 EUR
125	4.2510 EUR
175	4.2214 EUR
250	4.1716 EUR
350	4.0828 EUR

Compression spring Buy

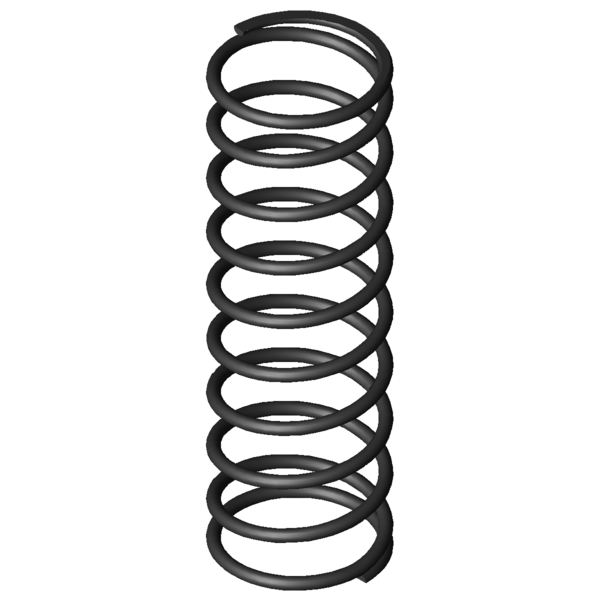

Product image Compression spring D-364E-14

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-364E-14

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	5.5	mm	Wire diameter
Di		mm	Inner coil diameter
D	64.5	mm	Mean coil diameter
De	70	mm	Outer coil diameter
Dd	57.6	mm	maximum diameter of mandrel
Dh	71.5	mm	minimum diameter of bush
L0	220	mm	unstressed spring length
Lk		mm	buckling length
Fn	604.612	N	maximum force in static use
Ln	72.07	mm	Minimum length in static use
sn	147.93	mm	Maximum spring deflection in static use
Fndyn	575.062	N	maximum force in dynamic use
Lndyn	79.3	mm	Minimum length in dynamic use
shdyn	83.8	mm	Maximum stroke in dynamic use
S	25.235	mm	pitch of spring
n	8.5	pc.	number of active coils
nt		pc.	total number of coils
R	4.087	N/mm	Spring rate
Weight	399.5716	g	weight of one spring
Fntol	35.3	N	(+/-) tolerance of maximum force in static use
Fndtol	34.8	N	(+/-) tolerance of maximum dynamic force
Detol	1.2	mm	(+/-) tolerances of outer coil diameter
L0tol	6.4	mm	(+/-) tolerance of unstressed spring length
Price group	AP	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-364E-14 Spring steel Ø 5.5 x 64.5 x 220 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-364E-14 Spring steel Ø 5.5 x 64.5 x 220 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-364E-14 Spring steel Ø 5.5 x 64.5 x 220 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-364E-14 Spring steel Ø 5.5 x 64.5 x 220 mm

force-path-calculation Compression spring D-364E-14

Inquiry formular Compression spring D-364E-14 Spring steel Ø 5.5 x 64.5 x 220 mm

Inquiry formular Compression spring D-364E-14

Similar compression springs to Compression spring D-364E-14 Spring steel Ø 5.5 x 64.5 x 220 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-364E-14	EN 10270-1	5.5	70	220	604.612	72.07	147.93	8.5	4.087	100.0 \| 100.0 \| 100.0 \| 100.0
VD-364E-14	1.4310	5.5	70	220	519.193	72.1	147.9	8.5	3.51	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-313T	70	233	1.649	EN 10270-1	316.372	41.18	191.82	64.7 \| 89.0 \| 64.7 \| 40.4
D-313S-01	70	203	1.649	EN 10270-1	266.891	41.18	161.82	65.5 \| 88.3 \| 67.8 \| 40.4
D-339G	75	224	2.168	EN 10270-1	387.277	45.34	178.66	72.5 \| 91.1 \| 73.4 \| 53.0
D-339J-04	58	210	2.182	EN 10270-1	277.7	82.75	127.25	68.7 \| 86.7 \| 66.0 \| 53.4
D-316	54	230	2.455	EN 10270-1	433.557	53.37	176.63	73.2 \| 81.8 \| 77.7 \| 60.1
D-339J-11	68	173	2.51	EN 10270-1	308.959	49.91	123.09	71.5 \| 85.9 \| 67.2 \| 61.4
D-342	68	275	2.996	EN 10270-1	623.505	66.87	208.13	82.2 \| 89.4 \| 84.0 \| 73.3
D-364R-33	69	200	3.145	EN 10270-1	309.3	101.66	98.34	77.2 \| 95.9 \| 58.8 \| 77.0
D-339Z-02	75	178	3.375	EN 10270-1	437.637	48.34	129.67	83.7 \| 88.4 \| 80.0 \| 82.6
D-366A	86.3	230	3.688	EN 10270-1	536.699	84.46	145.54	90.6 \| 88.0 \| 93.6 \| 90.2
D-347A	55	235	3.773	EN 10270-1	530.599	94.38	140.63	90.5 \| 87.7 \| 91.4 \| 92.3
D-364E-14	70	220	4.087	EN 10270-1	604.612	72.07	147.93	100.0 \| 100.0 \| 100.0 \| 100.0
D-344A-10	60	190	4.252	EN 10270-1	520.186	67.67	122.33	89.4 \| 87.7 \| 84.4 \| 96.1
D-364R-62	77	230	4.34	EN 10270-1	656.139	78.81	151.19	94.0 \| 92.7 \| 95.0 \| 94.2
D-341	68	180	4.63	EN 10270-1	616.696	46.8	133.2	90.8 \| 90.0 \| 94.0 \| 88.3
D-369E	78.3	210	5.058	EN 10270-1	647.476	82	128	87.2 \| 90.7 \| 90.0 \| 80.8
D-366	86.3	220	5.699	EN 10270-1	916.989	59.1	160.9	80.0 \| 89.5 \| 78.9 \| 71.7
D-364H	60	213	6.062	EN 10270-1	829.439	76.17	136.83	81.4 \| 94.2 \| 82.7 \| 67.4
D-372	69.3	235	7.551	EN 10270-1	1173.856	79.54	155.46	73.6 \| 93.3 \| 73.3 \| 54.1
D-389H	75	254	8.189	EN 10270-1	1289.187	96.56	157.44	68.8 \| 86.2 \| 70.4 \| 49.9
D-377A	56.3	217	9.51	EN 10270-1	977.729	114.19	102.81	65.8 \| 88.8 \| 65.7 \| 43.0
D-399C	81	220	12.619	EN 10270-1	1523.253	99.29	120.71	59.4 \| 85.1 \| 60.6 \| 32.4
D-402	71	205	19.633	EN 10270-1	2117.9	97.13	107.87	52.8 \| 86.8 \| 50.7 \| 20.8
D-408	58	230	26.706	EN 10270-1	2620.936	131.86	98.14	47.5 \| 82.4 \| 44.7 \| 15.3
D-414M-04	57	230	43.17	EN 10270-1	2936.622	161.98	68.02	40.7 \| 79.4 \| 33.3 \| 9.5
D-432	73	200	47.932	EN 10270-1	3903.573	118.56	81.44	41.5 \| 80.6 \| 35.3 \| 8.5
D-438	60	230	65.2	EN 10270-1	4421.375	162.19	67.81	38.3 \| 78.8 \| 29.8 \| 6.3

Number of similar metal springs: 26

Customs tariff number: 73202081; Compression spring D-364E-14
