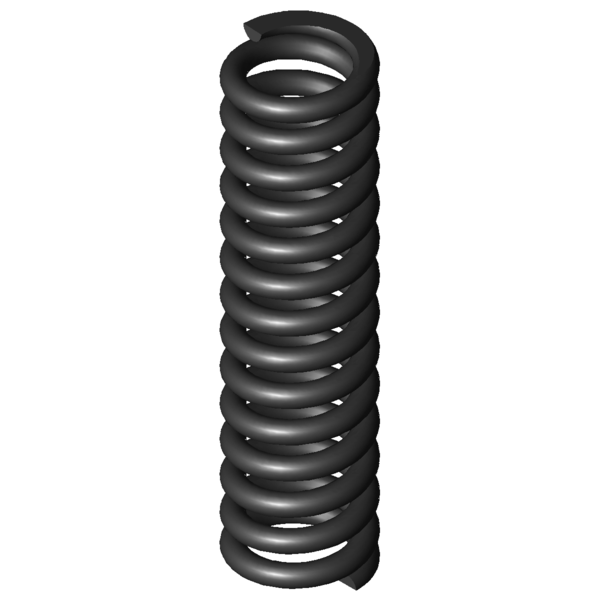

Home » Products » Compression springs » d-438 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-438 Spring steel Ø 10 x 50 x 230 mm Scaled prices - Compression spring D-438 Quantity Single price [EUR] 1 18.6200 EUR 2 14.8300 EUR 3 11.1000 EUR 7 9.4000 EUR 17 7.8300 EUR 37 6.8300 EUR 75 6.7200 EUR 125 6.7445 EUR 175 6.6582 EUR 250 6.5812 EUR 350 6.2680 EUR Compression spring Buy Product image Compression spring D-438 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-438 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 10 mm Wire diameter Di mm Inner coil diameter D 50 mm Mean coil diameter De 60 mm Outer coil diameter Dd 38 mm maximum diameter of mandrel Dh 62 mm minimum diameter of bush L0 230 mm unstressed spring length Lk mm buckling length Fn 4421.375 N maximum force in static use Ln 162.19 mm Minimum length in static use sn 67.81 mm Maximum spring deflection in static use Fndyn 3860.492 N maximum force in dynamic use Lndyn 170.79 mm Minimum length in dynamic use shdyn 28.21 mm Maximum stroke in dynamic use S 17.6 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 65.2 N/mm Spring rate Weight 1414.0286 g weight of one spring Fntol 298 N (+/-) tolerance of maximum force in static use Fndtol 289 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 3.56 mm (+/-) tolerance of unstressed spring length Price group AX - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-438 Spring steel Ø 10 x 50 x 230 mm Datasheet download pdf file Metal spring characteristic Compression spring D-438 Spring steel Ø 10 x 50 x 230 mm Metal spring characteristic download pdf file CAD data Compression spring D-438 Spring steel Ø 10 x 50 x 230 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-438 Spring steel Ø 10 x 50 x 230 mm force-path-calculation Compression spring D-438 Inquiry formular Compression spring D-438 Spring steel Ø 10 x 50 x 230 mm Inquiry formular Compression spring D-438 Similar compression springs to Compression spring D-438 Spring steel Ø 10 x 50 x 230 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-438 EN 10270-1 10 60 230 4421.375 162.19 67.81 12.5 65.2 100.0 | 100.0 | 100.0 | 100.0 VD-438 1.4310 10 60 230 3797.5 162.19 67.81 12.5 56 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-364H 60 213 6.062 EN 10270-1 829.439 76.17 136.83 42.0 | 82.5 | 34.2 | 9.3 D-378A 56.3 250 6.94 EN 10270-1 681.373 151.82 98.18 45.3 | 82.9 | 42.2 | 10.6 D-372 69.3 235 7.551 EN 10270-1 1173.856 79.54 155.46 43.0 | 82.5 | 35.1 | 11.6 D-364R-72 61 180 9.336 EN 10270-1 964.046 76.74 103.26 45.6 | 78.9 | 43.7 | 14.3 D-377A 56.3 217 9.51 EN 10270-1 977.729 114.19 102.81 47.4 | 83.7 | 44.0 | 14.6 D-378 56.3 250 10.271 EN 10270-1 1472.179 106.67 143.33 46.3 | 82.9 | 40.3 | 15.8 D-389N 50 228 19.848 EN 10270-1 1756.744 139.49 88.51 57.6 | 84.2 | 58.2 | 30.4 D-389N-05 46 236 25.772 EN 10270-1 2411.864 142.41 93.59 61.5 | 81.4 | 63.5 | 39.5 D-408 58 230 26.706 EN 10270-1 2620.936 131.86 98.14 65.8 | 92.2 | 64.2 | 41.0 D-414M 63 281 27.386 EN 10270-1 2793.812 178.98 102.02 65.3 | 89.0 | 64.8 | 42.0 D-414M-05 57 276 35.552 EN 10270-1 2956.938 192.83 83.17 72.7 | 89.4 | 74.2 | 54.5 D-414M-04 57 230 43.17 EN 10270-1 2936.622 161.98 68.02 81.4 | 95.0 | 83.1 | 66.2 D-414L 63 179 44.682 EN 10270-1 2785.164 116.67 62.33 77.9 | 87.7 | 77.5 | 68.5 D-414M-03 57 184 54.944 EN 10270-1 2905.226 131.12 52.88 81.5 | 88.3 | 71.8 | 84.3 D-438 60 230 65.2 EN 10270-1 4421.375 162.19 67.81 100.0 | 100.0 | 100.0 | 100.0 D-506 60 250 101.424 EN 10270-1 7302.517 178 72 78.7 | 94.3 | 77.4 | 64.3 D-447 50 239 102.697 EN 10270-1 4598.753 194.22 44.78 79.3 | 93.2 | 81.1 | 63.5 D-445D 55 238 149.063 EN 10270-1 6111.568 197 41 68.7 | 96.1 | 66.4 | 43.7 D-504 60 175 149.153 EN 10270-1 7010.178 128 47 66.3 | 89.0 | 66.2 | 43.7 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring D-438 Country of origin: DE, German; Compression spring D-438 Product image - Compression springs D-438 QR-Code: Compression spring D-438
