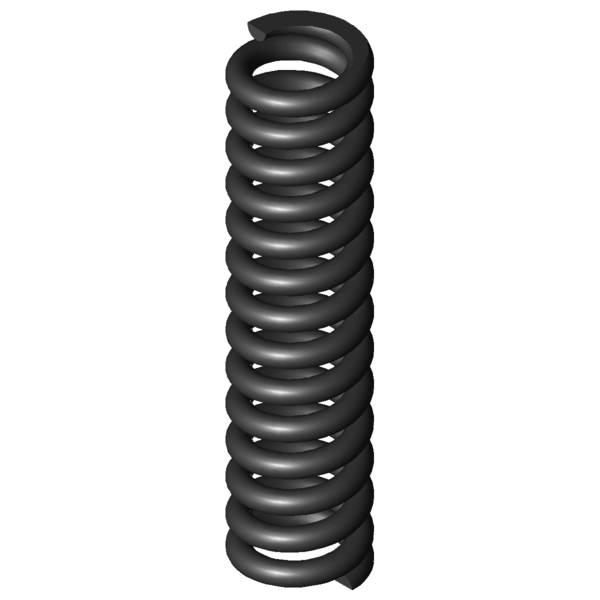

Home » Products » Compression springs » d-506 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-506 Spring steel Ø 11 x 49 x 250 mm Scaled prices - Compression spring D-506 Quantity Single price [EUR] 1 39.1400 EUR 2 31.1800 EUR 3 30.5900 EUR 7 27.6100 EUR 17 25.4600 EUR 37 24.0000 EUR 75 23.1400 EUR 125 23.0080 EUR 175 22.7957 EUR 250 22.4802 EUR 350 22.0368 EUR Compression spring Buy Product image Compression spring D-506 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-506 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 11 mm Wire diameter Di mm Inner coil diameter D 49 mm Mean coil diameter De 60 mm Outer coil diameter Dd mm maximum diameter of mandrel Dh mm minimum diameter of bush L0 250 mm unstressed spring length Lk mm buckling length Fn 7302.517 N maximum force in static use Ln 178 mm Minimum length in static use sn 72 mm Maximum spring deflection in static use Fndyn N maximum force in dynamic use Lndyn mm Minimum length in dynamic use shdyn mm Maximum stroke in dynamic use S 19.12 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 101.424 N/mm Spring rate Weight 1676.7552 g weight of one spring Fntol 460 N (+/-) tolerance of maximum force in static use Fndtol N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 3.45 mm (+/-) tolerance of unstressed spring length Price group BE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-506 Spring steel Ø 11 x 49 x 250 mm Datasheet download pdf file Metal spring characteristic Compression spring D-506 Spring steel Ø 11 x 49 x 250 mm Metal spring characteristic download pdf file CAD data Compression spring D-506 Spring steel Ø 11 x 49 x 250 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-506 Spring steel Ø 11 x 49 x 250 mm force-path-calculation Compression spring D-506 Inquiry formular Compression spring D-506 Spring steel Ø 11 x 49 x 250 mm Inquiry formular Compression spring D-506 Similar compression springs to Compression spring D-506 Spring steel Ø 11 x 49 x 250 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-506 EN 10270-1 11 60 250 7302.517 178 72 12.5 101.424 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-378A 56.3 250 6.94 EN 10270-1 681.373 151.82 98.18 44.0 | 83.7 | 41.3 | 6.8 D-372 69.3 235 7.551 EN 10270-1 1173.856 79.54 155.46 39.3 | 79.3 | 31.2 | 7.4 D-389H 75 254 8.189 EN 10270-1 1289.187 96.56 157.44 40.2 | 80.7 | 31.7 | 8.1 D-377A 56.3 217 9.51 EN 10270-1 977.729 114.19 102.81 43.5 | 79.3 | 41.7 | 9.4 D-378 56.3 250 10.271 EN 10270-1 1472.179 106.67 143.33 43.0 | 83.7 | 35.2 | 10.1 D-389NA 50 265 17.58 EN 10270-1 1921.769 155.68 109.32 48.0 | 80.4 | 46.1 | 17.3 D-389N 50 228 19.848 EN 10270-1 1756.744 139.49 88.51 50.6 | 79.4 | 52.7 | 19.6 D-389N-05 46 236 25.772 EN 10270-1 2411.864 142.41 93.59 52.9 | 78.2 | 55.0 | 25.4 D-408 58 230 26.706 EN 10270-1 2620.936 131.86 98.14 56.0 | 87.1 | 54.6 | 26.3 D-414M 63 281 27.386 EN 10270-1 2793.812 178.98 102.02 56.7 | 88.7 | 54.4 | 27.0 D-413A 48 248 35.243 EN 10270-1 2243.232 184.35 63.65 59.4 | 84.0 | 59.6 | 34.7 D-414M-05 57 276 35.552 EN 10270-1 2956.938 192.83 83.17 62.6 | 89.1 | 63.5 | 35.1 D-414M-04 57 230 43.17 EN 10270-1 2936.622 161.98 68.02 66.5 | 89.6 | 67.3 | 42.6 D-438 60 230 65.2 EN 10270-1 4421.375 162.19 67.81 78.7 | 94.3 | 77.4 | 64.3 D-506 60 250 101.424 EN 10270-1 7302.517 178 72 100.0 | 100.0 | 100.0 | 100.0 D-447 50 239 102.697 EN 10270-1 4598.753 194.22 44.78 83.8 | 89.9 | 62.6 | 98.8 D-445D 55 238 149.063 EN 10270-1 6111.568 197 41 77.0 | 92.6 | 70.3 | 68.0 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring D-506 Country of origin: DE, German; Compression spring D-506 Product image - Compression springs D-506 QR-Code: Compression spring D-506
