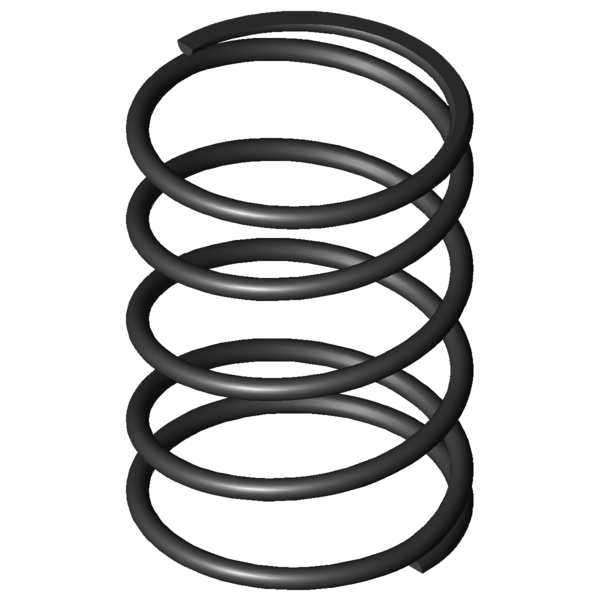

Home » Products » Compression springs » d-389e-10 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-389E-10 Spring steel Ø 7 x 98 x 145 mm Scaled prices - Compression spring D-389E-10 Quantity Single price [EUR] 1 16.3800 EUR 2 13.0500 EUR 3 9.0700 EUR 7 7.2200 EUR 17 5.7200 EUR 37 4.9500 EUR 75 4.9100 EUR 125 4.9440 EUR 175 4.8928 EUR 250 4.7033 EUR 350 4.5611 EUR Compression spring Buy Product image Compression spring D-389E-10 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-389E-10 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 7 mm Wire diameter Di mm Inner coil diameter D 98 mm Mean coil diameter De 105 mm Outer coil diameter Dd 89.3 mm maximum diameter of mandrel Dh 108.3 mm minimum diameter of bush L0 145 mm unstressed spring length Lk mm buckling length Fn 719.139 N maximum force in static use Ln 48.15 mm Minimum length in static use sn 96.85 mm Maximum spring deflection in static use Fndyn 683.127 N maximum force in dynamic use Lndyn 53 mm Minimum length in dynamic use shdyn 65 mm Maximum stroke in dynamic use S 39.429 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 7.425 N/mm Spring rate Weight 515.116 g weight of one spring Fntol 57.6 N (+/-) tolerance of maximum force in static use Fndtol 57.1 N (+/-) tolerance of maximum dynamic force Detol 1.5 mm (+/-) tolerances of outer coil diameter L0tol 6.3 mm (+/-) tolerance of unstressed spring length Price group AR - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-389E-10 Spring steel Ø 7 x 98 x 145 mm Datasheet download pdf file Metal spring characteristic Compression spring D-389E-10 Spring steel Ø 7 x 98 x 145 mm Metal spring characteristic download pdf file CAD data Compression spring D-389E-10 Spring steel Ø 7 x 98 x 145 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-389E-10 Spring steel Ø 7 x 98 x 145 mm force-path-calculation Compression spring D-389E-10 Inquiry formular Compression spring D-389E-10 Spring steel Ø 7 x 98 x 145 mm Inquiry formular Compression spring D-389E-10 Similar compression springs to Compression spring D-389E-10 Spring steel Ø 7 x 98 x 145 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-389E-10 EN 10270-1 7 105 145 719.139 48.15 96.85 3.5 7.425 100.0 | 100.0 | 100.0 | 100.0 VD-389E-10 1.4310 7 105 145 617.347 48.2 96.8 3.5 6.378 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-313S 70 145 2.592 EN 10270-1 300.349 29.12 115.88 57.4 | 74.6 | 62.7 | 34.9 D-339F 75 146 3.406 EN 10270-1 387.897 32.12 113.88 64.6 | 78.3 | 69.5 | 45.9 D-339W 85 164 3.553 EN 10270-1 454.906 35.97 128.03 65.9 | 80.3 | 69.5 | 47.9 D-364B 95 181 3.715 EN 10270-1 524.507 39.82 141.18 68.0 | 83.1 | 70.8 | 50.0 D-364R-57 90 165 4.05 EN 10270-1 433.367 58 107 72.1 | 86.4 | 75.4 | 54.5 D-364S 105 180 4.769 EN 10270-1 643.918 44.97 135.03 78.3 | 90.2 | 80.6 | 64.2 D-364E-12 70 147 6.317 EN 10270-1 609.416 50.52 96.48 86.2 | 81.3 | 92.2 | 85.1 D-364R-61 77 153 6.707 EN 10270-1 655.744 55.23 97.77 90.0 | 84.6 | 95.1 | 90.3 D-389E-10 105 145 7.425 EN 10270-1 719.139 48.15 96.85 100.0 | 100.0 | 100.0 | 100.0 D-365 86.3 145 8.956 EN 10270-1 920.734 42.19 102.81 86.6 | 90.7 | 86.2 | 82.9 D-389S 108 115 9.273 EN 10270-1 472.57 64.04 50.96 75.7 | 88.0 | 59.2 | 80.1 D-394B 98 185 10.407 EN 10270-1 1167.7 72.8 112.2 77.2 | 86.4 | 74.0 | 71.3 D-390 108 170 11.922 EN 10270-1 1390.586 53.36 116.64 73.2 | 90.0 | 67.4 | 62.3 D-389E-20 89 115 12.675 EN 10270-1 874.706 45.99 69.01 74.4 | 88.0 | 76.7 | 58.6 D-414D-20 120 170 13.964 EN 10270-1 1538.242 59.84 110.16 68.0 | 83.5 | 67.3 | 53.2 D-389G 75 153 14.144 EN 10270-1 1289.931 61.8 91.2 72.1 | 88.7 | 75.0 | 52.5 D-394A 98 125 16.354 EN 10270-1 1191.4 52.15 72.85 67.4 | 89.0 | 67.8 | 45.4 D-399B 81 147 19.503 EN 10270-1 1503.751 69.9 77.1 63.2 | 87.8 | 63.7 | 38.1 D-395 88 125 23.286 EN 10270-1 1723.143 51 74 58.9 | 85.8 | 59.1 | 31.9 D-414E 100 134 25.342 EN 10270-1 1939.175 57.48 76.52 58.6 | 88.5 | 58.0 | 29.3 D-470 125 160 28.764 EN 10270-1 2572.902 70.55 89.45 55.1 | 79.4 | 60.2 | 25.8 D-420 110 150 29.107 EN 10270-1 2510.491 63.75 86.25 57.2 | 87.4 | 58.9 | 25.5 D-401 71 140 30.342 EN 10270-1 2169.66 68.49 71.51 54.0 | 83.9 | 53.5 | 24.5 D-426 90 175 36.177 EN 10270-1 3227.73 85.78 89.22 52.4 | 79.5 | 57.2 | 20.5 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring D-389E-10 Country of origin: DE, German; Compression spring D-389E-10 Product image - Compression springs D-389E-10 QR-Code: Compression spring D-389E-10
