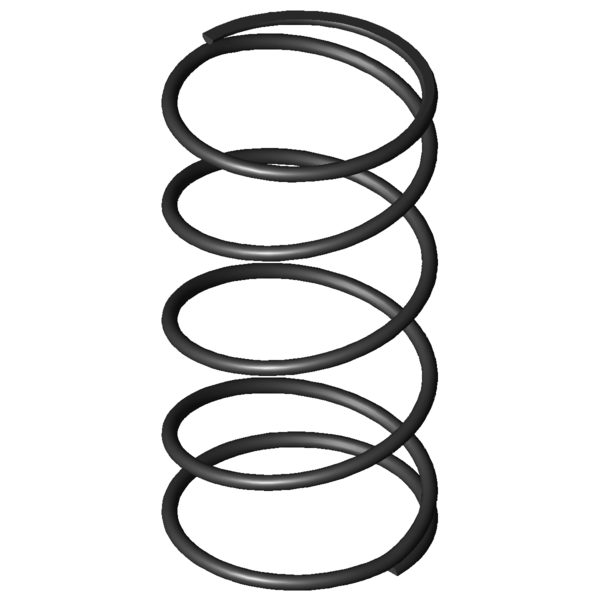

Home » Products » Compression springs » d-364b Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-364B Spring steel Ø 5.5 x 89.5 x 181 mm Scaled prices - Compression spring D-364B Quantity Single price [EUR] 1 14.4000 EUR 2 11.4700 EUR 3 7.0900 EUR 7 5.2300 EUR 17 3.6600 EUR 37 3.0100 EUR 75 2.9700 EUR 125 2.9376 EUR 175 2.9180 EUR 250 2.8813 EUR 350 2.8095 EUR Compression spring Buy Product image Compression spring D-364B Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-364B Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5.5 mm Wire diameter Di mm Inner coil diameter D 89.5 mm Mean coil diameter De 95 mm Outer coil diameter Dd 81.8 mm maximum diameter of mandrel Dh 99.7 mm minimum diameter of bush L0 181 mm unstressed spring length Lk mm buckling length Fn 524.507 N maximum force in static use Ln 39.82 mm Minimum length in static use sn 141.18 mm Maximum spring deflection in static use Fndyn 506.715 N maximum force in dynamic use Lndyn 44.61 mm Minimum length in dynamic use shdyn 60.09 mm Maximum stroke in dynamic use S 50.143 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 3.715 N/mm Spring rate Weight 290.4232 g weight of one spring Fntol 37.78 N (+/-) tolerance of maximum force in static use Fndtol 37.51 N (+/-) tolerance of maximum dynamic force Detol 1.7 mm (+/-) tolerances of outer coil diameter L0tol 8.05 mm (+/-) tolerance of unstressed spring length Price group AK - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-364B Spring steel Ø 5.5 x 89.5 x 181 mm Datasheet download pdf file Metal spring characteristic Compression spring D-364B Spring steel Ø 5.5 x 89.5 x 181 mm Metal spring characteristic download pdf file CAD data Compression spring D-364B Spring steel Ø 5.5 x 89.5 x 181 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-364B Spring steel Ø 5.5 x 89.5 x 181 mm force-path-calculation Compression spring D-364B Inquiry formular Compression spring D-364B Spring steel Ø 5.5 x 89.5 x 181 mm Inquiry formular Compression spring D-364B Similar compression springs to Compression spring D-364B Spring steel Ø 5.5 x 89.5 x 181 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-364B EN 10270-1 5.5 95 181 524.507 39.82 141.18 3.5 3.715 100.0 | 100.0 | 100.0 | 100.0 VD-364B 1.4310 5.5 95 181 450.496 39.82 141.18 3.5 3.191 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-339J-11 68 173 2.51 EN 10270-1 308.959 49.91 123.09 74.5 | 83.0 | 73.0 | 67.6 D-364R-58 90 210 2.621 EN 10270-1 332.592 83.09 126.91 79.4 | 90.9 | 76.7 | 70.5 D-364R-50 115 196 2.913 EN 10270-1 438.403 45.5 150.5 85.3 | 88.9 | 88.7 | 78.4 D-339Z-02 75 178 3.375 EN 10270-1 437.637 48.34 129.67 89.3 | 89.4 | 87.6 | 90.8 D-339W 85 164 3.553 EN 10270-1 454.906 35.97 128.03 91.6 | 90.3 | 88.7 | 95.6 D-364B 95 181 3.715 EN 10270-1 524.507 39.82 141.18 100.0 | 100.0 | 100.0 | 100.0 D-364R-57 90 165 4.05 EN 10270-1 433.367 58 107 87.8 | 92.5 | 79.2 | 91.7 D-364E-06 80 165 4.099 EN 10270-1 460.737 52.6 112.4 88.7 | 91.8 | 83.7 | 90.6 D-341 68 180 4.63 EN 10270-1 616.696 46.8 133.2 40.9 | 73.7 | 39.0 | 10.1 D-364S 105 180 4.769 EN 10270-1 643.918 44.97 135.03 86.3 | 92.4 | 88.5 | 77.9 D-369E 78.3 210 5.058 EN 10270-1 647.476 82 128 45.2 | 83.8 | 40.6 | 11.1 D-366 86.3 220 5.699 EN 10270-1 916.989 59.1 160.9 44.6 | 83.7 | 37.7 | 12.5 D-389E-10 105 145 7.425 EN 10270-1 719.139 48.15 96.85 68.0 | 83.1 | 70.8 | 50.0 D-369D 78.3 165 7.818 EN 10270-1 840.385 57.5 107.5 48.7 | 79.6 | 49.3 | 17.1 D-389E-22 89 190 8.066 EN 10270-1 1014.132 64.27 125.73 50.1 | 86.5 | 46.1 | 17.6 D-365 86.3 145 8.956 EN 10270-1 920.734 42.19 102.81 64.2 | 86.1 | 64.9 | 41.5 D-394B 98 185 10.407 EN 10270-1 1167.7 72.8 112.2 53.6 | 86.1 | 52.1 | 22.8 D-390 108 170 11.922 EN 10270-1 1390.586 53.36 116.64 58.3 | 83.5 | 60.2 | 31.2 D-414D-20 120 170 13.964 EN 10270-1 1538.242 59.84 110.16 53.6 | 78.1 | 56.1 | 26.6 D-396 88 180 14.818 EN 10270-1 1615.182 71 109 60.0 | 88.5 | 59.1 | 32.4 D-414F 100 200 16.127 EN 10270-1 1934.568 80.04 119.96 62.2 | 91.3 | 60.0 | 35.3 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring D-364B Country of origin: DE, German; Compression spring D-364B Product image - Compression springs D-364B QR-Code: Compression spring D-364B
