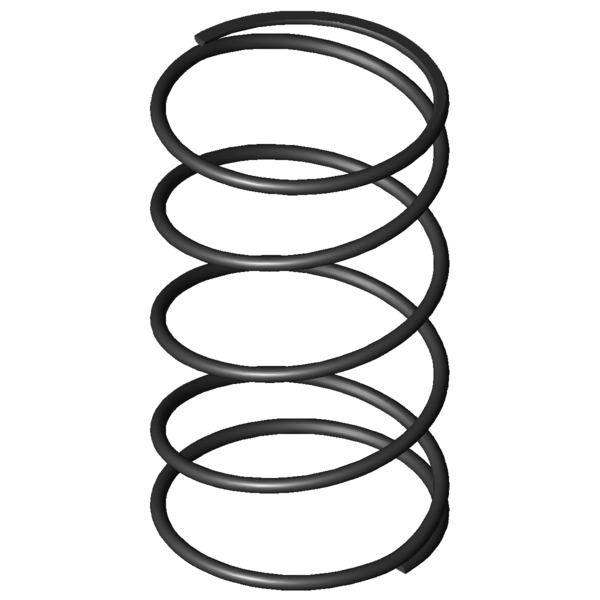

Home » Products » Compression springs » d-364r-50 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-364R-50 Spring steel Ø 6 x 109 x 196 mm Scaled prices - Compression spring D-364R-50 Quantity Single price [EUR] 1 16.3800 EUR 2 13.0500 EUR 3 9.0700 EUR 7 7.2200 EUR 17 5.7200 EUR 37 4.9500 EUR 75 4.9100 EUR 125 4.9440 EUR 175 4.8928 EUR 250 4.7033 EUR 350 4.5611 EUR Compression spring Buy Product image Compression spring D-364R-50 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-364R-50 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 6 mm Wire diameter Di mm Inner coil diameter D 109 mm Mean coil diameter De 115 mm Outer coil diameter Dd 100 mm maximum diameter of mandrel Dh 121 mm minimum diameter of bush L0 196 mm unstressed spring length Lk mm buckling length Fn 438.403 N maximum force in static use Ln 45.5 mm Minimum length in static use sn 150.5 mm Maximum spring deflection in static use Fndyn 420.185 N maximum force in dynamic use Lndyn 51.75 mm Minimum length in dynamic use shdyn 97.18 mm Maximum stroke in dynamic use S 54.286 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 2.913 N/mm Spring rate Weight 420.9319 g weight of one spring Fntol 40.8 N (+/-) tolerance of maximum force in static use Fndtol 39.44 N (+/-) tolerance of maximum dynamic force Detol 2.2 mm (+/-) tolerances of outer coil diameter L0tol 11.38 mm (+/-) tolerance of unstressed spring length Price group AR - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-364R-50 Spring steel Ø 6 x 109 x 196 mm Datasheet download pdf file Metal spring characteristic Compression spring D-364R-50 Spring steel Ø 6 x 109 x 196 mm Metal spring characteristic download pdf file CAD data Compression spring D-364R-50 Spring steel Ø 6 x 109 x 196 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-364R-50 Spring steel Ø 6 x 109 x 196 mm force-path-calculation Compression spring D-364R-50 Inquiry formular Compression spring D-364R-50 Spring steel Ø 6 x 109 x 196 mm Inquiry formular Compression spring D-364R-50 Similar compression springs to Compression spring D-364R-50 Spring steel Ø 6 x 109 x 196 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-364R-50 EN 10270-1 6 115 196 438.403 45.5 150.5 3.5 2.913 100.0 | 100.0 | 100.0 | 100.0 VD-364R-50 1.4310 6 115 196 376.542 45.5 150.5 3.5 2.502 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-364R-58 90 210 2.621 EN 10270-1 332.592 83.09 126.91 86.9 | 90.5 | 80.1 | 90.0 D-364R-50 115 196 2.913 EN 10270-1 438.403 45.5 150.5 100.0 | 100.0 | 100.0 | 100.0 D-364B 95 181 3.715 EN 10270-1 524.507 39.82 141.18 85.3 | 88.9 | 88.7 | 78.4 D-364R-57 90 165 4.05 EN 10270-1 433.367 58 107 81.5 | 87.5 | 85.0 | 71.9 D-389E-12 105 230 4.725 EN 10270-1 767.039 67.67 162.33 74.7 | 87.4 | 74.9 | 61.6 D-364S 105 180 4.769 EN 10270-1 643.918 44.97 135.03 77.6 | 92.8 | 78.9 | 61.1 D-389B 120 216 4.843 EN 10270-1 801.464 50.53 165.47 74.6 | 90.8 | 72.8 | 60.1 D-366 86.3 220 5.699 EN 10270-1 916.989 59.1 160.9 69.4 | 86.5 | 70.7 | 51.1 D-389E-10 105 145 7.425 EN 10270-1 719.139 48.15 96.85 61.9 | 83.7 | 62.7 | 39.2 D-389E-22 89 190 8.066 EN 10270-1 1014.132 64.27 125.73 62.1 | 86.7 | 63.4 | 36.1 D-414D-22 120 255 8.886 EN 10270-1 1521.815 83.74 171.26 57.0 | 79.8 | 58.3 | 32.8 D-414D-10 135 185 9.547 EN 10270-1 1175.116 61.91 123.09 57.4 | 82.1 | 59.5 | 30.5 D-394B 98 185 10.407 EN 10270-1 1167.7 72.8 112.2 56.3 | 84.9 | 56.0 | 28.0 D-390 108 170 11.922 EN 10270-1 1390.586 53.36 116.64 54.7 | 85.2 | 54.5 | 24.4 D-414D-20 120 170 13.964 EN 10270-1 1538.242 59.84 110.16 51.6 | 83.1 | 50.8 | 20.9 D-396 88 180 14.818 EN 10270-1 1615.182 71 109 50.2 | 81.1 | 49.8 | 19.7 D-415 135 205 14.903 EN 10270-1 2061.019 66.7 138.3 52.1 | 80.3 | 56.6 | 19.5 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring D-364R-50 Country of origin: DE, German; Compression spring D-364R-50 Product image - Compression springs D-364R-50 QR-Code: Compression spring D-364R-50
