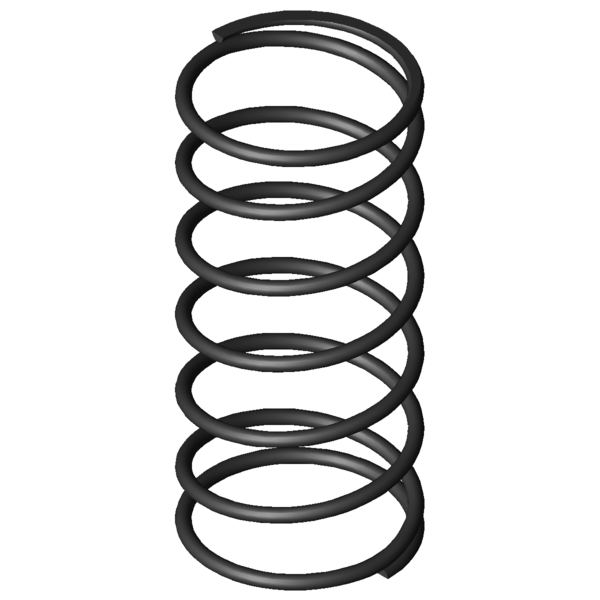

Home » Products » Compression springs » d-389e-12 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-389E-12 Spring steel Ø 7 x 98 x 230 mm Scaled prices - Compression spring D-389E-12 Quantity Single price [EUR] 1 17.2900 EUR 2 13.7700 EUR 3 10.0900 EUR 7 8.3300 EUR 17 7.1500 EUR 37 6.1700 EUR 75 6.0800 EUR 125 6.0685 EUR 175 6.0249 EUR 250 5.8410 EUR 350 5.6505 EUR Compression spring Buy Product image Compression spring D-389E-12 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-389E-12 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 7 mm Wire diameter Di mm Inner coil diameter D 98 mm Mean coil diameter De 105 mm Outer coil diameter Dd 89.3 mm maximum diameter of mandrel Dh 108.3 mm minimum diameter of bush L0 230 mm unstressed spring length Lk mm buckling length Fn 767.039 N maximum force in static use Ln 67.67 mm Minimum length in static use sn 162.33 mm Maximum spring deflection in static use Fndyn 730.986 N maximum force in dynamic use Lndyn 75.3 mm Minimum length in dynamic use shdyn 98.1 mm Maximum stroke in dynamic use S 40.545 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 4.725 N/mm Spring rate Weight 702.4309 g weight of one spring Fntol 52.6 N (+/-) tolerance of maximum force in static use Fndtol 52.1 N (+/-) tolerance of maximum dynamic force Detol 1.5 mm (+/-) tolerances of outer coil diameter L0tol 8.7 mm (+/-) tolerance of unstressed spring length Price group AU - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-389E-12 Spring steel Ø 7 x 98 x 230 mm Datasheet download pdf file Metal spring characteristic Compression spring D-389E-12 Spring steel Ø 7 x 98 x 230 mm Metal spring characteristic download pdf file CAD data Compression spring D-389E-12 Spring steel Ø 7 x 98 x 230 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-389E-12 Spring steel Ø 7 x 98 x 230 mm force-path-calculation Compression spring D-389E-12 Inquiry formular Compression spring D-389E-12 Spring steel Ø 7 x 98 x 230 mm Inquiry formular Compression spring D-389E-12 Similar compression springs to Compression spring D-389E-12 Spring steel Ø 7 x 98 x 230 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-389E-12 EN 10270-1 7 105 230 767.039 67.67 162.33 5.5 4.725 100.0 | 100.0 | 100.0 | 100.0 VD-389E-12 1.4310 7 105 230 658.685 67.7 162.3 5.5 4.058 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-339G 75 224 2.168 EN 10270-1 387.277 45.34 178.66 64.8 | 77.7 | 70.7 | 45.9 D-339X 85 252 2.261 EN 10270-1 454.906 50.81 201.19 66.4 | 81.2 | 70.0 | 47.9 D-364C 95 278 2.364 EN 10270-1 524.169 56.29 221.71 68.2 | 83.9 | 70.8 | 50.0 D-364R-58 90 210 2.621 EN 10270-1 332.592 83.09 126.91 67.9 | 87.6 | 60.8 | 55.5 D-364R-50 115 196 2.913 EN 10270-1 438.403 45.5 150.5 74.7 | 87.4 | 74.9 | 61.6 D-364T 105 291 3.035 EN 10270-1 690.479 63.47 227.53 78.2 | 89.7 | 80.7 | 64.2 D-366A 86.3 230 3.688 EN 10270-1 536.699 84.46 145.54 82.9 | 90.7 | 79.8 | 78.0 D-364B 95 181 3.715 EN 10270-1 524.507 39.82 141.18 79.6 | 82.6 | 77.7 | 78.6 D-364R-62 77 230 4.34 EN 10270-1 656.139 78.81 151.19 89.2 | 86.3 | 89.3 | 91.8 D-389E-12 105 230 4.725 EN 10270-1 767.039 67.67 162.33 100.0 | 100.0 | 100.0 | 100.0 D-364S 105 180 4.769 EN 10270-1 643.918 44.97 135.03 90.7 | 89.4 | 83.6 | 99.1 D-389B 120 216 4.843 EN 10270-1 801.464 50.53 165.47 96.1 | 93.8 | 96.9 | 97.6 D-369E 78.3 210 5.058 EN 10270-1 647.476 82 128 86.8 | 85.3 | 81.6 | 93.4 D-366 86.3 220 5.699 EN 10270-1 916.989 59.1 160.9 87.9 | 89.3 | 91.4 | 82.9 D-394C 98 285 6.734 EN 10270-1 1199.3 106.9 178.1 78.3 | 87.2 | 77.6 | 70.2 D-391 108 260 7.587 EN 10270-1 1405.759 74.71 185.29 74.8 | 91.1 | 71.1 | 62.3 D-389E-22 89 190 8.066 EN 10270-1 1014.132 64.27 125.73 74.7 | 89.1 | 76.5 | 58.6 D-414D-22 120 255 8.886 EN 10270-1 1521.815 83.74 171.26 70.3 | 85.2 | 72.6 | 53.2 D-394B 98 185 10.407 EN 10270-1 1167.7 72.8 112.2 66.6 | 87.1 | 67.4 | 45.4 D-390 108 170 11.922 EN 10270-1 1390.586 53.36 116.64 63.1 | 86.2 | 63.5 | 39.6 D-399C 81 220 12.619 EN 10270-1 1523.253 99.29 120.71 62.2 | 86.8 | 62.4 | 37.4 D-414F 100 200 16.127 EN 10270-1 1934.568 80.04 119.96 57.6 | 86.7 | 56.8 | 29.3 D-472 125 250 18.305 EN 10270-1 2776.868 98.3 151.7 55.4 | 79.9 | 60.5 | 25.8 D-421 110 230 18.523 EN 10270-1 2616.335 88.75 141.25 57.4 | 88.5 | 58.2 | 25.5 D-426A 90 230 20.945 EN 10270-1 2018.65 133.62 96.38 52.2 | 85.2 | 48.7 | 22.6 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring D-389E-12 Country of origin: DE, German; Compression spring D-389E-12 Product image - Compression springs D-389E-12 QR-Code: Compression spring D-389E-12
