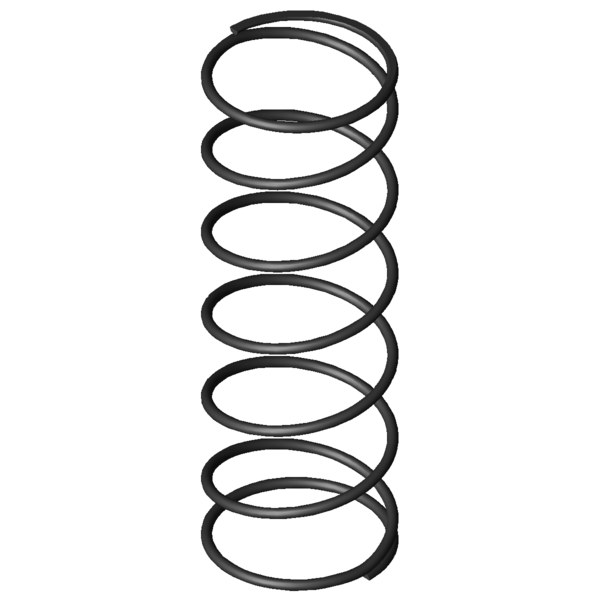

Home » Products » Compression springs » d-364c Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-364C Spring steel Ø 5.5 x 89.5 x 278 mm Scaled prices - Compression spring D-364C Quantity Single price [EUR] 1 14.5700 EUR 2 11.6100 EUR 3 7.2800 EUR 7 5.4200 EUR 17 3.8200 EUR 37 3.3100 EUR 75 3.2400 EUR 125 3.2451 EUR 175 3.2080 EUR 250 3.1837 EUR 350 3.1130 EUR Compression spring Buy Product image Compression spring D-364C Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-364C Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5.5 mm Wire diameter Di mm Inner coil diameter D 89.5 mm Mean coil diameter De 95 mm Outer coil diameter Dd 81.8 mm maximum diameter of mandrel Dh 99.7 mm minimum diameter of bush L0 278 mm unstressed spring length Lk mm buckling length Fn 524.169 N maximum force in static use Ln 56.29 mm Minimum length in static use sn 221.71 mm Maximum spring deflection in static use Fndyn 506.391 N maximum force in dynamic use Lndyn 63.81 mm Minimum length in dynamic use shdyn 94.49 mm Maximum stroke in dynamic use S 49.545 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 2.364 N/mm Spring rate Weight 396.0316 g weight of one spring Fntol 34.13 N (+/-) tolerance of maximum force in static use Fndtol 33.87 N (+/-) tolerance of maximum dynamic force Detol 1.7 mm (+/-) tolerances of outer coil diameter L0tol 11.11 mm (+/-) tolerance of unstressed spring length Price group AL - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-364C Spring steel Ø 5.5 x 89.5 x 278 mm Datasheet download pdf file Metal spring characteristic Compression spring D-364C Spring steel Ø 5.5 x 89.5 x 278 mm Metal spring characteristic download pdf file CAD data Compression spring D-364C Spring steel Ø 5.5 x 89.5 x 278 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-364C Spring steel Ø 5.5 x 89.5 x 278 mm force-path-calculation Compression spring D-364C Inquiry formular Compression spring D-364C Spring steel Ø 5.5 x 89.5 x 278 mm Inquiry formular Compression spring D-364C Similar compression springs to Compression spring D-364C Spring steel Ø 5.5 x 89.5 x 278 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-364C EN 10270-1 5.5 95 278 524.169 56.29 221.71 5.5 2.364 100.0 | 100.0 | 100.0 | 100.0 VD-364C 1.4310 5.5 95 278 450.206 56.29 221.71 5.5 2.031 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-364R-51 115 300 1.854 EN 10270-1 436.285 64.64 235.36 85.4 | 89.0 | 88.7 | 78.4 D-364R-34 69 296 2.125 EN 10270-1 320.724 145.08 150.92 80.9 | 88.3 | 64.6 | 89.9 D-339Z-03 75 273 2.184 EN 10270-1 444.982 69.25 203.76 90.0 | 89.4 | 88.4 | 92.4 D-339X 85 252 2.261 EN 10270-1 454.906 50.81 201.19 91.6 | 90.3 | 88.8 | 95.6 D-364C 95 278 2.364 EN 10270-1 524.169 56.29 221.71 100.0 | 100.0 | 100.0 | 100.0 D-364R-58 90 210 2.621 EN 10270-1 332.592 83.09 126.91 79.3 | 87.3 | 60.3 | 90.2 D-342 68 275 2.996 EN 10270-1 623.505 66.87 208.13 85.0 | 87.1 | 89.0 | 78.9 D-364T 105 291 3.035 EN 10270-1 690.479 63.47 227.53 85.2 | 91.1 | 86.7 | 77.9 D-369G 78.3 310 3.44 EN 10270-1 671.948 114.65 195.35 79.4 | 86.5 | 83.1 | 68.7 D-366A 86.3 230 3.688 EN 10270-1 536.699 84.46 145.54 77.6 | 87.0 | 81.7 | 64.1 D-389E-12 105 230 4.725 EN 10270-1 767.039 67.67 162.33 68.2 | 83.9 | 70.8 | 50.0 D-389E-24 89 280 5.219 EN 10270-1 982.765 91.7 188.3 68.3 | 90.5 | 69.1 | 45.3 D-366 86.3 220 5.699 EN 10270-1 916.989 59.1 160.9 64.0 | 85.8 | 64.9 | 41.5 D-394C 98 285 6.734 EN 10270-1 1199.3 106.9 178.1 61.6 | 87.7 | 62.0 | 35.1 D-391 108 260 7.587 EN 10270-1 1405.759 74.71 185.29 58.3 | 83.4 | 60.4 | 31.2 D-389H 75 254 8.189 EN 10270-1 1289.187 96.56 157.44 55.9 | 83.0 | 55.8 | 28.9 D-414D-22 120 255 8.886 EN 10270-1 1521.815 83.74 171.26 53.3 | 77.3 | 55.8 | 26.6 D-414G 100 332 9.337 EN 10270-1 1931.173 125.16 206.84 55.2 | 79.9 | 60.2 | 25.3 D-397 88 285 9.588 EN 10270-1 1764.235 101 184 55.8 | 86.3 | 56.4 | 24.7 D-403 71 300 13.35 EN 10270-1 2198.788 135.3 164.7 48.5 | 78.7 | 49.1 | 17.7 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring D-364C Country of origin: DE, German; Compression spring D-364C Product image - Compression springs D-364C QR-Code: Compression spring D-364C
