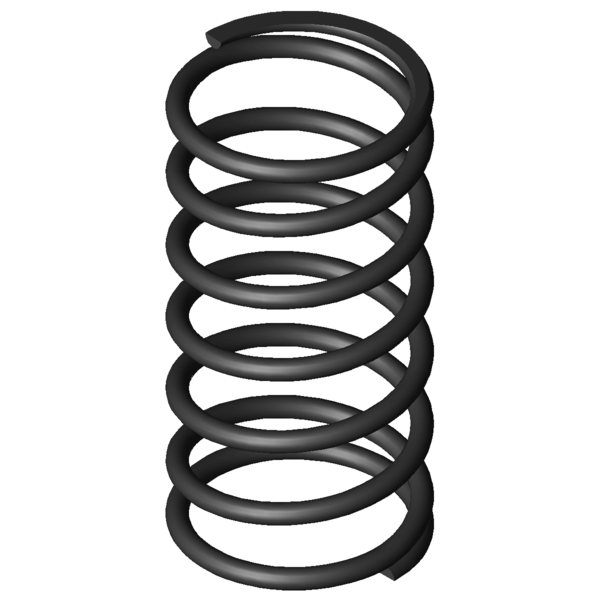

Home » Products » Compression springs » d-472 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-472 Spring steel Ø 11 x 114 x 250 mm Scaled prices - Compression spring D-472 Quantity Single price [EUR] 1 39.1400 EUR 2 31.1800 EUR 3 30.5900 EUR 7 27.6100 EUR 17 25.4600 EUR 37 24.0000 EUR 75 23.1400 EUR 125 23.0080 EUR 175 22.7957 EUR 250 22.4802 EUR 350 22.0368 EUR Compression spring Buy Product image Compression spring D-472 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-472 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 11 mm Wire diameter Di mm Inner coil diameter D 114 mm Mean coil diameter De 125 mm Outer coil diameter Dd mm maximum diameter of mandrel Dh mm minimum diameter of bush L0 250 mm unstressed spring length Lk mm buckling length Fn 2776.868 N maximum force in static use Ln 98.3 mm Minimum length in static use sn 151.7 mm Maximum spring deflection in static use Fndyn N maximum force in dynamic use Lndyn mm Minimum length in dynamic use shdyn mm Maximum stroke in dynamic use S 43.455 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 18.305 N/mm Spring rate Weight 2017.7701 g weight of one spring Fntol 141 N (+/-) tolerance of maximum force in static use Fndtol N (+/-) tolerance of maximum dynamic force Detol 1.9 mm (+/-) tolerances of outer coil diameter L0tol 5.46 mm (+/-) tolerance of unstressed spring length Price group BE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-472 Spring steel Ø 11 x 114 x 250 mm Datasheet download pdf file Metal spring characteristic Compression spring D-472 Spring steel Ø 11 x 114 x 250 mm Metal spring characteristic download pdf file CAD data Compression spring D-472 Spring steel Ø 11 x 114 x 250 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-472 Spring steel Ø 11 x 114 x 250 mm force-path-calculation Compression spring D-472 Inquiry formular Compression spring D-472 Spring steel Ø 11 x 114 x 250 mm Inquiry formular Compression spring D-472 Similar compression springs to Compression spring D-472 Spring steel Ø 11 x 114 x 250 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-472 EN 10270-1 11 125 250 2776.868 98.3 151.7 5.5 18.305 78.6 | 88.9 | 82.1 | 64.7 Number of similar metal springs: 1 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-366A 86.3 230 3.688 EN 10270-1 536.699 84.46 145.54 50.2 | 72.8 | 57.6 | 20.1 D-389E-12 105 230 4.725 EN 10270-1 767.039 67.67 162.33 73.7 | 79.4 | 72.4 | 69.4 D-389B 120 216 4.843 EN 10270-1 801.464 50.53 165.47 75.5 | 80.9 | 74.6 | 71.1 D-414D-12 135 280 6.075 EN 10270-1 1172.521 87 193 65.5 | 83.0 | 62.1 | 51.3 D-394C 98 285 6.734 EN 10270-1 1199.3 106.9 178.1 91.1 | 81.1 | 93.3 | 98.8 D-414A 150 254 6.813 EN 10270-1 1292.708 64.25 189.75 100.0 | 100.0 | 100.0 | 100.0 D-391 108 260 7.587 EN 10270-1 1405.759 74.71 185.29 90.3 | 86.2 | 94.8 | 89.8 D-414D-22 120 255 8.886 EN 10270-1 1521.815 83.74 171.26 73.6 | 81.9 | 63.8 | 75.0 D-416 135 315 9.484 EN 10270-1 2101.663 93.39 221.61 84.7 | 89.2 | 84.9 | 80.1 D-414D-10 135 185 9.547 EN 10270-1 1175.116 61.91 123.09 79.0 | 87.6 | 77.9 | 71.4 D-414D-20 120 170 13.964 EN 10270-1 1538.242 59.84 110.16 86.0 | 87.3 | 77.1 | 93.7 D-415 135 205 14.903 EN 10270-1 2061.019 66.7 138.3 66.8 | 86.9 | 67.8 | 45.7 D-460 150 210 15.868 EN 10270-1 2164.868 73.57 136.43 65.6 | 88.2 | 65.8 | 42.9 D-414F 100 200 16.127 EN 10270-1 1934.568 80.04 119.96 90.0 | 87.2 | 90.3 | 92.4 D-472 125 250 18.305 EN 10270-1 2776.868 98.3 151.7 78.6 | 88.9 | 82.1 | 64.7 D-421 110 230 18.523 EN 10270-1 2616.335 88.75 141.25 61.1 | 84.6 | 61.9 | 36.8 D-520 135 280 20.64 EN 10270-1 3570.736 107 173 73.2 | 86.3 | 75.8 | 57.4 D-426A 90 230 20.945 EN 10270-1 2018.65 133.62 96.38 56.7 | 80.2 | 57.4 | 32.5 D-427 90 255 23.409 EN 10270-1 3121.326 121.66 133.34 56.0 | 83.2 | 55.8 | 29.1 D-484 100 290 24.891 EN 10270-1 3882.284 134.03 155.97 62.0 | 85.7 | 62.3 | 38.1 D-532 110 300 26.406 EN 10270-1 4055.782 146.4 153.6 66.1 | 86.6 | 67.0 | 44.9 D-470 125 160 28.764 EN 10270-1 2572.902 70.55 89.45 70.5 | 87.2 | 72.4 | 51.8 D-518 135 180 32.435 EN 10270-1 3346.642 76.82 103.18 68.1 | 90.4 | 68.1 | 45.9 D-482 100 200 38.469 EN 10270-1 4039.196 95 105 63.2 | 87.5 | 63.5 | 38.7 D-530 110 215 40.809 EN 10270-1 4562.289 103.2 111.8 62.1 | 86.7 | 63.0 | 36.5 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring D-472 Country of origin: DE, German; Compression spring D-472 Product image - Compression springs D-472 QR-Code: Compression spring D-472
